B112C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> B112C

B112C: DescriptionStrip Terminal Block, 50A, 2 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size197KB，5 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

B112C Overview

Strip Terminal Block, 50A, 2 Row(s), 1 Deck(s)

B112C Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PHENOLIC, 94V-1
Fastening method	SCREW
Manufacturer's serial number	B100
Number of layers	1
Rows	2
Number of channels	12
Rated current	50 A
Rated voltage	600 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	8 AWG

Preview

Download Datasheet

View All

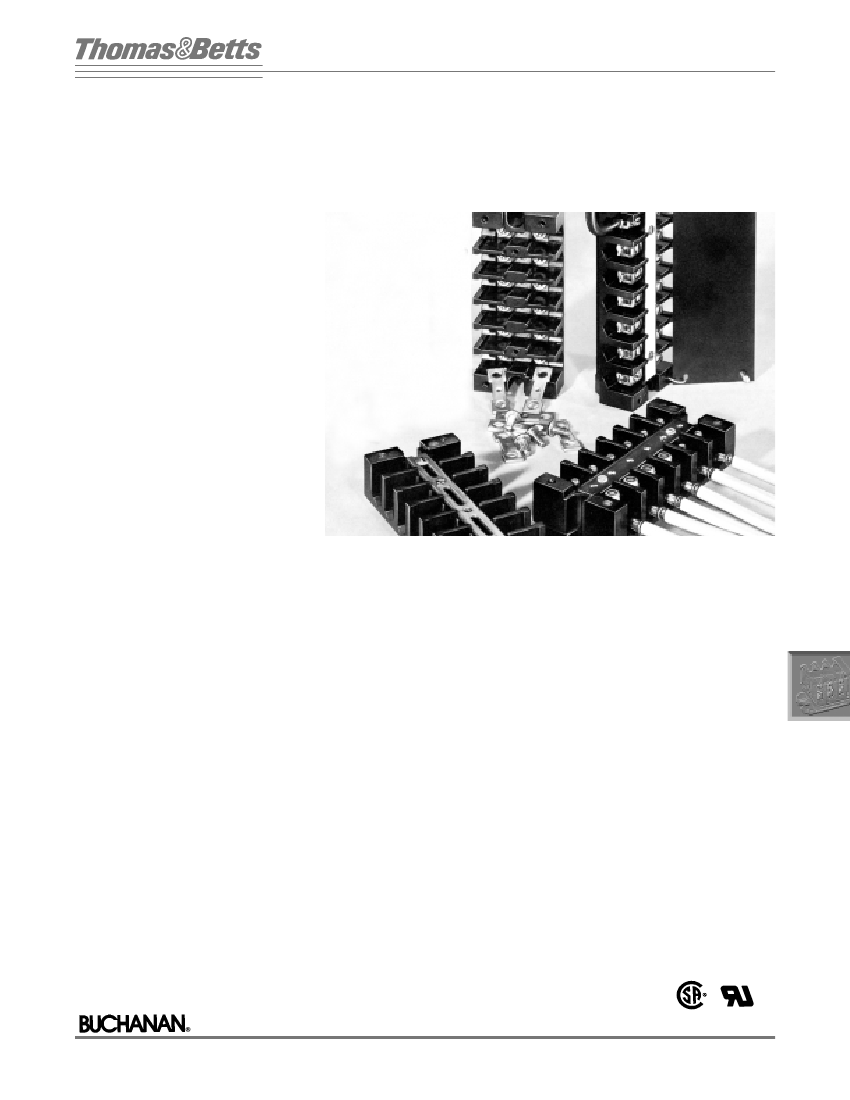

NEMA Terminal Blocks

One Piece Blocks

ESCRIPTION

PPLICATION

Traditionally, these rugged One Piece

Blocks are the standard means of

connection for heavy industrial

applications like rail transport, utility,

and traffic control industries. Ideal for

dirty

and

vibration

prone

environments.

ONE PIECE PHENOLIC

BLOCKS

ESIGN

DVANTAGES

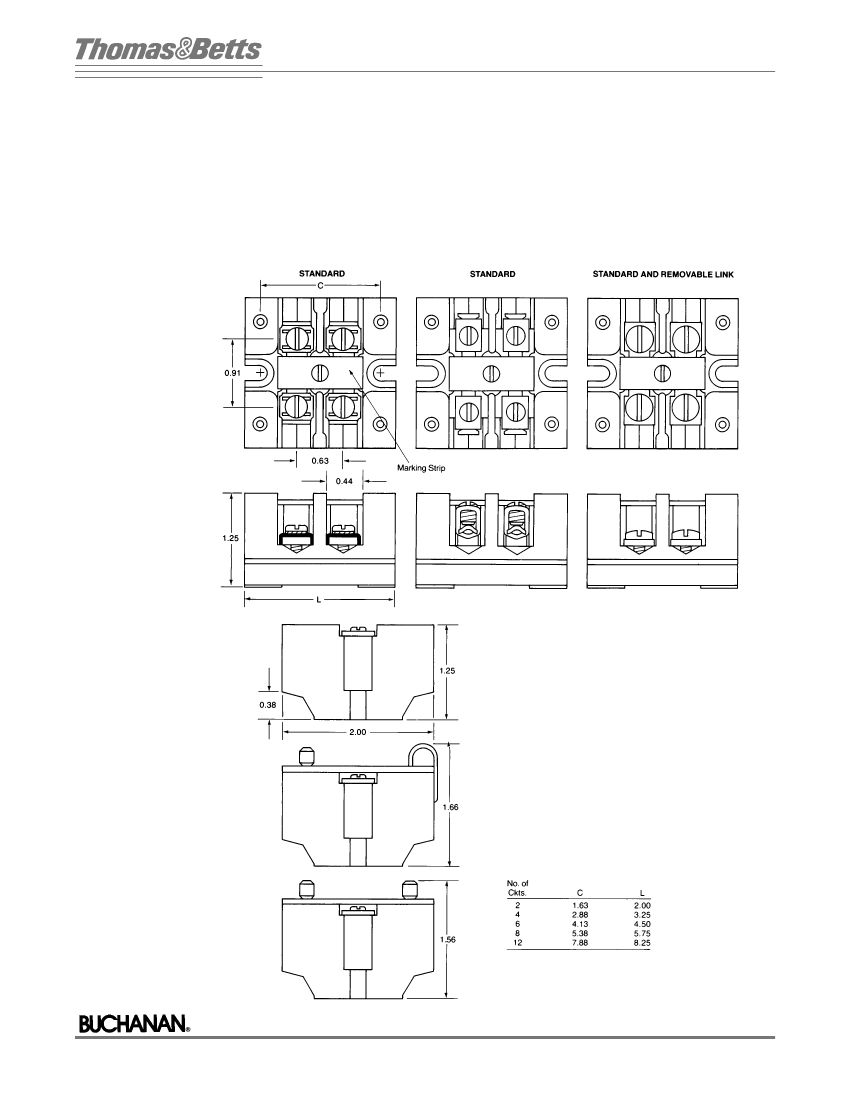

• Two, four, six. eight. and twelve

circuit models available — 5/8"

center-to-center contact spacing.

• No assembly required — each is a

single, easily installed unit.

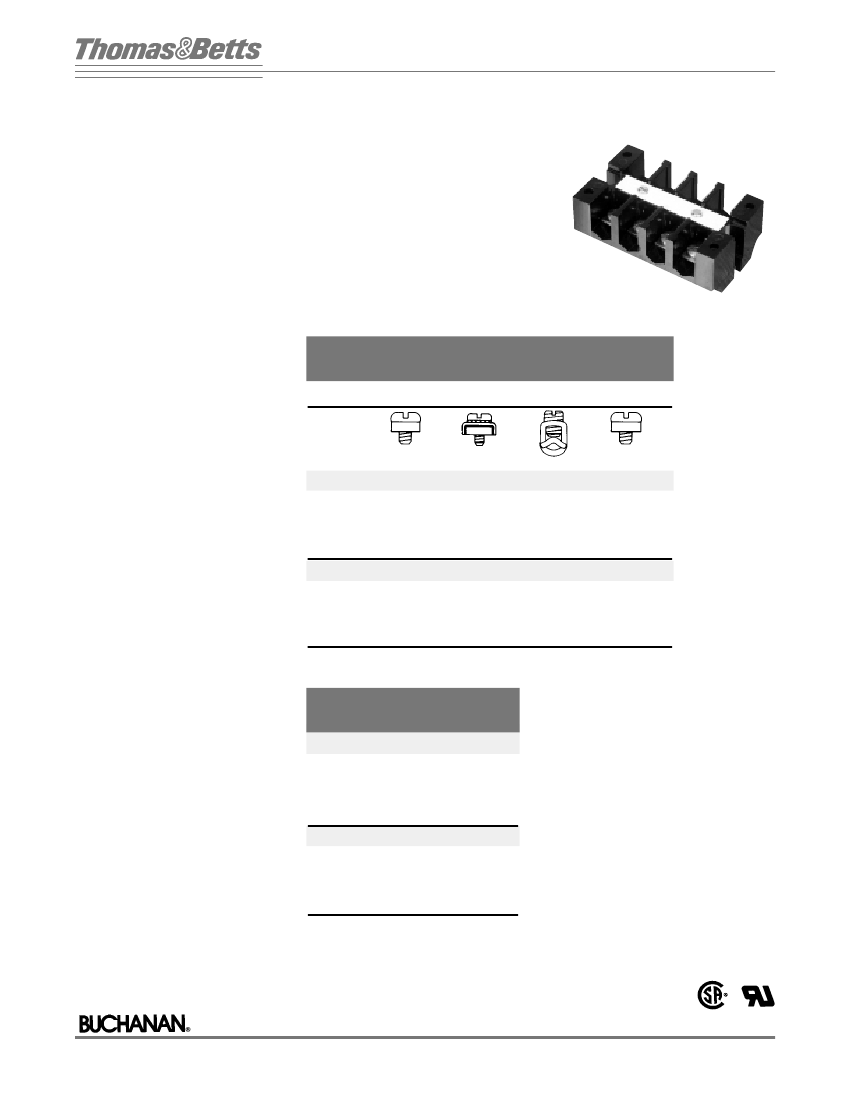

• Three contact styles available —

strap screw, captive strap clamp.

and moving tubular contact.

• Use wire up to AWG #6 with tubular

contact. Strap screw and strap

clamp contacts are available for #8

and smaller.

• Withstand voltages in excess of

IEEE standards for 750 volts. Meet

clearance and creepage spacings

specified in UL, CSA, and NEMA

Industrial Control Standards for 600

Volts.

• Strap contacts rated at 50 amperes

— tubular contact conservatively

rated at 70 amperes.

• Pilot point screws supplied with

strap screw and clamp contacts —

speeds installation time.

• Plain white marking strip supplied

with each block — circuits are

easily identified.

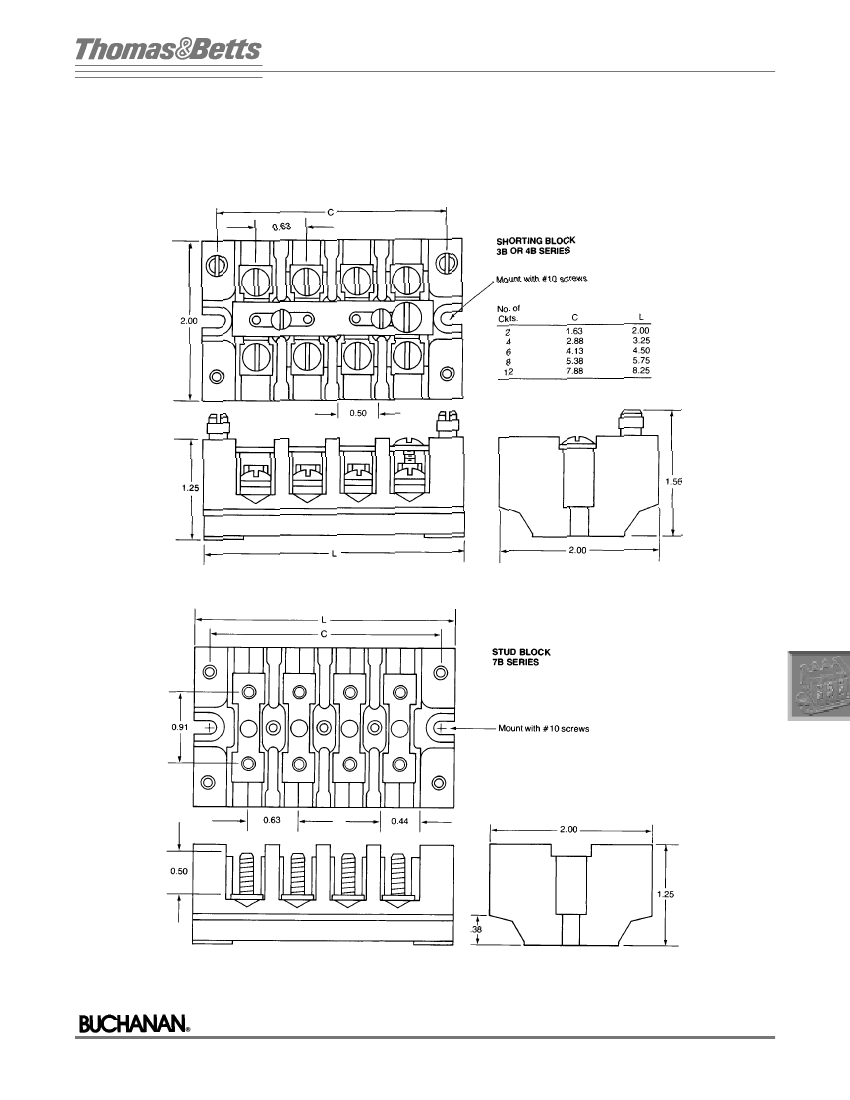

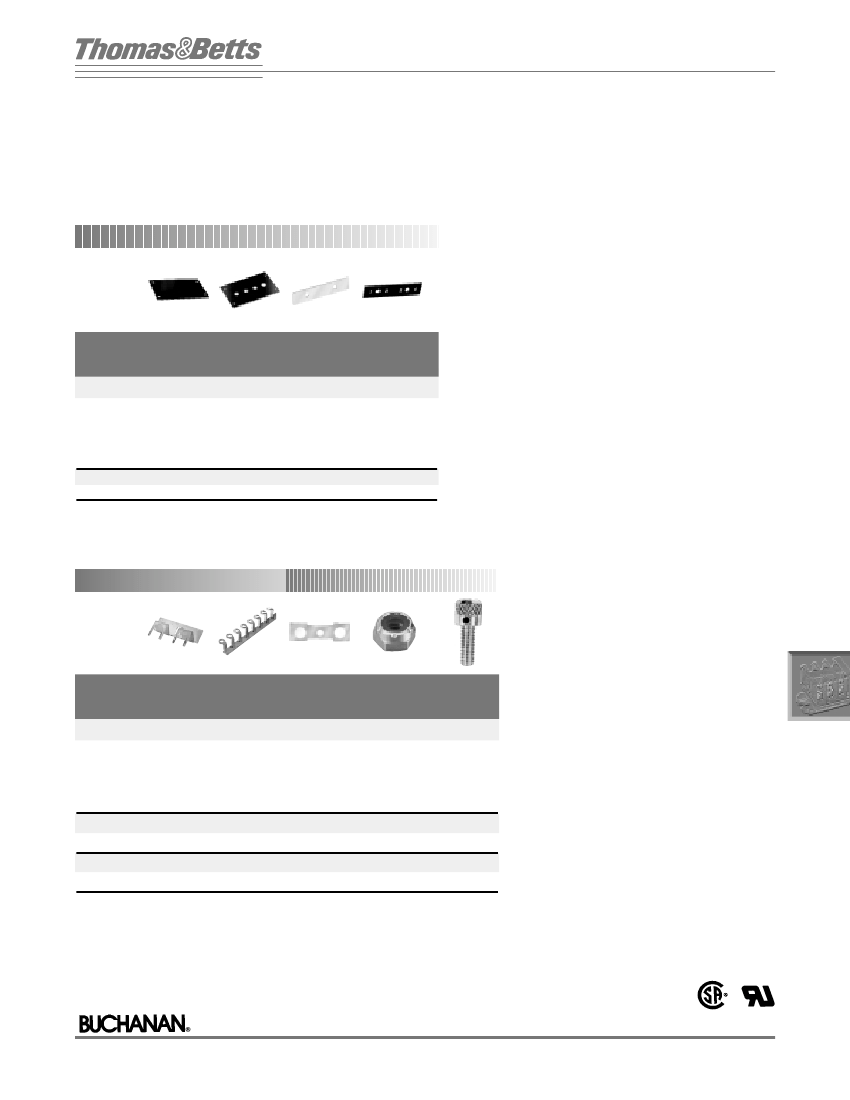

• Special purpose blocks available—

choose from blocks with solder

posts, printed circuit board pins, or

nuts on screw posts, removable

circuit links, and a shorting bar.

LR25557

E63810

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

307
