20-040X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 20-040X

20-040X: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, PANEL MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size55KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

20-040X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20-040X	-	-	View	Buy Now

20-040X Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, PANEL MOUNT

20-040X Parametric

Parameter Name	Attribute value
state	ACTIVE
Relay action	MOMENTARY
Relay function	SPST
terminal coating	NOT SPECIFIED
Manufacturer Series	20-000
Maximum AC coil voltage	120 V
Maximum AC contact current	5 A
Maximum AC contact voltage	120 V
Installation features	PANEL MOUNT
Relay type	POWER/SIGNAL RELAY
Terminal type	SCREW

Preview

Download Datasheet

View All

Frequency Sensitive Relays

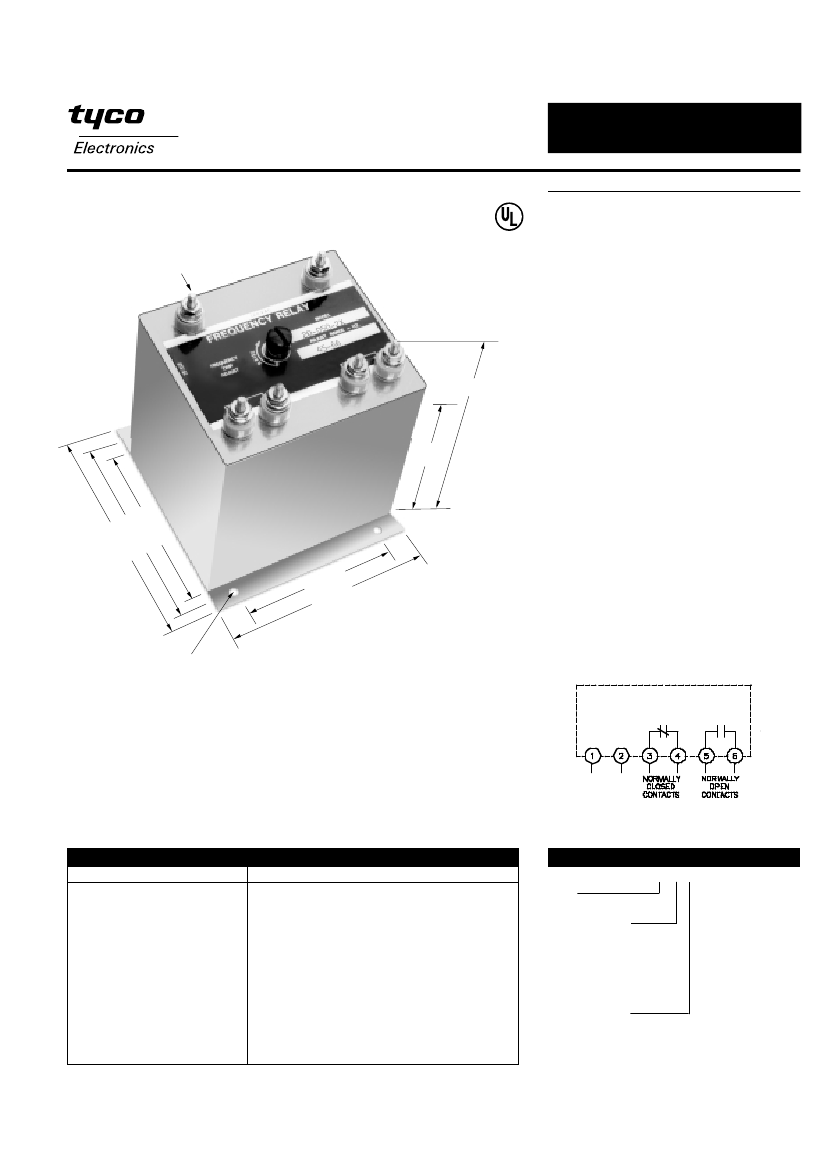

WILMAR™ Protective Relays – 20-000 Series

Function:

81 O

The output contacts of frequency relays are ener-

gized when the frequency exceeds the adjustable set

point. Overfrequency and underfrequency relays are

available in 50, 60 and 400Hz. Combination over/

underfrequency “band pass” relays are also avail-

able. These are energized at rated frequency and de-

energized during overfrequency or underfrequency

conditions. Frequency Differential relays are ener-

gized between the preset frequencies. The pick-up

and drop-out frequency settings are independently

adjustable.

4 1/2

#6 - 32 STUDS

6 PLACES

Operation:

The normally open contacts close, and the normally

closed contacts open, at all frequencies above the set

point. The contacts in the connection diagram, are

shown in the de-energized position (below the trip

set point).

3 13/16

Note:

Dimensions in inches. Multiply values by 25.4 for dimensions in mm.

Part Number

Input Voltage (±10%)

......................

120 VAC, Single Phase

Frequencies Range (adjustable) ...... See Part Number Selection

Differential ........................................ Frequency pick-up to drop-out differential is 1% max

Temperature Range ......................... -40

C to +85

Temperature Drift .............................

1% frequency error over temperature range

Voltage Error ....................................

1% for input voltage of 120 VAC

10%

Contact Ratings ................................ 5 amp resistive at 120 VAC or 28 VDC

Output Contacts ............................... One set N.O., one set N.C.

Notes:

Remove screw for access to trip adjustment.

Tyco Electronics

/ www.tycoelectronics.com / Factory Direct Technical Support: 800-253-4560, ext. 2023 (U.S., Canada, Mexico) or 805-220-2020, ext. 2023 (International)

3.0

1 /2

7 /8

3/4

1/2

PART NUMBER SELECTION

11 /64" DIA.

4 MTG. HOLES

120VAC

PRODUCT SPECIFICATIONS

PART NUMBER SELECTION

Sample Part No.

Type:

20 - Frequency

Frequency Range

040 = 40-50 Hz

050 = 50-60 Hz

060 = 60-70 Hz

350 = 350-500 Hz

400 = 400-450 Hz

Mounting Options

X = Flange

blank = Stud

20-050X

20-000 Series

Consult factory for additional models.
