FOX801BE-144 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> FOX801BE-144

FOX801BE-144: DescriptionClipped Sine Output Oscillator, 10MHz Min, 22MHz Max, 14.4MHz Nom; CategoryPassive components oscillator; File Size63KB，1 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet Parametric Compare View All

FOX801BE-144 Overview

Clipped Sine Output Oscillator, 10MHz Min, 22MHz Max, 14.4MHz Nom

FOX801BE-144 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FOX [Fox Electronics]
Reach Compliance Code	unknown
ECCN code	EAR99
Ageing	0.8 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	3 ppm
frequency stability	2.5%
Manufacturer's serial number	FOX801BE
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	22 MHz
Minimum operating frequency	10 MHz
Nominal operating frequency	14.4 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.38,300
physical size	11.4mm x 9.6mm x 2mm
power supply	3 V
Certification status	Not Qualified
Maximum slew rate	2 mA
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

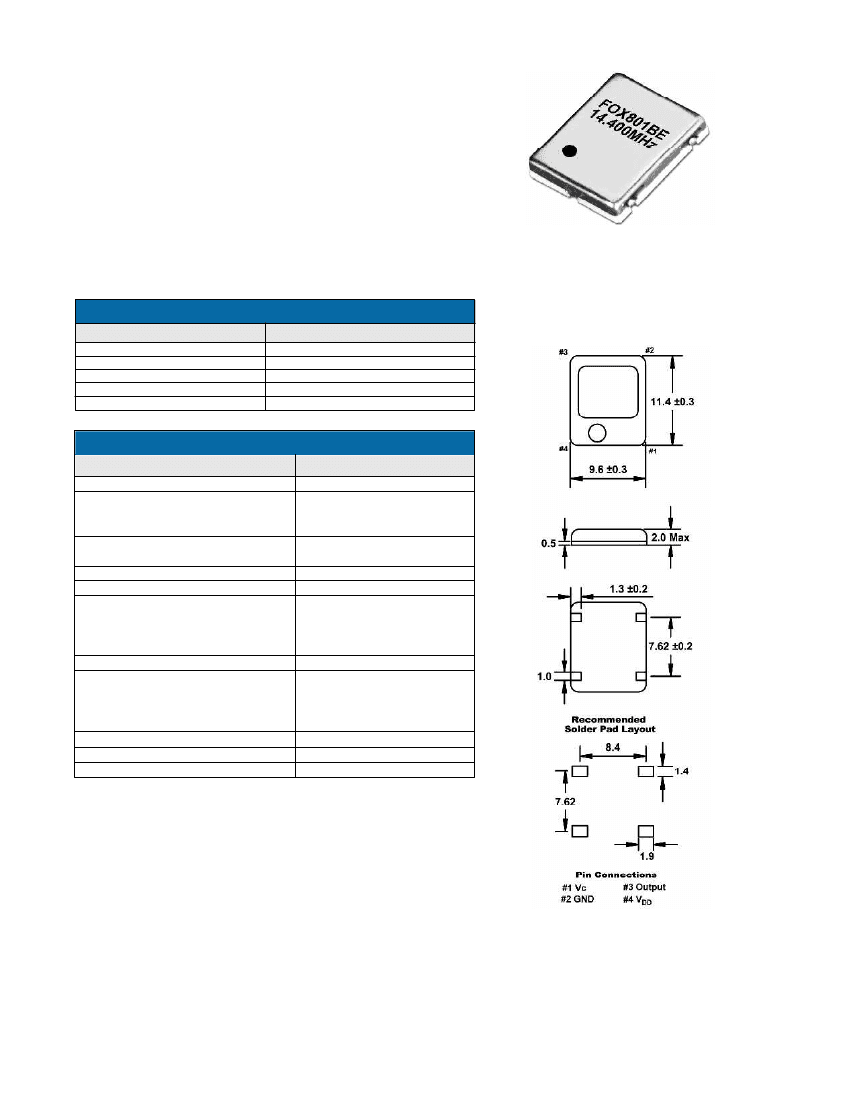

3.0V LOW PROFILE VCTCXO

FOX801BE

FEATURES

• 3.0V Operation

• 2.0mm Height Max

• Clipped Sine Output

• Low Cost

• Stocking Standard

• Tape and Reel (2,000 pcs. STD)

• DISTRIBUTOR STOCKING ITEMS

Model Number

FOX801BE-100

FOX801BE-128

FOX801BE-144

FOX801BE-160

FOX801BE-192

Frequency (MHz)

10.000

12.800

14.400

16.000

19.200

• ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (F

)

Temperature Range

Operating

OPR

)

Storage

STG

)

Frequency Tolerance (@25ºC)

Vc = 1.5V

Supply Voltage

)

Input Current

)

Frequency Stability

Over Temperature Range

Over Supply Voltage Change

(3.0V ± 5%)

Over Load Change

(10Ω ± 10% // 10pF ± 10%)

Voltage Control

(1.5V ± 1.0V)

Output Waveform

(Clipped Sine)

Peak-to-Peak Level (Vp-p)

10.000 ~ 14.400

14.400+ ~ 22.000

Output Load

Frequency Adjustment (Internal Trimmer)

Aging per year

MAX

(unless otherwise noted)

10.000 ~ 22.000 MHz

-30ºC ~ +75ºC

-35ºC ~ +85ºC

±0.5PPM

3.0V ± 5%

2.0mA

±2.5PPM

±0.3PPM

±3.0PPM Min

0.8V Min

0.7V Min

10KΩ // 10pF

±3.0PPM

±0.8PPM

For proper operation, a control voltage (Vc) must be applied to pin 1 on VCTCXOs.

All specifications subject to change without notice.

Rev. 02/10/03

All dimensions are in millimeters.

See

page 79

for tape and reel specifications.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +001(239)693-0099 FAX +001(239)693-1554

http://www.foxonline.com

FOX801BE-144 Related Products

	FOX801BE-144	FOX801BE-100
Description	Clipped Sine Output Oscillator, 10MHz Min, 22MHz Max, 14.4MHz Nom	Clipped Sine Output Oscillator, 10MHz Min, 22MHz Max, 10MHz Nom
Is it Rohs certified?	incompatible	incompatible
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Ageing	0.8 PPM/YEAR	0.8 PPM/YEAR
Maximum control voltage	2.5 V	2.5 V
Minimum control voltage	0.5 V	0.5 V
Frequency Adjustment - Mechanical	YES	YES
Frequency offset/pull rate	3 ppm	3 ppm
frequency stability	2.5%	2.5%
Manufacturer's serial number	FOX801BE	FOX801BE
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4
Maximum operating frequency	22 MHz	22 MHz
Minimum operating frequency	10 MHz	10 MHz
Nominal operating frequency	14.4 MHz	10 MHz
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω
Output level	0.8 V	0.8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.38,300	DILCC4,.38,300
physical size	11.4mm x 9.6mm x 2mm	11.4mm x 9.6mm x 2mm
power supply	3 V	3 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	2 mA	2 mA
Nominal supply voltage	3 V	3 V
surface mount	YES	YES
