MQIC & MQIT Series 5X7 Ceramic SMD Oscillator
Same day Shipping Available
5x7mm SMD Package
RoHS Compliant
Tape & Reel package Available
Frequency
Frequency Stability (Inclusive of Temperature, Load & Volt-
age)
Aging @ +25°C
Operating Temperature Range
Storage Temperature Range
Output Waveform
Supply Voltage (Vdd)
Supply Current (unloaded)
Load
Logic “0”
Logic “1”
Rise/Fall Time
Start Up Time
Duty Cycle
Jitter
Tristate Operation
1.000MHZ to 66.000MHZ
66.000MHZ and above
1.000MHZ to 33.000MHZ
33.000MHZ and above
+3.3 VDC ±10%
25mA
5 TTL or 30pF
0.4 V max
2.4 V min
4nSec max
10mSec max
45%/55% (TTL @ 1.4V Level / CMOS @ 50% Waveform)
40%/60% (TTL @ 1.4V Level / CMOS @ 50% Waveform)
5pSec max (RMS)
10pSec max (RMS)
TTL
+5.0 VDC ±10%
45mA
10 TTL or 50pF
25mA
15pF
0.3 V max
3.0 V min
1.000MHZ to 150.000MHZ
See Part Number Guide
±5 ppm per year max
See Part Number Guide
-55°C to +125°C
CMOS
+3.3 VDC ±10%
+5.0 VDC ±10%
45mA
30pF
0.5 V max
4.5 V min
Vol =
Voh =
70% of Vdd min or No Connection to Enable Output
30% of Vdd max or grounded to Disable Output (High Impedance)
Mechanical & Environmental Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
=
=
=
Internal Code
4 Digit Date Code (Year /
Week)
Denotes RoHS Compliant
=
=
MMD
Frequency in MHZ
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
04/29/11
Pg 1of 2

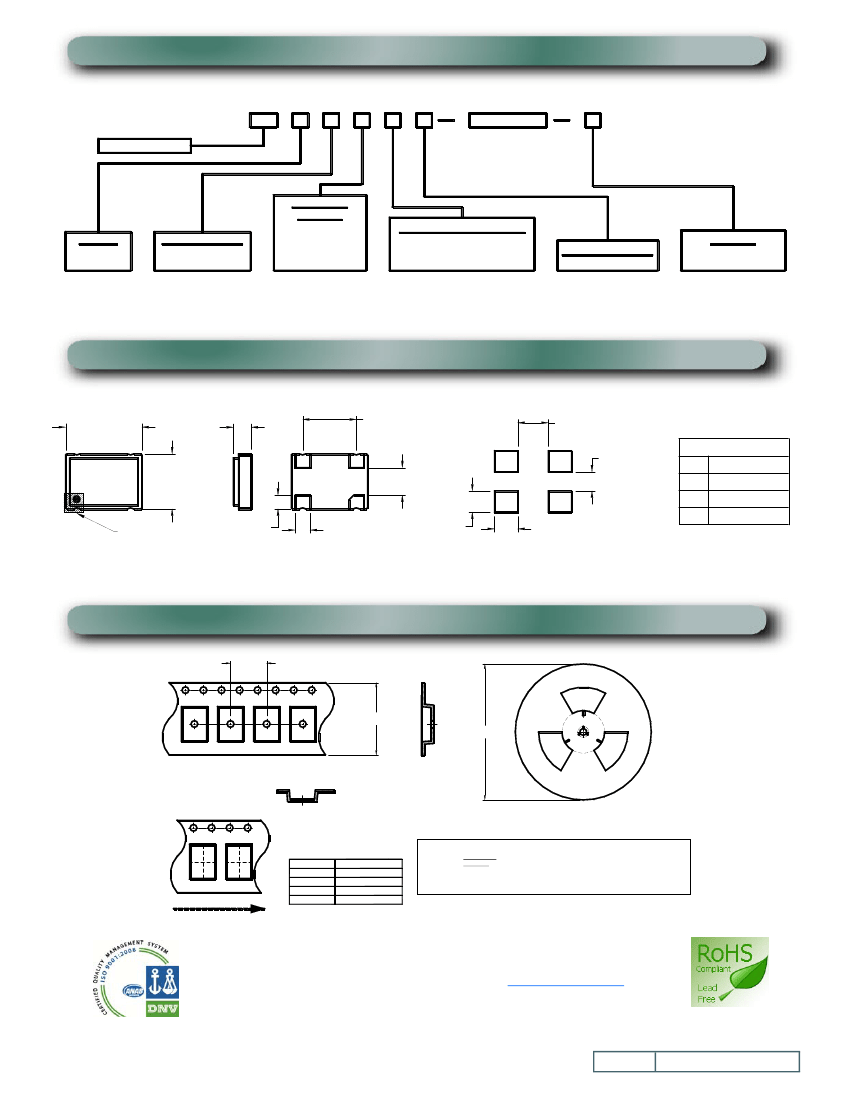

Part Number Guide
MQI
5 x 7 Ceramic SMD
H
FREQUENCY
Output
C = CMOS
T = TTL
Supply Voltage
5 = +5 VDC
3 = +3.3 VDC
Frequency
Stability
020 = ±20 ppm
025 = ±25 ppm
050 = ±50 ppm
100 = ±100 ppm
Operating Temperature
Blank = 0°C to +70°C
27 = -20°C to +70°C
48 = -40°C to +85°C
Pin 1 Connection
H = Tri-state
Package
Blank = Bulk
T= Tape and Reel
PLEASE CONSULT WITH MMD SALES DEPARTMENT FOR ANY OTHER PARAMETERS OR OPTIONS
Mechanical Details
5.08 [.200]
7.20 [.283]
MAX
1.70 [.067]
MAX
2.88 [.113]
Pin Connections
Pin 1 Tri-state
Pin 2 Case Ground
Pin 3 Output
2.00 [.079]
Pin 4 Supply Voltage
2.20 [.087]
Recommended Land
Pattern
MXXXXX
SYYWWL
XXXXX
1.81 [.071]
5.20 [.205]
MAX
3
2
4
1
2.60 [.102]
PIN 1 INDICATOR
1.30 [.051]
1.40 [.055]
Dimension in Brackets are in Inches
External Bypass Capacitor is Recommended
Tape & Reel Dimensions
PITCH
TAPE WIDTH
REEL DIA
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
PITCH
TAPE WIDTH
REEL DIA
QTY PER REEL
PIN 1 ORIENT.
8.00 [.315]
16.00 [.630]
180[7 IN]
1000
Q1
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters.
3. Tolerances are ±0.10 [.004] mm unless otherwise specified.
4. Do not scale drawing.
DIRECTION OF FEED
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Subject to change without notice
04/29/11
Pg 2of 2
