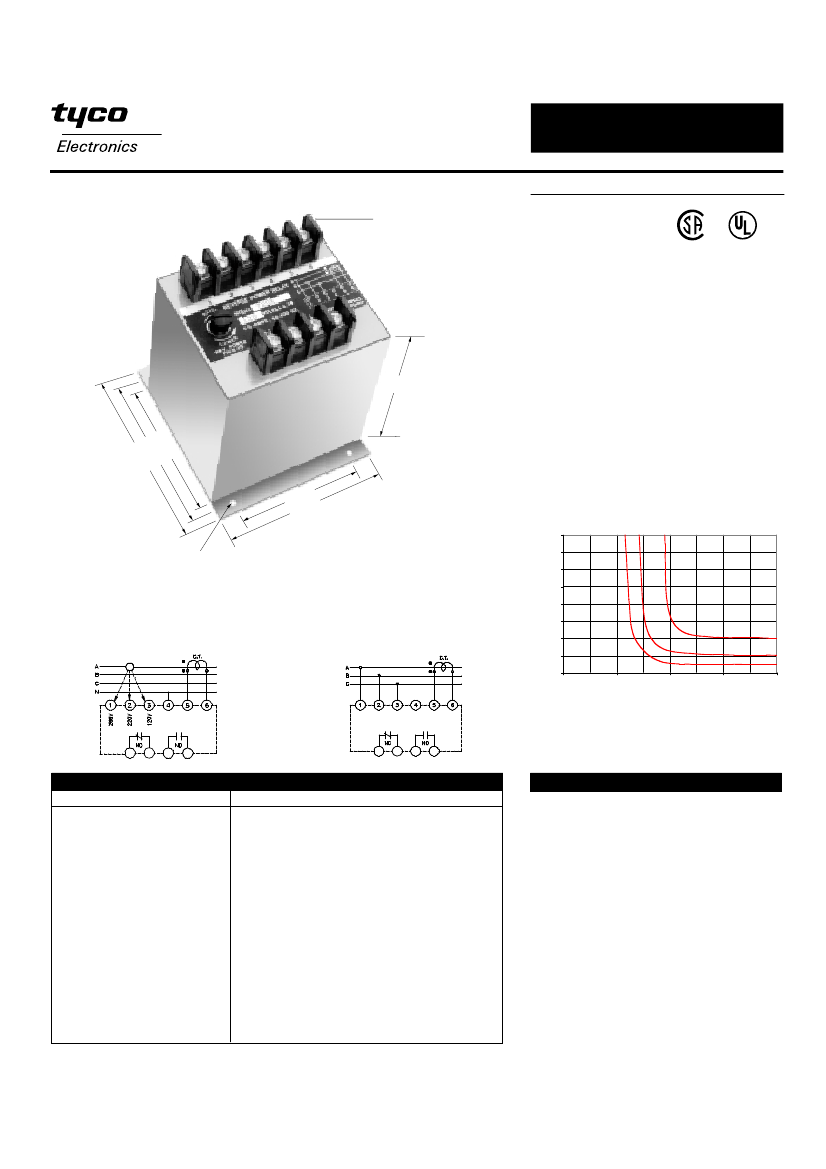

Reverse Power Relays
WILMAR™ Protective Relays – 700 Series
TERMINAL STRIPS
#6 - 32 SCREWS
Function:
32
•
ANSI/IEEE C37.90-1978
•
UL file No. E58048
•
CSA file No. LR61158
Several types of Reverse Power Relays are available
including relays sensitive to reverse reactive power
(KVAR). WILMAR is the leading brand of reverse power
relays. Our rugged sealed construction provides con-
tinuous and reliable operation unaffected by shock,
vibration or other severe environments. Reverse Power
Relays are used for the protection of generator sets
operating in parallel.
3
13
/
16
3.0
3 4
2 /
1 2
3 /
80%
70%
3
3
7
/
8
1
/
2
/ DIA.
4 MTG. HOLES
11 64
"
60%
50%
40%
Note:
Dimensions in inches. Multiply values by 25.4 for dimensions in mm.
Model 710 (X)
Designed for 120, 220 or 266 volt
line to neutral connection
Model 720 (X) thru 724 (X)
For operation on three phase,
three wire circuits
PART NUMBER SELECTION
30%
20%
10%
0%
0.000
0.100
0.200
Time Delay (seconds)
0.300
0.400
PRODUCT SPECIFICATIONS
PART NUMBER SELECTION
Sample Part No.
Type:
±
20%
710 = 120 V, 220 V, 266 V line to neutral
720 = 120 V, L-L, 3 Phase
721 = 230 V, L-L, 3 Phase
722 = 380 V, L-L, 3 Phase
723 = 460 V, L-L, 3 Phase
724 = 575 V, L-L, 3 Phase
725 = 416 V, L-L, 3 Phase
Mounting:
X = Flange
Blank - Stud
Options:
7 = Reverse Inductive
P = Surge Suppression
Consult factory for additional models.
710X
Part Number
700 Series
line to neutral sensing
Line Voltage ...................................... Model 710X = 120 V, 220 V or 266 V
Line Frequency ................................. 50-500 Hz.
Current Requirements ..................... 0 to 5 amp max direct or from CT with 5 amp
secondary
Trip Adjustment ............................... Screwdriver adjustable 4% to 20% (of the 5 amp rating)
Time Delay ........................................ Inverse Delay - See Chart
Output Contacts ............................... One set N.O., one set N.C.
Contact Ratings ................................ 5 amp resistive at 120 AC or 28 Vdc
Power Consumption ........................ Voltage circuit: 2 VA max.
Current circuit: 4 VA max.
Notes:
1. Remove screw for access to the pick-up adjustment.
2. Clockwise rotation of the adjustment will raise the reverse trip point.
3. This relay senses true power, which is a product of voltage, current and phase angle.
Connections and polarity must be obversed in accordance with the provided diagrams.
