HARTMAN Aerospace Power Products
DC Reverse Current
Features:
• Similar to MS27433-600
• SPST N.O. Main Contacts
• 28 VDC
• 600 Amps
• High Reliability
• Meets many requirements of MIL-R-6106
A-702AAP SPST N.O., 600 Amps, 28 VDC,
Cutout Reverse Current

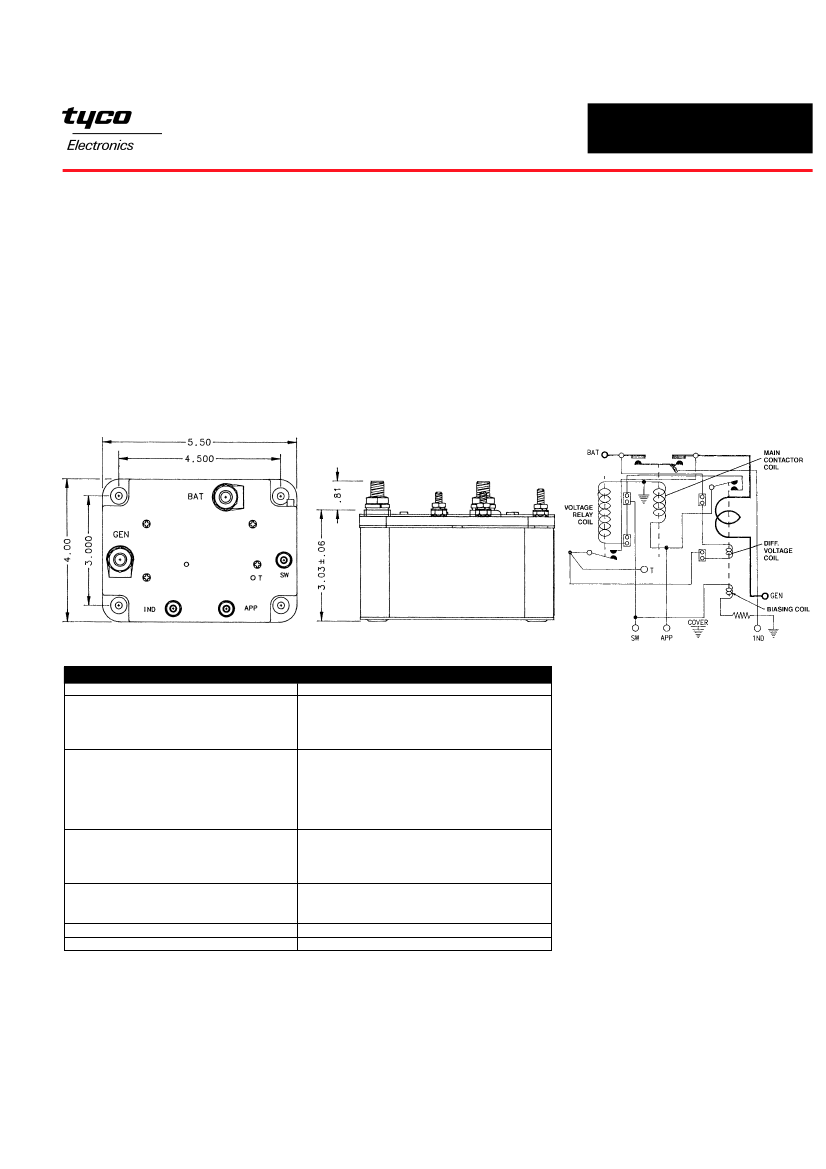

CONTACTOR CONFIGURATION
Dimensions for this product are expressed in inches.
Multiply values by 25.4 for millimeters.
PRODUCT SPECIFICATIONS
Construction
Main Contacts:
Configuration
Voltage (Nominal)
Current (Resistive)
Main Contactor Coil:
Duty Cycle
Voltage (Nominal)
Pick-Up Voltage
Drop-Out voltage
Coil Current @ +25°C
Differential Voltage Coil:
Differential Voltage Pick-Up +GEN to BAT
Unexcited Bus Pick-Up
Positive Drop-Out
Voltage Relay Coil:
Pick-Up Voltage
Drop-Out Voltage
Reverse Current Drop-Out (+BAT to GEN)
Weight Maximum
Gasket Sealed, Vented
SPST N.O.
28 VDC
600 Amps
Continuous
28 VDC
18 VDC Maximum
1 - 7 VDC
.35 Amp
.5
±15
VDC
24 VDC Maximum
1 - 18 VDC
21 - 24 VDC
18 - 21 VDC
18 - 35 Amps
3.9 Lbs.
Notes:
TYPICAL APPLICATION: Reverse current protection for 600 ampere DC starter/generators and/or transformer
rectifier units.
Contact Hartman for a detailed Theory of Operation.
For factory-direct application assistance, contact the HARTMAN
product team at (419) 521-9500, Fax (419) 526-2749.
© 2004 by Tyco Electronics Corporation. All Rights Reserved.
HARTMAN and TYCO are trademarks.
Catalog (web doc only)
Revised 5-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
