HARTMAN Aerospace Power Products
AC High Voltage
Features:
• 3PDT Center Off Main Contacts
• 200 VAC, 400 Hz
• 60 Amps
• High Reliability
• Meets many requirements of MIL-R-6106
B-140AA 3PDT, Center Off, 60 Amps,
200 VAC, 400 Hz

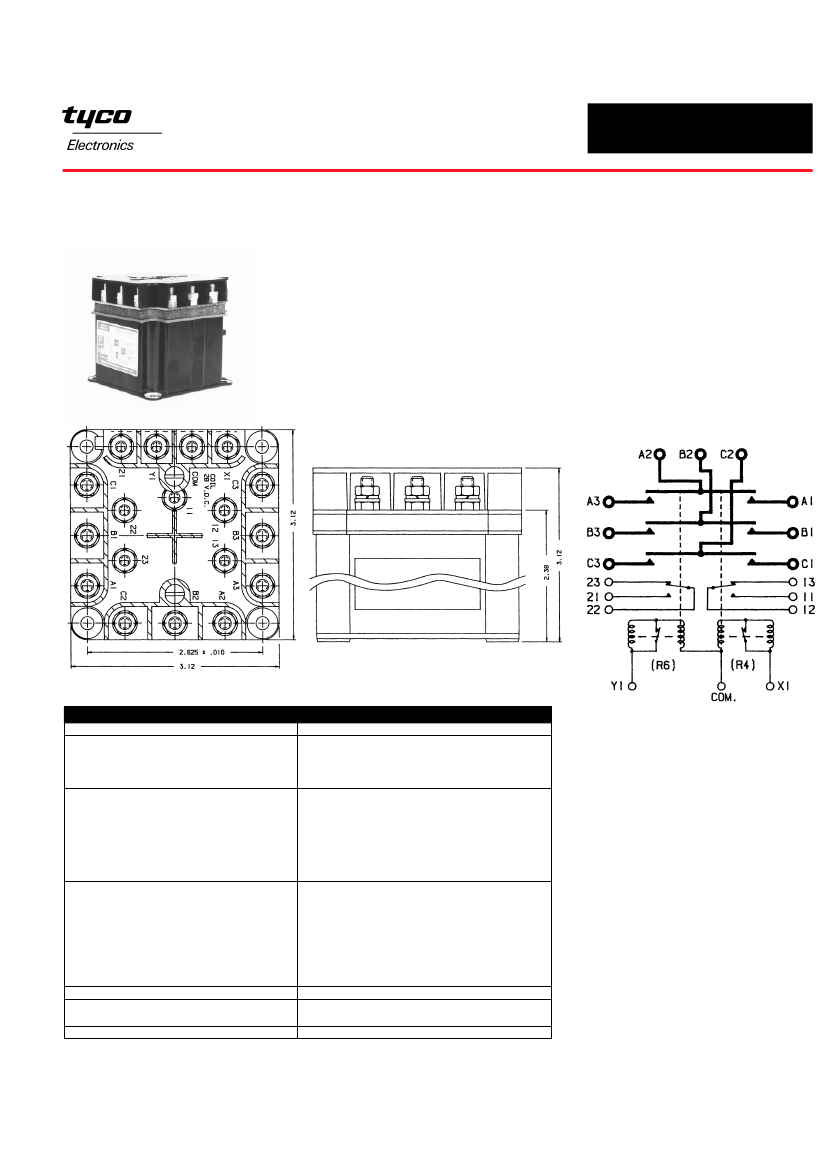

CONTACTOR CONFIGURATION
Dimensions for this product are expressed in inches.
Multiply values by 25.4 for millimeters.
PRODUCT SPECIFICATIONS
Construction
Main Contacts:
Configuration
Voltage (Nominal)
Current (Resistive)
Auxiliary Contacts:
Configuration
Voltage (Nominal)
Current
Resistive
Inductive
Motor
Coil Data:
Duty Cycle
Voltage (Nominal)
Pick-Up Voltage
Drop-Out Voltage
Coil Current @ 28 VDC & +25°C
In-Rush
Hold
Operating Temperature
Life:
Electrical
Weight
Gasket Sealed, Vented
3PDT Center Off
200 VAC, 400 Hz
60 Amps
2-SPDT
28 VDC
5 Amps
3 Amps
1 Amp
Continuous
28 VDC
18 VDC Maximum
1.5 - 7 VDC
5 Amps Maximum
0.35 Amp Maximum
+71°C Maximum
50,000 Cycles
1 Lb. 10 Oz.
Notes:
For factory-direct application assistance, contact the HARTMAN
product team at (419) 521-9500, Fax (419) 526-2749.
