MK48H99N-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MK48H99N-20

MK48H99N-20: Description8KX9 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28; Categorystorage storage; File Size101KB，3 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

MK48H99N-20 Overview

8KX9 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28

MK48H99N-20 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	20 ns
JESD-30 code	R-PDIP-T28
memory density	73728 bit
Memory IC Type	STANDARD SRAM
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX9
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

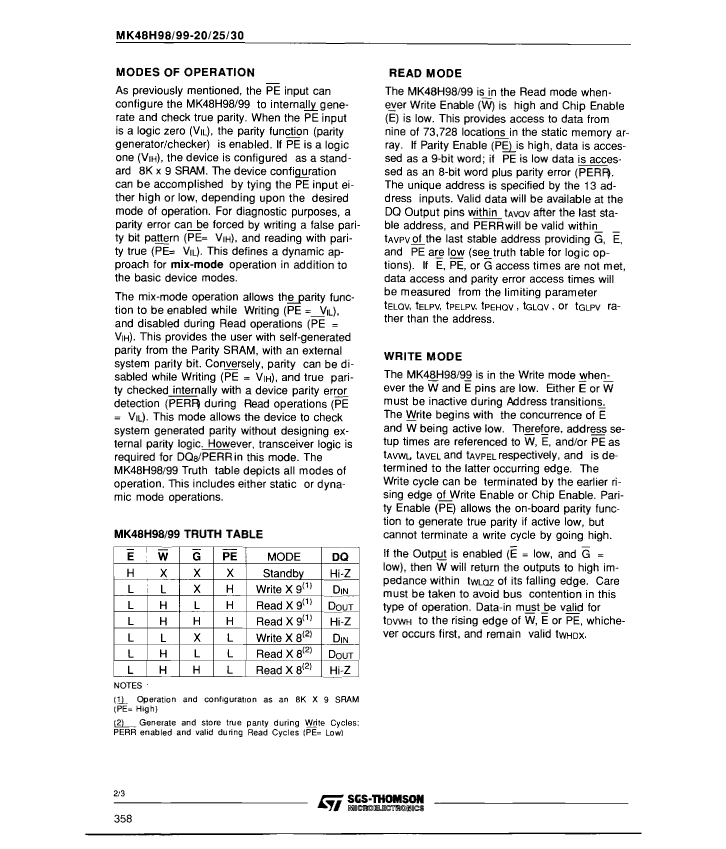

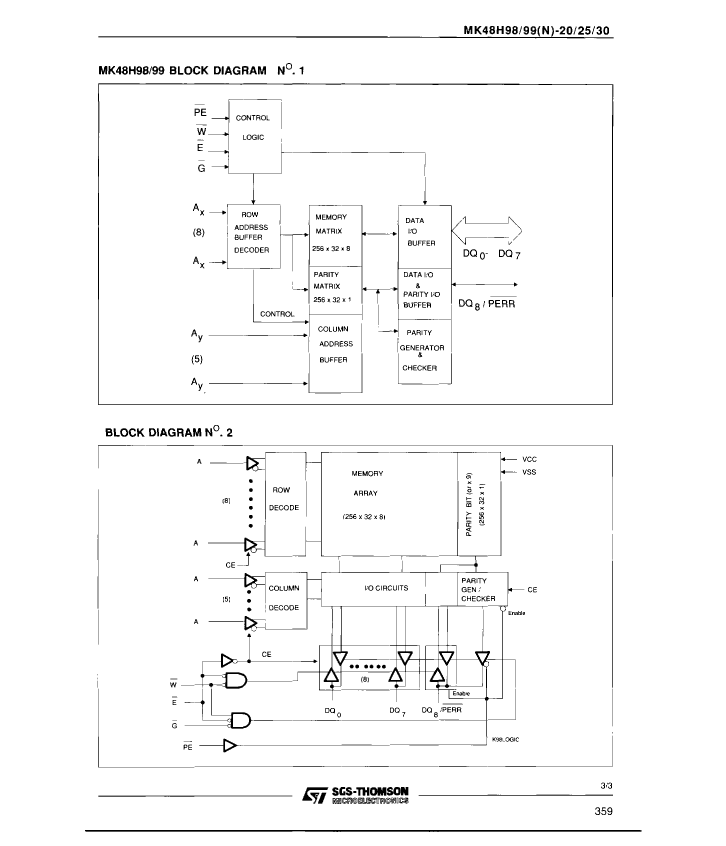

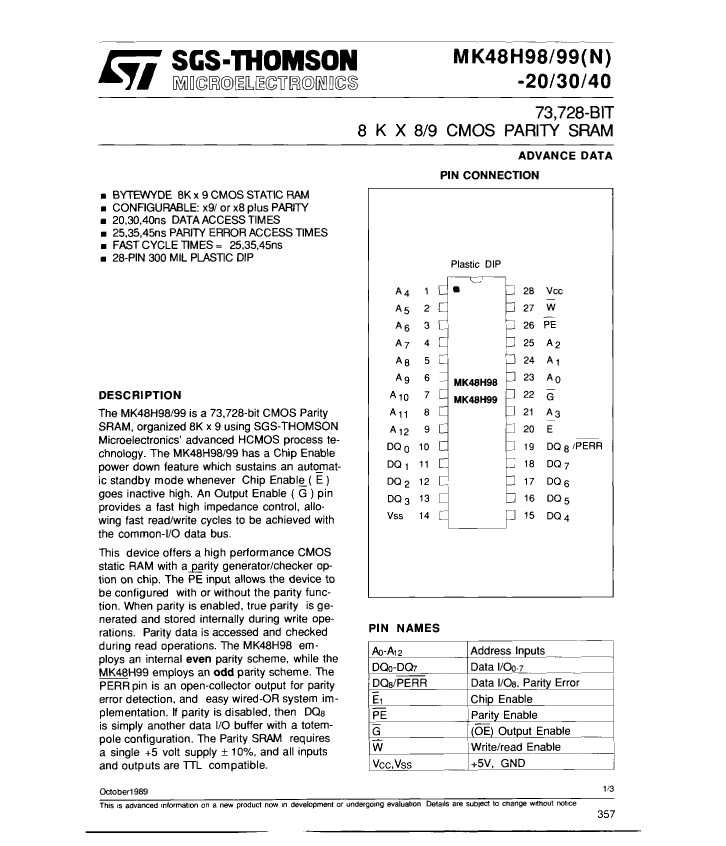

Preview

Download Datasheet

View All

MK48H99N-20 Related Products

	MK48H99N-20	MK48H98N-40	MK48H99N-40	MK48H98N-20	MK48H98N-30	MK48H99N-30
Description	8KX9 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX9 STANDARD SRAM, 40ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX9 STANDARD SRAM, 40ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX9 STANDARD SRAM, 20ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX9 STANDARD SRAM, 30ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28	8KX9 STANDARD SRAM, 30ns, PDIP28, 0.300 INCH, PLASTIC, DIP-28
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, DIP-28
Contacts	28	28	28	28	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	20 ns	40 ns	40 ns	20 ns	30 ns	30 ns
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
memory density	73728 bit	73728 bit	73728 bit	73728 bit	73728 bit	73728 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX9	8KX9	8KX9	8KX9	8KX9	8KX9
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
