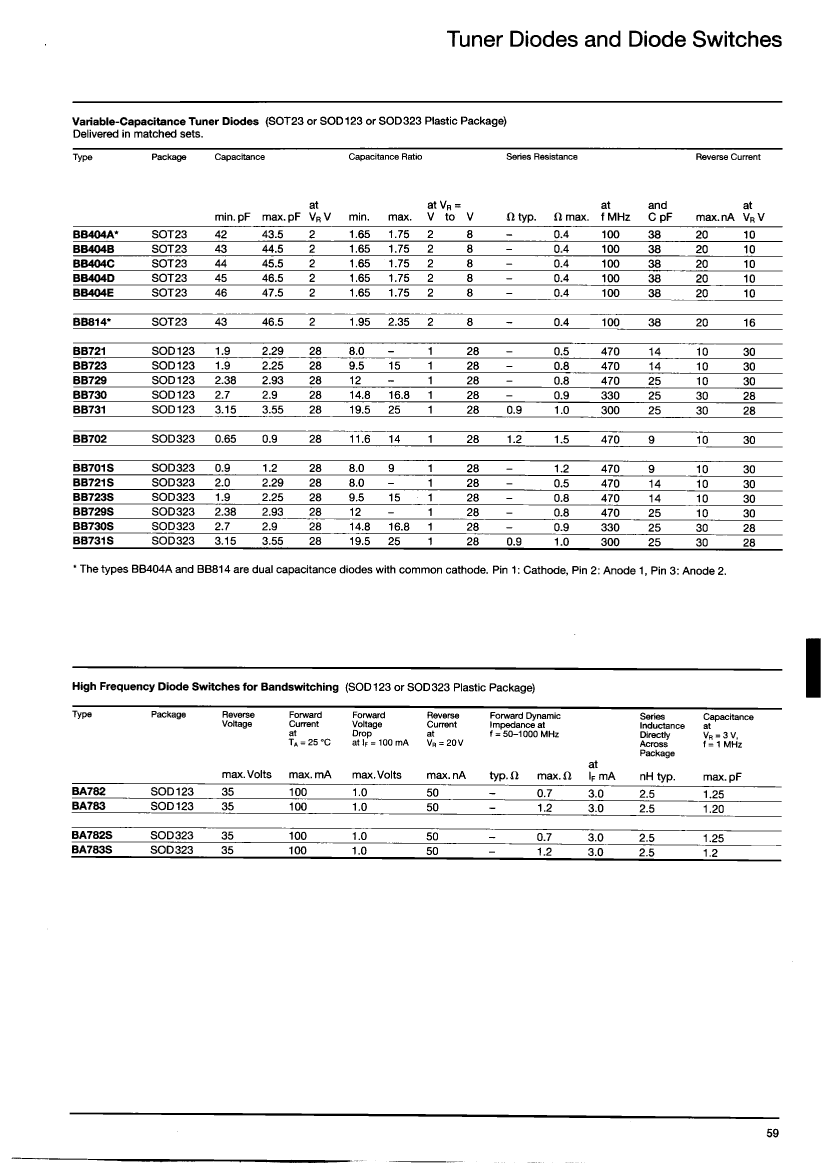

BA782: DescriptionMixer Diode, Silicon; CategoryDiscrete semiconductor diode; File Size36KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

BA782 Overview

Mixer Diode, Silicon

BA782 Parametric

Parameter Name	Attribute value
Maker	TDK Corporation
package instruction	R-PDSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	35 V
Configuration	SINGLE
Maximum diode capacitance	1.25 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PDSO-G2
Number of components	1
Number of terminals	2
Maximum output current	100 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum reverse current	0.05 µA
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

BA782 Related Products

	BA782	BA783	BA782S	BB701S	BA783S	BB814	BB702
Description	Mixer Diode, Silicon	Mixer Diode, Silicon	Mixer Diode, Silicon	Variable Capacitance Diode, Silicon	Mixer Diode, Silicon	Variable Capacitance Diode, Silicon	Variable Capacitance Diode, Silicon
package instruction	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G3	R-PDSO-G2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	VARIABLE CAPACITANCE DIODE	MIXER DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G3	R-PDSO-G2
Number of components	1	1	1	1	1	2	1
Number of terminals	2	2	2	2	2	3	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.05 µA	0.05 µA	0.05 µA	0.01 µA	0.05 µA	0.02 µA	0.01 µA
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	TDK Corporation	TDK Corporation	TDK Corporation	-	TDK Corporation	TDK Corporation	TDK Corporation
Minimum breakdown voltage	35 V	35 V	35 V	-	35 V	-	-
Maximum diode capacitance	1.25 pF	1.2 pF	1.25 pF	-	1.2 pF	-	-
Maximum forward voltage (VF)	1 V	1 V	1 V	-	1 V	-	-
Maximum output current	100 A	100 A	100 A	-	100 A	-	-
Base Number Matches	-	1	1	1	1	1	-
