DFM-P-25 datasheet, PDF - EEWORLD Datasheet

DFM-P-25: DescriptionD Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

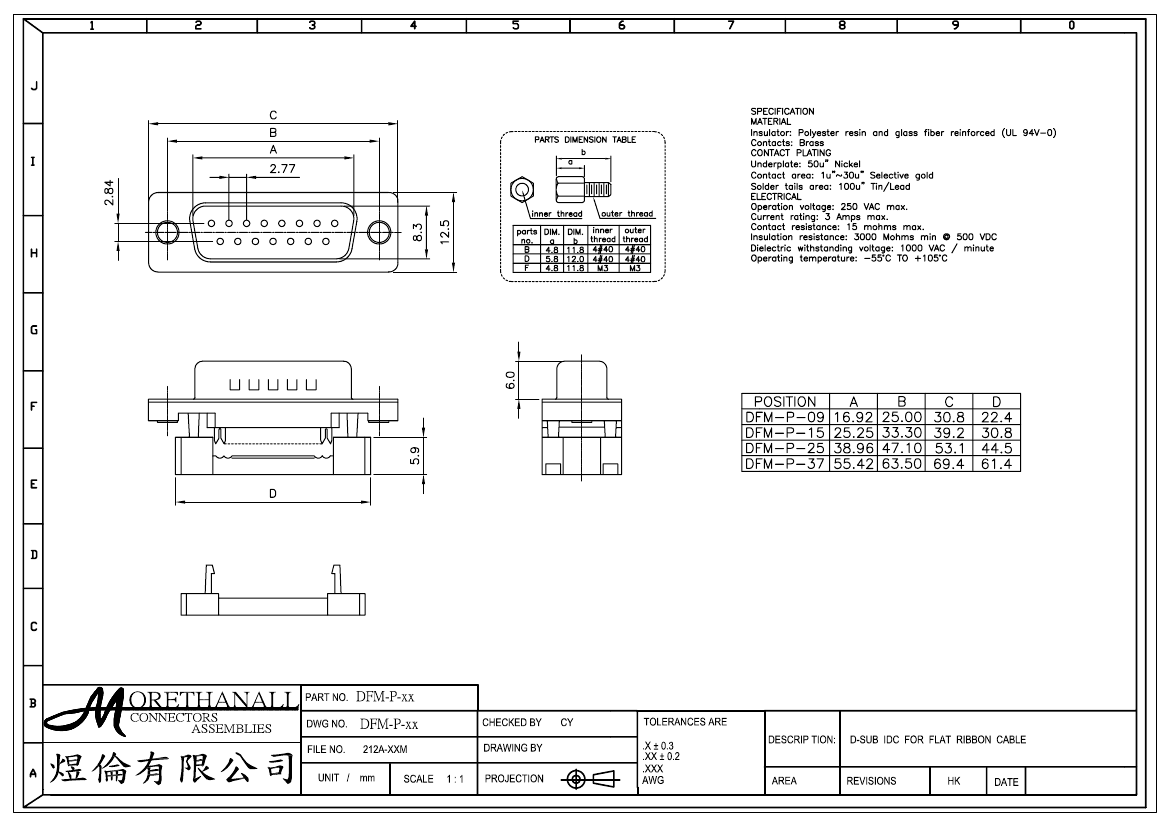

DFM-P-25 Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Maker	Morethanall Co., Ltd.
Reach Compliance Code	unknown
body width	0.492 inch
body length	2.091 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	3000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	DFM-P
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	25

	DFM-P-25	DFM-P-15
Description	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle
Maker	Morethanall Co., Ltd.	Morethanall Co., Ltd.
Reach Compliance Code	unknown	unknown
body width	0.492 inch	0.492 inch
body length	2.091 inch	1.543 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	STAGGERED	STAGGERED
Contact resistance	15 mΩ	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V
Insulation resistance	3000000000 Ω	3000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	DFM-P	DFM-P
Plug contact pitch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40
Installation option 2	JACKSCREW	JACKSCREW
Installation type	CABLE	CABLE
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC
Total number of contacts	25	15
