0.5Amperes Surface Mount Schottky Barrier Rectifiers
Voltage : 20 to 100Volts
■Features
－Low
profile surface mounted application in order to optimize board space
－Low
power loss, high efficiency
－High
current capability, low forward voltage drop
－High
surge capability
－Guardring
for over voltage protection
－Ultra
high-speed switching
－Silicon
epitaxial planar chip, metal silicon junction
－Lead-free
parts meet environmental standards of MIL-STD-19500/228
－Halogen
free
■Mechanical
Data
Epoxy :
UL94-V0 rated flame retardant
Case :
Molded Plastic, SOD-123
Terminals :
Solder plated, Solderable per MIL-STD-750, Method 2026
Polarity :
Indicated by cathode band
Weight :
0.0004 ounce, 0.010 gram
Packaging :
2.5Kpcs per 7” reel or 3Kpcs per 7” reel
▓Package
Dimensions

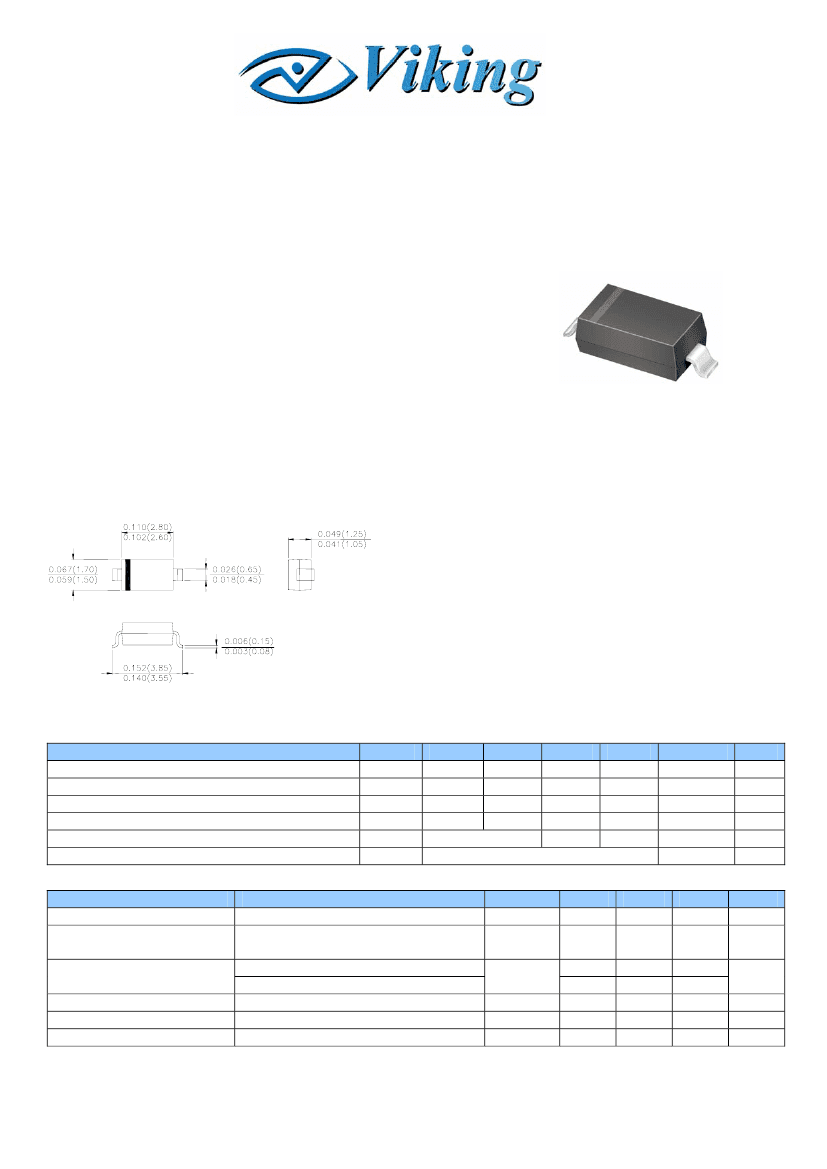

in inches(millimeters): SOD-123
▓Maximum
Ratings And Electrical Characteristics
Rating at 25℃ ambient temperature unless otherwise specified.
For capacitive load, derate current by 20%.
Parameter
Marking Code
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Instantaneous Forward Voltage@0.5A, T
A
=25℃
Operating Temperature
V
RRM
V
RMS
V
DC
V
F
T
J
Single phase, half wave, 60Hz, resistive or inductive load.
B0520W
SD
20
14
20
0.43
B0530W
SE
30
21
30
B0540W
SF
40
28
40
0.51
-50 ~ +125
B0560W
SG
60
42
60
0.60
B05100W
SH
100
70
100
0.76
-50 ~ +150
V
V
V
V
℃
Unit
Symbol
Parameter
Forward Rectified Current
Forward Surge Current
Reverse Current
Thermal Resistance
Diode Junction Capacitance
Storage Temperature

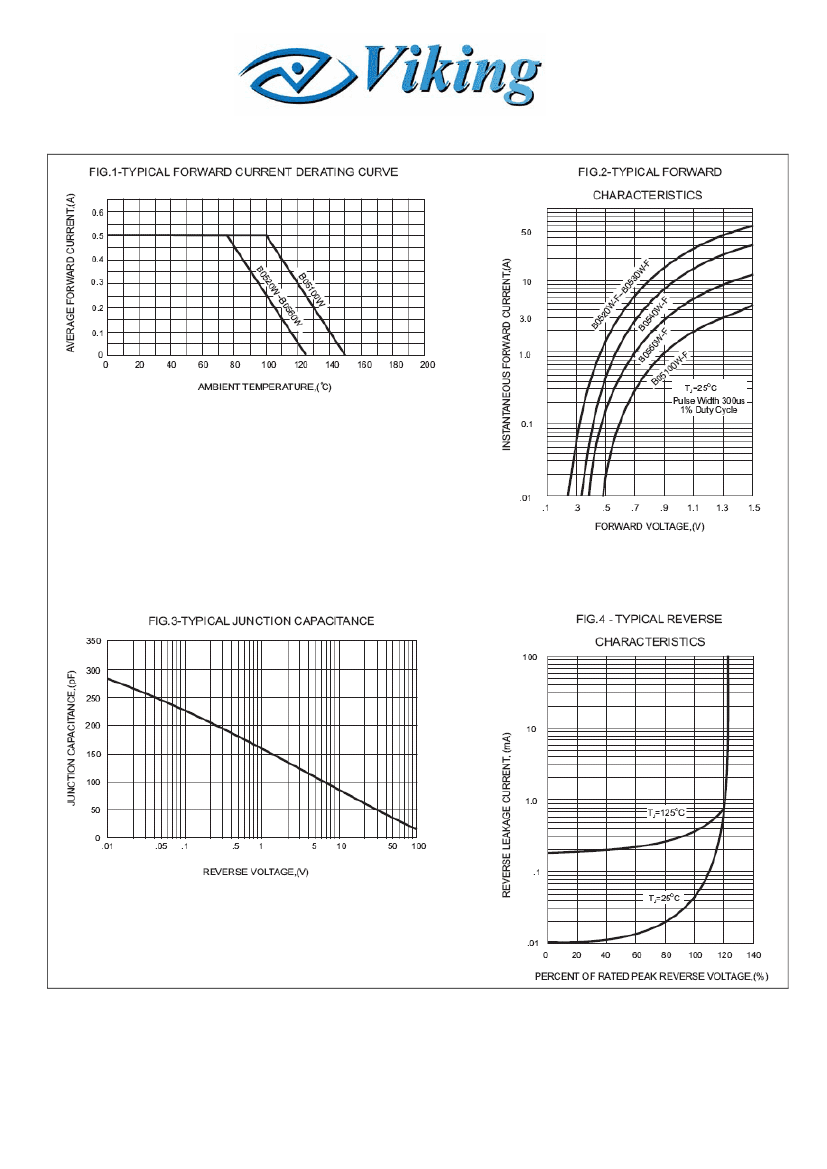

See Fig.1
Conditions
8.3ms single half sine-wave superimposed on
rate load (JEDEC method)
V
R
=V
RRM
, T
A
=25℃
V
R
=V
RRM
, T
A
=100℃
Junction to ambient
f=1MHz and applied 4V DC reverse voltage
Symbol
I
O
I
FSM
I
R
R
ΘJA
C
J
T
STG
Min.
Typ.
Max.
0.5
5.5
0.1
20
Unit
A
A
mA
℃/W
88
120
-50
+150
pF
℃
