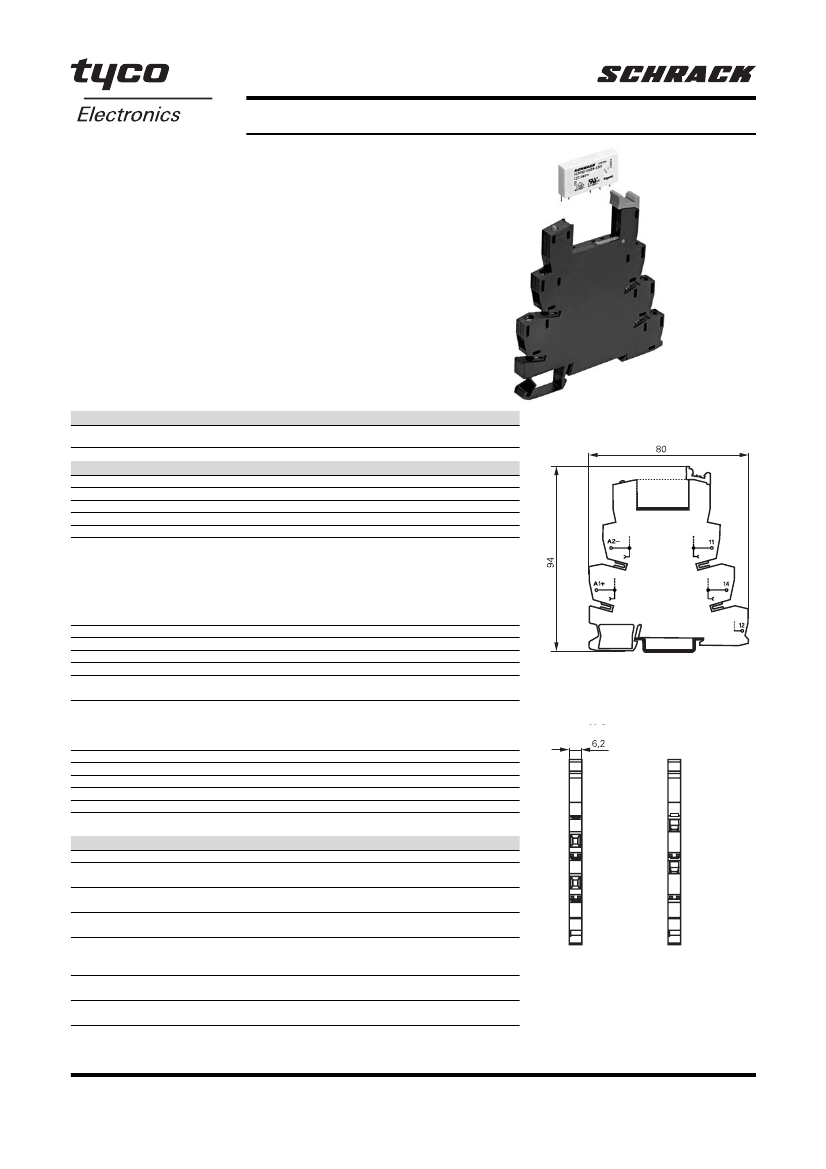

ST3FSM5 Overview

Accessories Slim Interface Relay SNR

Preview

Download Datasheet

View All

General Purpose Relays

Accessories Slim Interface Relay SNR

Module width 6.2 mm

Reduced system width for increased packing density on the

DIN rail

DC and AC version

Electrical indicator as standard (LED)

Protection circuit

Screw- or cage clamp terminals

Jumper bars

RoHS compliant (Directive 2002/95/EC)

F0260-A

Approvals

REG.-Nr. 6666,

E224918

Technical data

Rated current

Rated voltage / max.switching voltage AC

Dielectric strength coil-contact circuit

Clearance / creepage coil-contact circuit

Material group of insulation parts

Insulation to IEC 60664-1

Type of insulation coil-contact circuit

open contact circuit

Rated insulation voltage

Pollution degree

Rated voltage system

Overvoltage category

RoHS - Directive 2002/95/EC

Degree of protection DIN 40050

Ambient temperature range

Terminals

Terminal screw torque acc. IEC 61984

max.

Wire cross section

single wire

fine wire

with bootlace crimp (DIN 46228/1)

Insertion cycles

Max. Insertion Force total

Mounting distance

Weight

Packaging unit

ST3F / ST4F

240 / 400 VAC

4000 V

rms

6/8 mm

IIIa

reinforced

functional

250 V

230 / 400 V

III

compliant

IP20

-20...+55 °C

screw / cage clamp

0.5 Nm

0.6 Nm

0.14...2.5 mm

A (10)

100 N

0 mm, dense packing

26 g

10 pcs

S0487-AA

Sockets

Product code

ST 3F LC4

ST 3F SM5

ST 3F TP0

ST 4F LC4

ST 4F SM5

ST 4F TP0

Din-rail socket 24VDC, for relays 12 / 24 / 48 VDC,

with LED, protection and polarity diode, screw terminals

Din-rail socket 115 VAC / VDC with LED and

protection circuit, screw terminals

Din-rail socket 230 VAC / VDC with LED and

protection circuit, screw terminals

Din-rail socket 24VDC, for relays 12 / 24 / 48 VDC,

with LED, protection and polarity diode,

cage clamp terminals

Din-rail socket 115 VAC / VDC with LED and

protection circuit, cage clamp terminals

Din-rail socket 230 VAC / VDC with LED and

protection circuit, cage clamp terminals

Part Number

2-1416100-0

2-1416100-1

2-1416100-2

2-1416100-3

2-1416100-4

2-1416100-5

Version with

screw terminals

S0487-AA

Version with

cage clamp terminals

Datasheet

Rev. EK1

Issued 2005/11

www.tycoelectronics.com

www.schrackrelays.com

Dimensions are in mm unless

otherwise specified and are

shown for reference purposes

only.

Product specification

according to IEC 61810-1.

Product data, technical para-

meters, test conditions and

processing information

only to be used together

with the 'Definitions' at

schrackrelays.com in the

‘Schrack’ section.

Specifications subject to

change.
