CMPTA44BKLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> CMPTA44BKLEADFREE

CMPTA44BKLEADFREE: DescriptionSmall Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size33KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMPTA44BKLEADFREE Overview

Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,

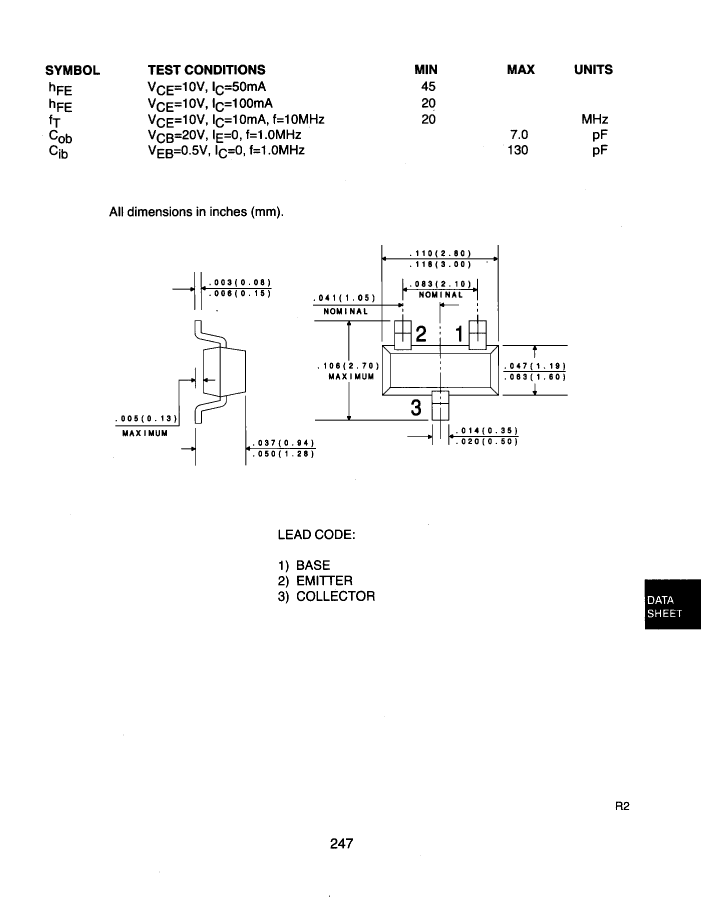

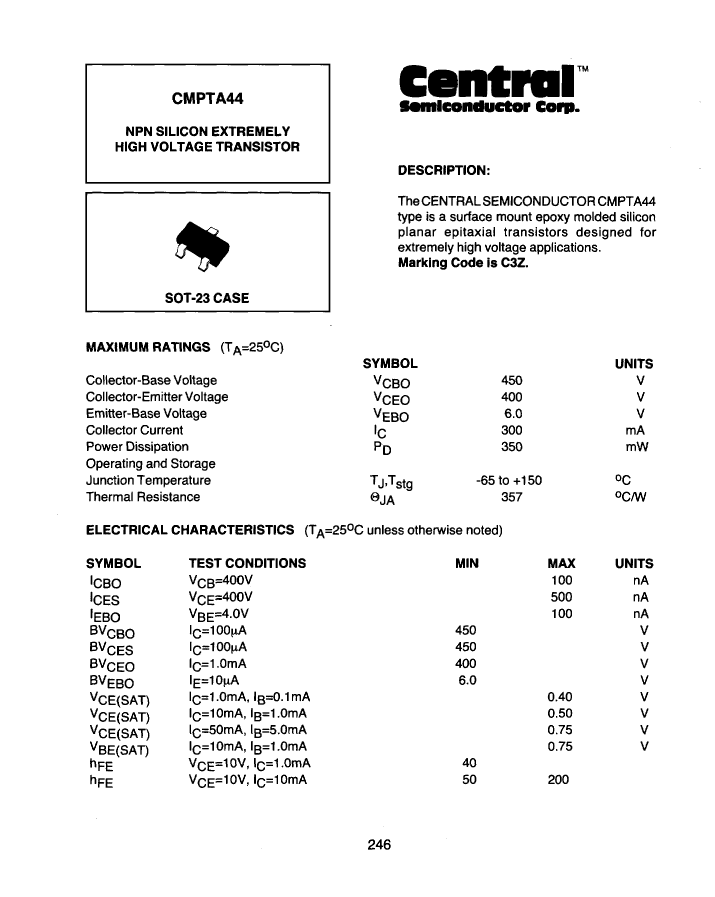

CMPTA44BKLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.3 A
Collector-based maximum capacity	7 pF
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.35 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Transistor component materials	SILICON
Nominal transition frequency (fT)	20 MHz
VCEsat-Max	0.75 V

Preview

Download Datasheet

View All

CMPTA44BKLEADFREE Related Products

	CMPTA44BKLEADFREE	CMPTA44TR	CMPTA44TRLEADFREE	CMPTA44BK	CMPTA44TR13	CMPTA44TR13LEADFREE
Description	Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.3A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon,
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	Contains lead	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible	conform to
Reach Compliance Code	compliant	not_compliant	compliant	not_compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Collector-based maximum capacity	7 pF	7 pF	7 pF	7 pF	7 pF	7 pF
Collector-emitter maximum voltage	400 V	400 V	400 V	400 V	400 V	400 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	30	30	30	30	30
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e0	e3	e0	e0	e3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED	260
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	TIN LEAD	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	NOT SPECIFIED	10	NOT SPECIFIED	NOT SPECIFIED	10
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
VCEsat-Max	0.75 V	0.75 V	0.75 V	0.75 V	0.75 V	0.75 V
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	-	SMALL OUTLINE, R-PDSO-G3
Maximum power dissipation(Abs)	0.35 W	0.35 W	0.35 W	0.35 W	-	-
Base Number Matches	-	1	1	1	1	-
