AT06-6S-MM01YEL datasheet, PDF

Datasheet> All Categories > The connector> The connector> AT06-6S-MM01YEL

AT06-6S-MM01YEL: DescriptionCombination Line Connector; CategoryThe connector The connector; File Size192KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

AT06-6S-MM01YEL Overview

Combination Line Connector

AT06-6S-MM01YEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

REVISIONS

REV

ECO

DESCRIPTION

RELEASE NEW DWG FORMAT

DATE

06JAN14

JARRY

APPR

20.6

TITLE:

REDUCED

DIAMETER SEAL

REQUIRES CONTACT

RETENTION WEDGE AW6S

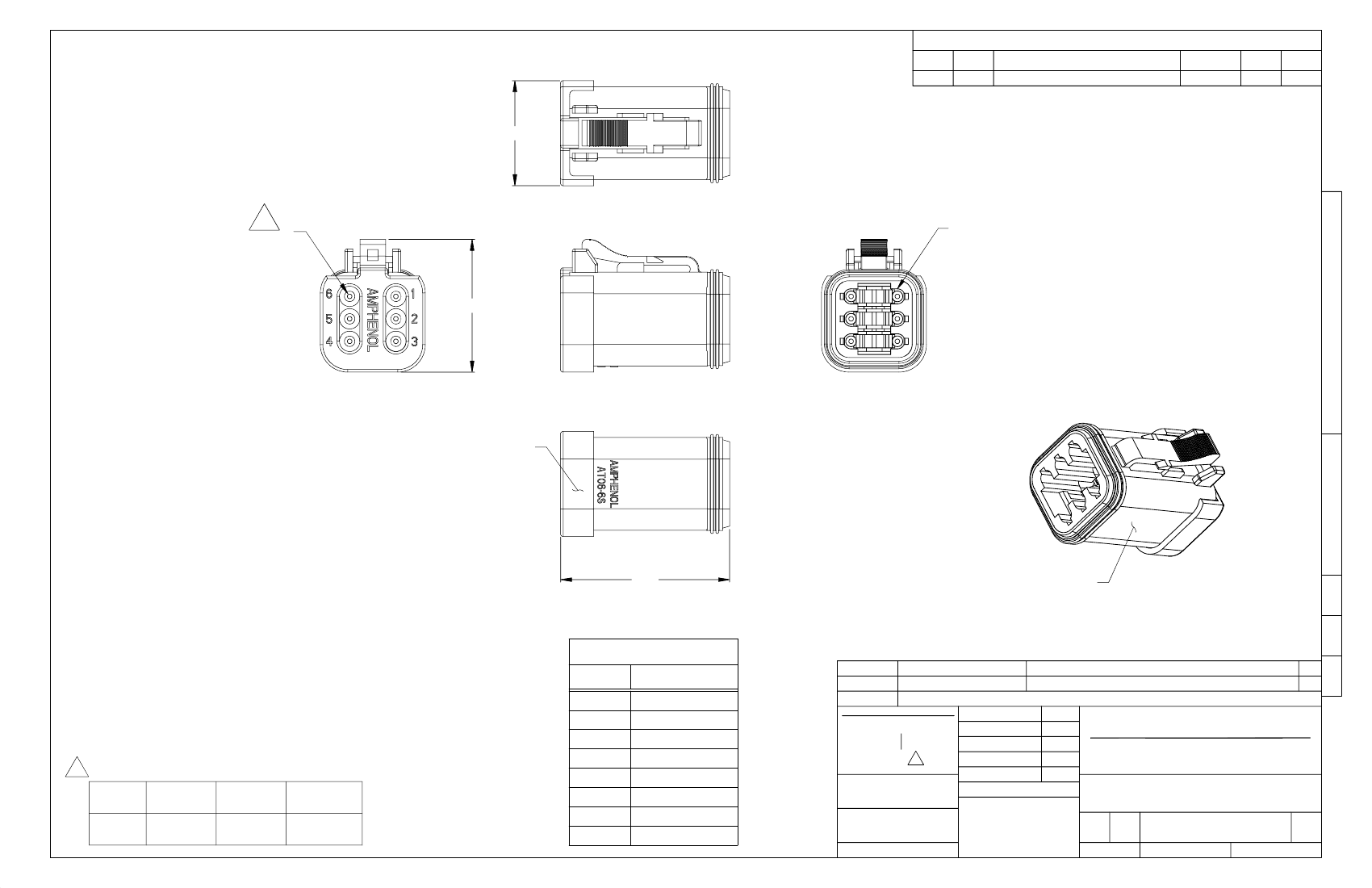

PLUG,6 SOCKET,AT SERIES,END CAP,REDUCED DIA WIRE SEAL

26.4

DWG NO:

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIAL:

HOUSING: THERMOPLASTIC

SEAL: SILICONE RUBBER

2. MODIFICATIONS: END CAP;

REDUCED DIA. WIRE SEAL

3. SPECIFICATIONS:

3.1 CURRENT RATING: 13 AMPS

3.2 OPERATING TEMPERATURE: -55°C TO +125°C

3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2

MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.

3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.

3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )

3.6 MATING CYCLE DURABILITY: 100 CYCLES

3.7 RoHS COMPLIANT

4. MATING PART: AT04-6P* RECEPTACLE

( * = MODIFICATIONS AND COLORS )

5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.

6 CONTACT SIZE AND REAR SEAL WIRE RANGE:

CONTACT

SIZE

MIN. INSUL

O.D.

1.35 mm

(.053 in)

MAX. INSUL

O.D.

3.05 mm

(.120 in)

TYPICAL

WIRE RANGE

14 - 20 AWG

END CAP

AT06-6S-MM01XXX

33.4

STANDARD MOLDED COLOR IS GREY.

ADDITIONAL COLORS SHOWN IN PART NUMBER

CHART ARE AVAILABLE VIA SPECIAL ORDER.

REV:

SH:

PART NUMBER CHART

OF:

COLOR

GREY

BLACK

BLUE

BROWN

GREEN

RED

WHITE

YELLOW

PART NUMBER

AT06-6S-MM01

AT06-6S-MM01BLK

AT06-6S-MM01BLU

AT06-6S-MM01BRN

AT06-6S-MM01GRN

AT06-6S-MM01RED

AT06-6S-MM01WHT

AT06-6S-MM01YEL

SEE PART NUMBER CHART

DESCRIPTION

PART NUMBER

QUANTITY

MATERIALS LIST

UNLESS OTHERWISE SPECIFIED

1) All dimensions are in metric(mm).

2) Tolerances are as follows:

1 PL DEC ±0.30

Fractions ±1/64

2 PL DEC ±0.15

Angles ±1°

3 PL DEC ±0.08

3) Note reference =

ITEM

SIGNATURES

DRAWN:

CHECKED:

ENGINEER:

APPROVAL:

DATE

JARRY

06JAN14

Amphenol

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

Clinton Township, MI 48036

MATERIAL SPECIFICATIONS:

CUSTOMER:

PROCESS SPECIFICATIONS:

NEXT ASS'Y:

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA SIZE

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

SCALE:

MANUFACTURING VARIATIONS.

PLUG, 6 SOCKET, AT SERIES, END CAP,

REDUCED DIAMETER WIRE SEAL

TYPE

DWG NO:

REVISION

B C-

NONE

AT06-6S-MM01XXX A3

SHEET
