REVISIONS
REV
A3
ECO
-
DESCRIPTION
RELEASE NEW DRAWING FORMAT
DATE
03JAN14
BY
JARRY
APPR
-
36.4
TITLE:

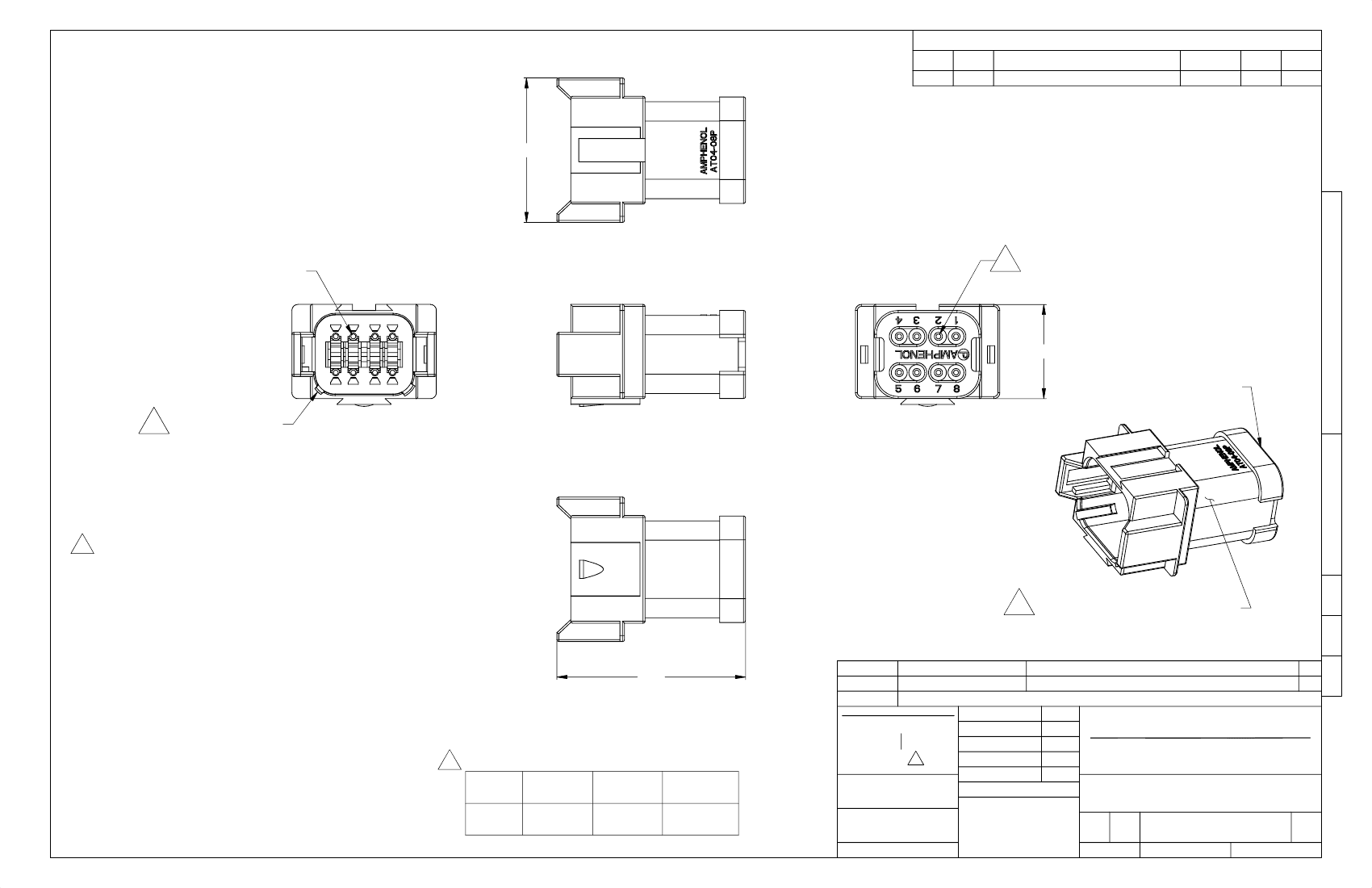

RECEPTACLE, 8 PIN, AT SERIES, KEYED, END CAP
REQUIRES CONTACT
RETENTION WEDGE AW8P
7
23.7
END CAP
1
KEYWAY (2) PLACES
DWG NO:
AT04-08PX-ECXXX
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
3. MODIFICATIONS: END CAP
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
5. MATING PART: AT06-08SX* PLUG
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
REV:
A3
1
REFER TO SHEET 2 FOR AVAILABLE
CONNECTOR COLORS
SH:
1
OF:
47.5
QUANTITY
SEE SHEET 2
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
DATE
JARRY
03JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT
SIZE
16
MIN. INSUL
O.D.
2.24 mm
(.088 in)
MAX. INSUL
O.D.
3.68 mm
(.145 in)
TYPICAL
WIRE RANGE
14 - 20 AWG
3) Note reference =
X
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
RECEPTACLE, 8 PIN, AT SERIES,
KEYED, END CAP
TYPE
DWG NO:
REVISION
B C-
NONE
AT04-08PX-ECXXX
SHEET
A3
OF
1
2
REVISIONS
REV
ECO
DESCRIPTION
DATE
BY
APPR

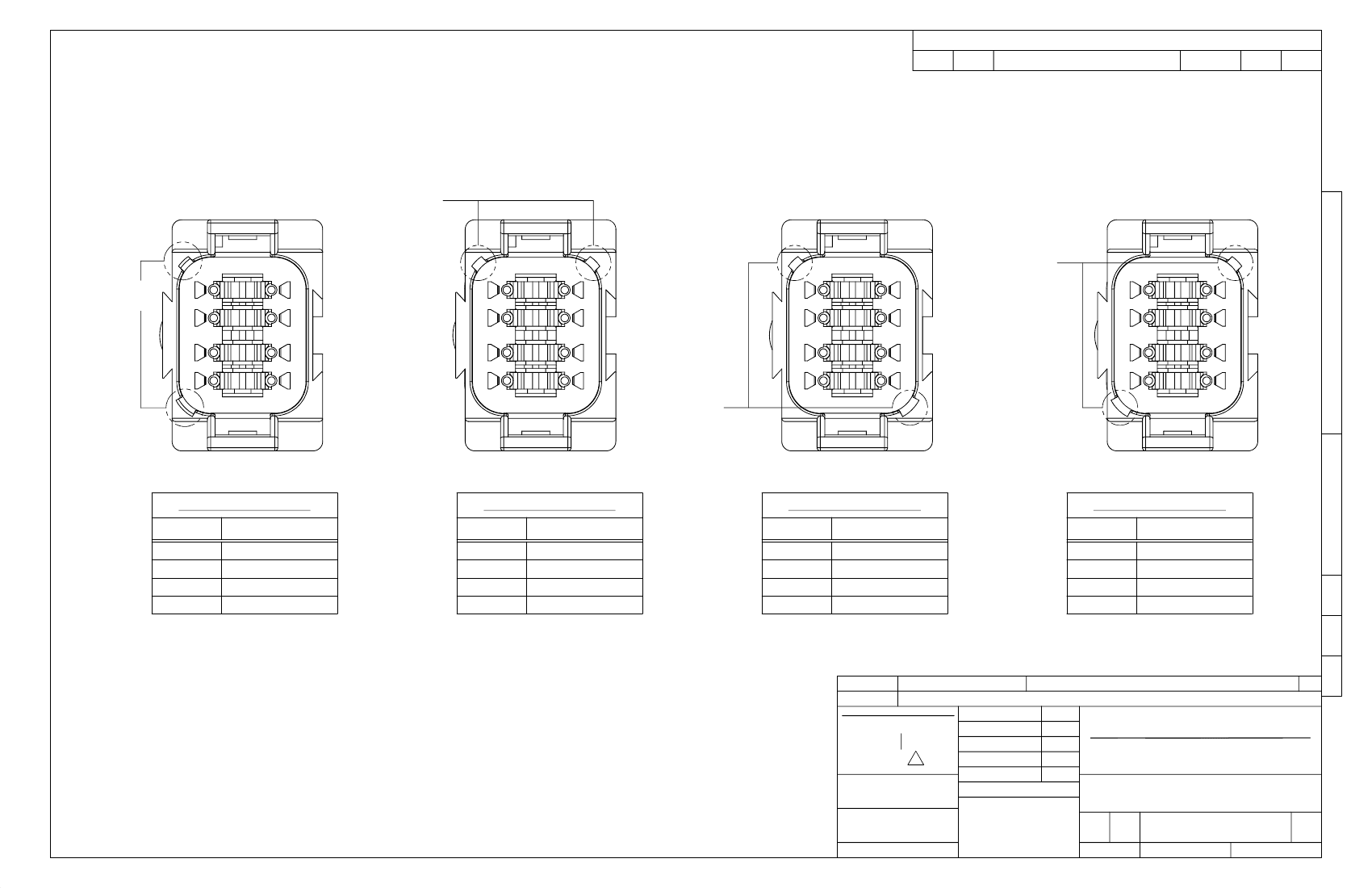

P/N AT04-08PA-EC01
KEY-A CONFIGURATION
STANDARD COLOR: GREY
KEYWAY
(2) PLACES
P/N AT04-08PB-EC01
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
P/N AT04-08PC-EC01
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
P/N AT04-08PD-EC01
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
TITLE:
RECEPTACLE, 8 PIN, AT SERIES, KEYED, END CAP
KEYWAY
(2) PLACES
KEYWAY
(2) PLACES
KEYWAY
(2) PLACES
DWG NO:
AT04-08PX-ECXXX
KEY-A CONFIGURATION
COLOR
GREY
*
BLACK
GREEN
BROWN
PART NUMBER
AT04-08PA-EC01
AT04-08PA-ECBLK
AT04-08PA-ECGRN
AT04-08PA-ECBRN
KEY-B CONFIGURATION
COLOR
GREY
PART NUMBER
AT04-08PB-ECGRY
AT04-08PB-EC01
AT04-08PB-ECGRN
AT04-08PB-ECBRN
KEY-C CONFIGURATION
COLOR
GREY
BLACK
GREEN
*
BROWN
PART NUMBER
AT04-08PC-ECGRY
AT04-08PC-ECBLK
AT04-08PC-EC01
AT04-08PC-ECBRN
KEY-D CONFIGURATION
COLOR
GREY
BLACK
GREEN
PART NUMBER
AT04-08PD-ECGRY
AT04-08PD-ECBLK
AT04-08PD-ECGRN
AT04-08PD-EC01
*
BLACK
GREEN
BROWN
REV:
A3
*
BROWN
SH:
2
NOTE:
AN ASTERISKS (
*
) PLACED BEFORE THE COLOR DENOTES THE STANDARD
MOLDED COLOR OF THE CONNECTORS SHOWN ABOVE.
OTHER COLORS SHOWN ARE AVAILABLE VIA SPECIAL ORDER.
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
OF:
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
DATE
JARRY
03JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
RECEPTACLE, 8 PIN, AT SERIES,
KEYED, END CAP
TYPE
DWG NO:
REVISION
B C-
NONE
AT04-08PX-ECXXX
SHEET
A3
OF
2
2
