REVISIONS
REV
A3
ECO
-
DESCRIPTION
RELEASE NEW DRAWING FORMAT
DATE
02JAN14
BY
JARRY
APPR
-
45.5
TITLE:

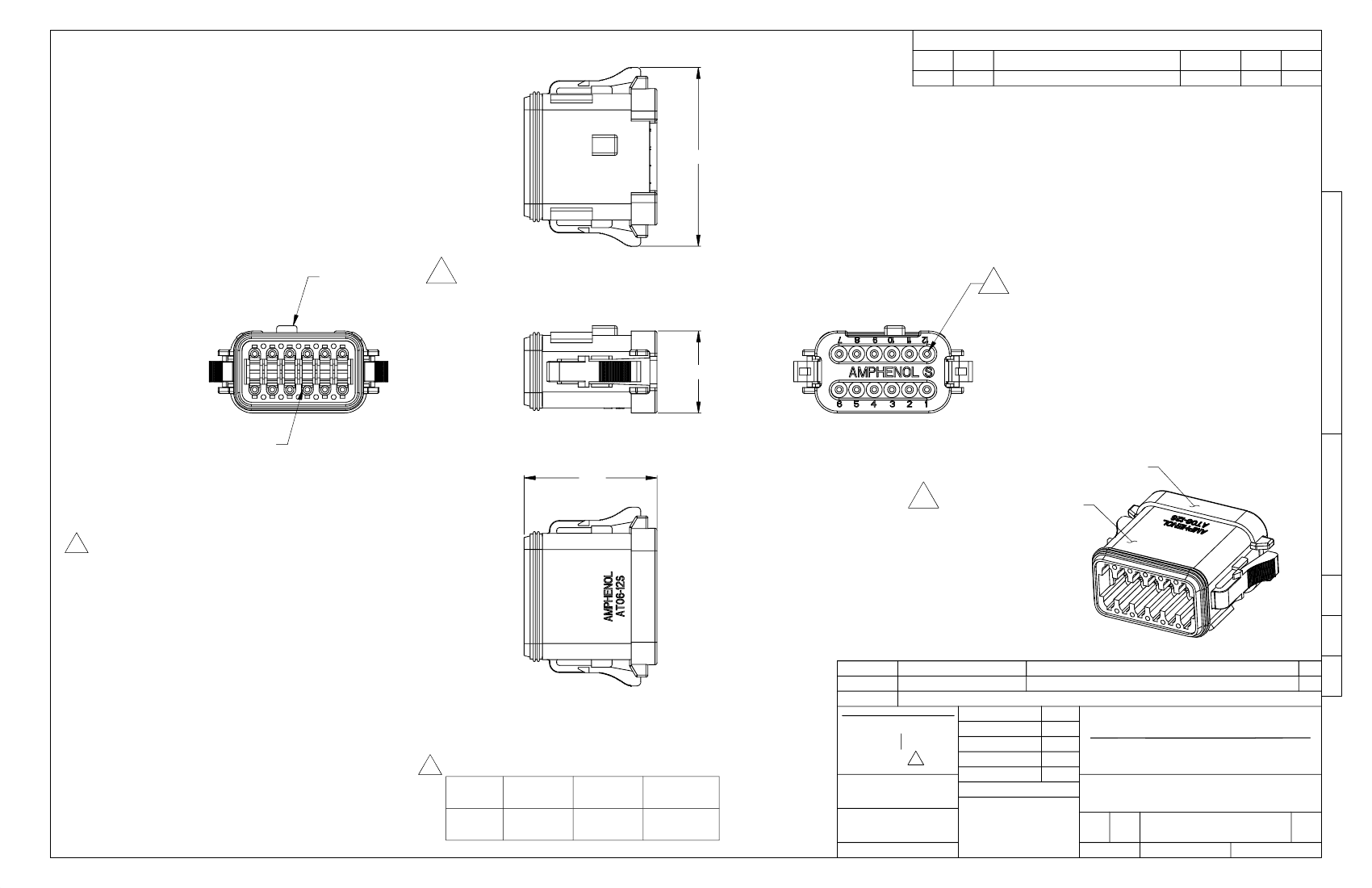

PLUG,12 SOCKET,AT SERIES,KEYED,END CAP
KEYED (3) PLACES
1
7
20.7
REQUIRES CONTACT
RETENTION WEDGE AW12S
END CAP
32.8
1 REFER TO SHEET 2 FOR
AVAILABLE CONNECTOR COLORS
DWG NO:
AT06-12SX-ECXXX
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
3. MODIFICATIONS: END CAP
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
5. MATING PART: AT04-12PX* RECEPTACLE
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
REV:
A3
SH:
1
OF:
QUANTITY
SEE SHEET 2
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
DATE
JARRY
02JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
MATERIAL SPECIFICATIONS:
CONTACT
SIZE
16
MIN. INSUL
O.D.
2.24 mm
(.088 in)
MAX. INSUL
O.D.
3.68 mm
(.145 in)
TYPICAL
WIRE RANGE
PROCESS SPECIFICATIONS:
CUSTOMER:
14 - 20 AWG
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 12 SOCKET, AT SERIES
KEYED, END CAP
TYPE
DWG NO:
REVISION
B C-
NONE
AT06-12SX-ECXXX
SHEET
A3
OF
1
2
REVISIONS
REV
ECO
DESCRIPTION
DATE
BY
APPR

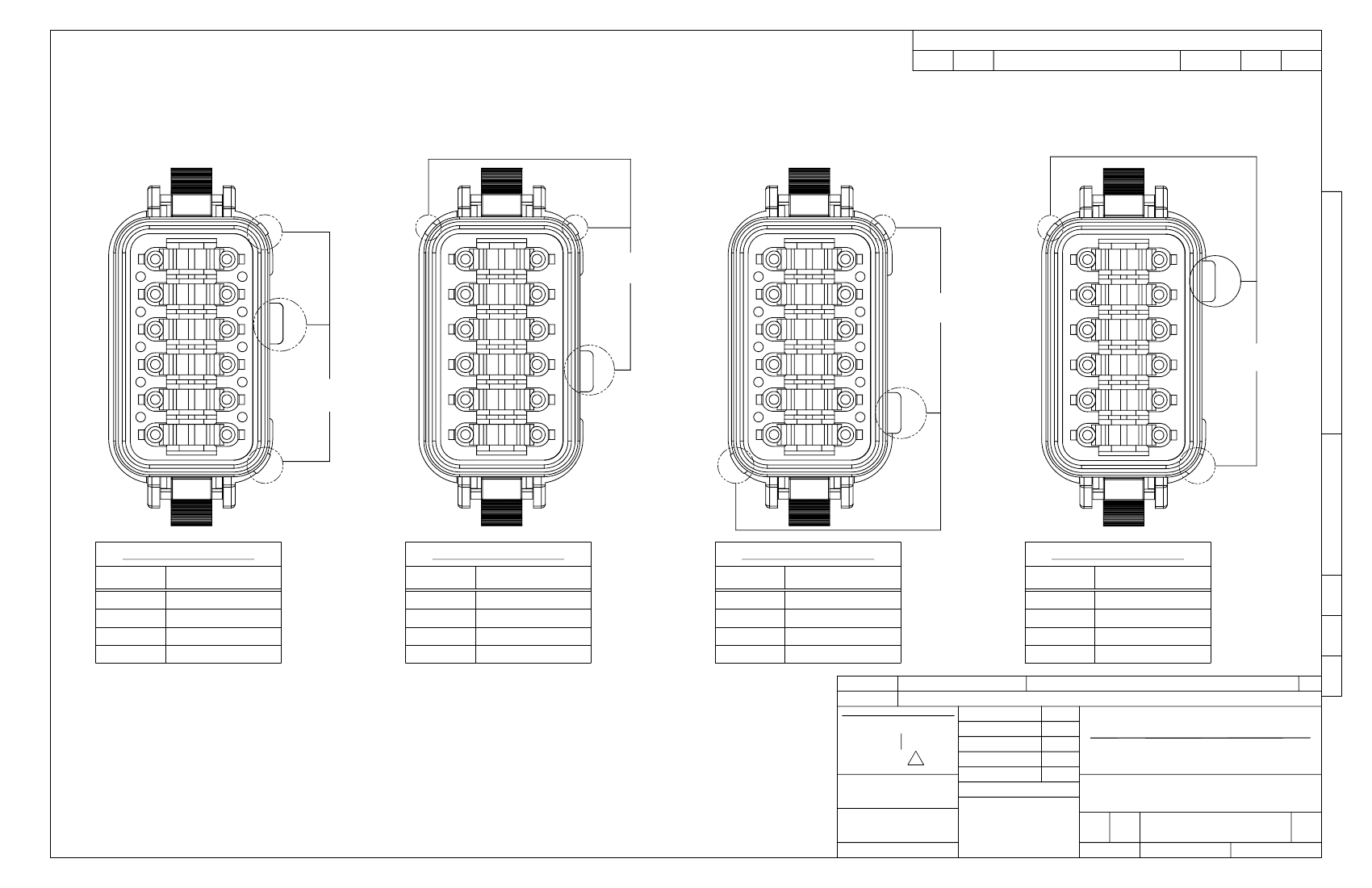

P/N AT06-12SA-EC01
KEY-A CONFIGURATION
STANDARD COLOR: GREY
P/N AT06-12SB-EC01
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
P/N AT06-12SC-EC01
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
P/N AT06-12SD-EC01
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
TITLE:
PLUG,12 SOCKET,AT SERIES,KEYED,END CAP
KEYED
(3) PLACES
KEYED
(3) PLACES
KEYED
(3) PLACES
KEYED
(3) PLACES
DWG NO:
AT06-12SX-ECXXX
KEY-A CONFIGURATION
COLOR
GREY
*
BLACK
GREEN
BROWN
PART NUMBER
AT06-12SA-EC01
AT06-12SA-ECBLK
AT06-12SA-ECGRN
AT06-12SA-ECBRN
KEY-B CONFIGURATION
COLOR
GREY
PART NUMBER
AT06-12SB-ECGRY
AT06-12SB-EC01
AT06-12SB-ECGRN
AT06-12SB-ECBRN
KEY-C CONFIGURATION
COLOR
GREY
BLACK
GREEN
*
BROWN
PART NUMBER
AT06-12SC-ECGRY
AT06-12SC-ECBLK
AT06-12SC-EC01
AT06-12SC-ECBRN
KEY-D CONFIGURATION
COLOR
GREY
BLACK
GREEN
PART NUMBER
AT06-12SD-ECGRY
AT06-12SD-ECBLK
AT06-12SD-ECGRN
AT06-12SD-EC01
REV:
A3
*
BLACK
GREEN
BROWN
SH:
2
*
BROWN
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
NOTE:
AN ASTERISKS (
*
) PLACED BEFORE THE COLOR DENOTES THE STANDARD
MOLDED COLOR OF THE CONNECTORS SHOWN ABOVE.
OTHER COLORS SHOWN ARE AVAILABLE VIA SPECIAL ORDER.
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
DATE
ITEM
2
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
X
JARRY
02JAN14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 12 SOCKET, AT SERIES
KEYED, END CAP
TYPE
DWG NO:
REVISION
B C-
NONE
AT06-12SX-ECXXX
SHEET
A3
OF
2
2
