REVISIONS
REV
A3
ECO
-
DESCRIPTION
RELEASE NEW DWG FORMAT
DATE
11DEC13
BY
DRP
APPR
-
21
TITLE:
6
REQUIRES CONTACT
RETENTION WEDGE AW4P
REDUCED DIAMETER
WIRE SEAL
RECEP, 4 PIN, AT, STRAIN RELIEF, REDUCED DIA WIRE SEAL
19.6
STRAIN RELIEF
END CAP -
BLACK - ALL
CONNECTORS
DWG NO:
NOTES: UNLESS OTHERWISE SPECIFIED
1. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
2. MODIFICATIONS: STRAIN RELIEF END CAP;
REDUCED DIA. WIRE SEAL
3. SPECIFICATIONS:
3.1 CURRENT RATING: 13 AMPS
3.2 OPERATING TEMPERATURE: -55°C TO +125°C
3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
3.6 MATING CYCLE DURABILITY: 100 CYCLES
3.7 RoHS COMPLIANT
4. MATING PART: AT06-4S* PLUG
( * = MODIFICATIONS AND COLORS )
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
6 CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT
SIZE
16
MIN. INSUL
O.D.
1.35 mm
(.053 in)
MAX. INSUL
O.D.
3.05 mm
(.120 in)
TYPICAL
WIRE RANGE
14 - 20 AWG
58.4
AT04-4P-SR02XXX
REV:
A3
REFER TO PART NUMBER CHART FOR
AVAILABLE CONNECTOR COLORS
PART NUMBER CHART
SEE PART NUMBER CHART
DESCRIPTION
PART NUMBER
QUANTITY
MATERIALS LIST
UNLESS OTHERWISE SPECIFIED
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
SH:
1
OF:
COLOR
GREY
BLACK
BLUE
BROWN
GREEN
RED
WHITE
YELLOW
PART NUMBER
AT04-4P-SR02GRY
AT04-4P-SR02BLK
AT04-4P-SR02BLU
AT04-4P-SR02BRN
AT04-4P-SR02GRN
AT04-4P-SR02RED
AT04-4P-SR02WHT
AT04-4P-SR02YEL
ITEM
1
DATE
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
D.PARKS
11DEC13
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.

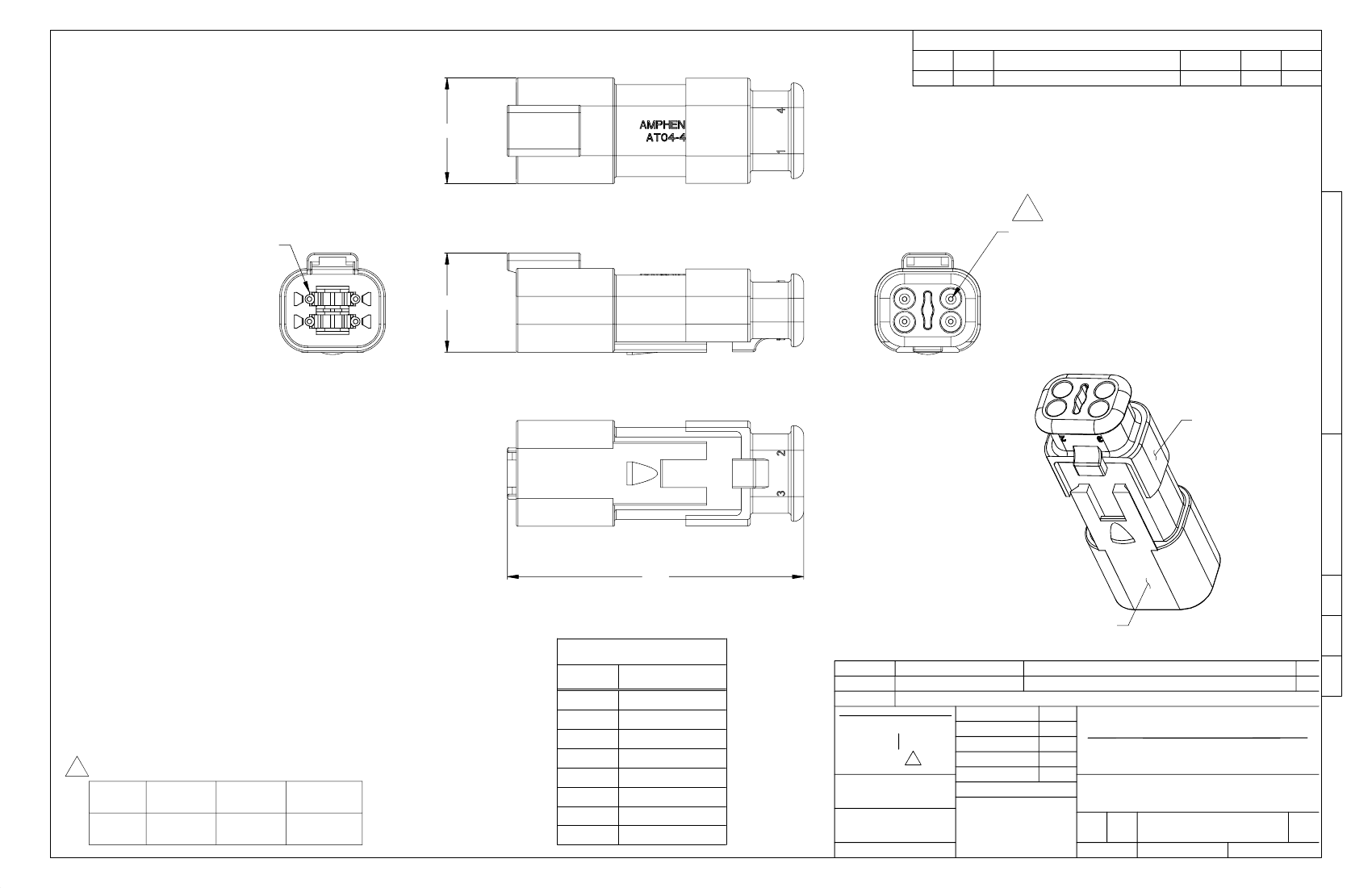

RECEPTACLE, 4 PIN, AT SERIES, STRAIN
RELIEF END CAP, REDUCED DIA. WIRE SEAL
TYPE
DWG NO:
REVISION
B C-
NONE
AT04-4P-SR02XXX
SHEET
A3
OF
1
1
