D101-7X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> D101-7X

D101-7X: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size65KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

D101-7X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D101-7X	-	-	View	Buy Now

D101-7X Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT

D101-7X Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-20 Cel
state	ACTIVE
Coil power	3000 mW
Relay action	MOMENTARY
Relay function	SPST
Manufacturer Series	D101X
Maximum AC coil current	0.0140 A
Maximum AC coil voltage	208 V
Maximum AC contact current	5 A
Maximum DC contact current	5 A
Maximum AC contact voltage	120 V
Maximum DC contact voltage	28 V
width	127 mm
high	88.9 mm
length or diameter	108 mm
Installation features	PANEL MOUNT
Relay type	POWER/SIGNAL RELAY
Terminal type	WIRE

Preview

Download Datasheet

View All

Voltage Sensitive Relays

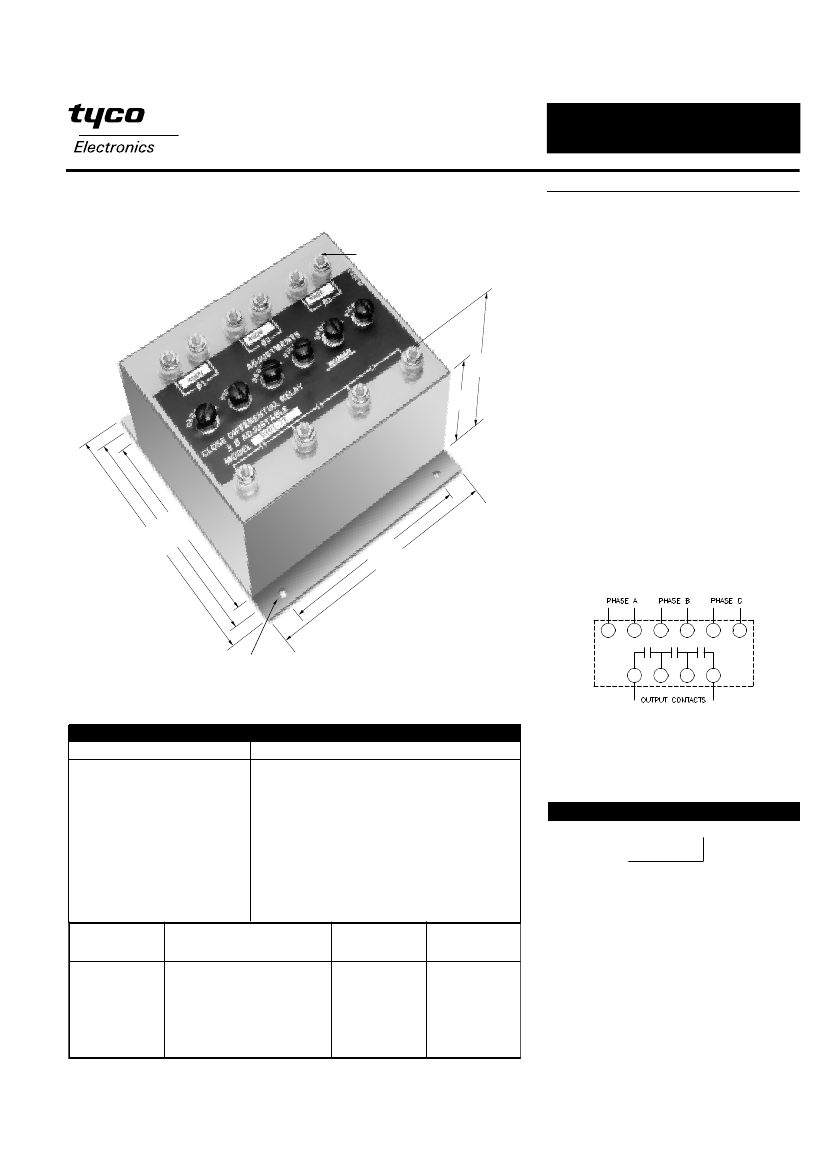

WILMAR™ Protective Relays – D101X Series,

3 Phase Adjustable, Close Differential

#6 - 32 STUDS

10 PLACES

Function:

•

ANSI/IEEE C37.90-1978

•

UL file No. E58048

•

CSA file No. LR61158

Close Differential Relays are voltage sensitive. The

pick-up and drop-out voltage settings are indepen-

dently adjustable, which allows precise setting of the

differential voltage. This relay is available in a wide

range of AC voltages. Their primary application is

the sensing and control of transfer switches.

Operation:

The output contacts will close when the voltage of

all three phases is above the pre-set pick-up point,

and will open when any one phase drops below its

drop-out setting.

Note:

Dimensions in inches. Multiply values by 25.4 for dimensions in mm.

/ DIA.

4 MTG. HOLES

13 64

PRODUCT SPECIFICATIONS

Part Number

Nominal Voltage ...............................

Nominal Frequency ..........................

Pick-Up Adjustment Range .............

Drop-Out Adjustment Range ...........

Output Contacts ...............................

Contact Ratings ................................

Operating Temperature Range ........

D101X

AC, Three Phase, see part number selection

50 to 500 Hz.

66-100% of nominal voltage, screwdriver adjustable

SPNO

5 amp resistive at 120 VAC or 28 VDC

-20°C to +85°C

Model: L-L Volts

D101X = 120 VAC

D101-6X = 208 VAC

D101-4X = 240 VAC

D101-10X = 380 VAC

D101-7X = 480 VAC

PART NUMBER SELECTION

Sample Part No.

D101X

Model

Power Consumption

Each Phase

2 VA max.

3 VA max.

4 VA max.

(inches)

1/2

(inches)

11/16

3/16

D101X

D101-4X

D101-6X

D101-7X

D101-10X

Notes:

1. Remove screws for access to pick-up and drop-out

trip adjustments.

2. Clockwise rotation of the pick-up and drop-out

adjustment will raise the voltage trip point.

Consult factory for additional models.

Tyco Electronics

/ www.tycoelectronics.com / Factory Direct Technical Support: 800-253-4560, ext. 2023 (U.S., Canada, Mexico) or 805-220-2020, ext. 2023 (International)

D101-7X Related Products

	D101-7X	D101-10X	D101-4X	D101-6X	D101X
Description	POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 3000mW (COIL), 5A (CONTACT), 28VDC (CONTACT), PANEL MOUNT
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Coil power	3000 mW	3000 mW	3000 mW	3000 mW	3000 mW
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPST	SPST	SPST	SPST	SPST
Manufacturer Series	D101X	D101X	D101X	D101X	D101X
Maximum AC coil current	0.0140 A	0.0140 A	0.0140 A	0.0140 A	0.0140 A
Maximum AC coil voltage	208 V	208 V	208 V	208 V	208 V
Maximum AC contact current	5 A	5 A	5 A	5 A	5 A
Maximum DC contact current	5 A	5 A	5 A	5 A	5 A
Maximum AC contact voltage	120 V	120 V	120 V	120 V	120 V
Maximum DC contact voltage	28 V	28 V	28 V	28 V	28 V
width	127 mm	127 mm	127 mm	127 mm	127 mm
high	88.9 mm	88.9 mm	88.9 mm	88.9 mm	88.9 mm
length or diameter	108 mm	108 mm	108 mm	108 mm	108 mm
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
Terminal type	WIRE	WIRE	WIRE	WIRE	WIRE
