5625-E-0500: DescriptionOff-Delay Relay, SPDT, Momentary, 0.1A (Coil), 28VDC (Coil), 2800mW (Coil), 5A (Contact), 30VDC (Contact), 0.005s Adj Min, 0.05s Adj Max, 0.05s, DC Input, AC/DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size424KB，2 Pages; ManufacturerHi-G Relays

Download Datasheet Parametric View All

5625-E-0500 Overview

Off-Delay Relay, SPDT, Momentary, 0.1A (Coil), 28VDC (Coil), 2800mW (Coil), 5A (Contact), 30VDC (Contact), 0.005s Adj Min, 0.05s Adj Max, 0.05s, DC Input, AC/DC Output, Panel Mount,

5625-E-0500 Parametric

Parameter Name	Attribute value
Maker	Hi-G Relays
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum adjustable time delay	0.05 s
Minimum adjustable time delay	0.005 s
body width	39.17 mm
body height	46.02 mm
Body length or diameter	39.17 mm
Maximum coil current (DC)	0.1 A
Coil power	2800 mW
Coil resistance	280 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	3A@115VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@30VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
timed delay	0.05 s
Manufacturer's serial number	5600
Installation features	PANEL MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	39.17mm X 39.17mm X 46.02mm
Guideline	MIL-R-83726
Relay action	MOMENTARY
Relay function	SPDT
Relay type	OFF-DELAY RELAY
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER HOOK

Preview

Download Datasheet

View All

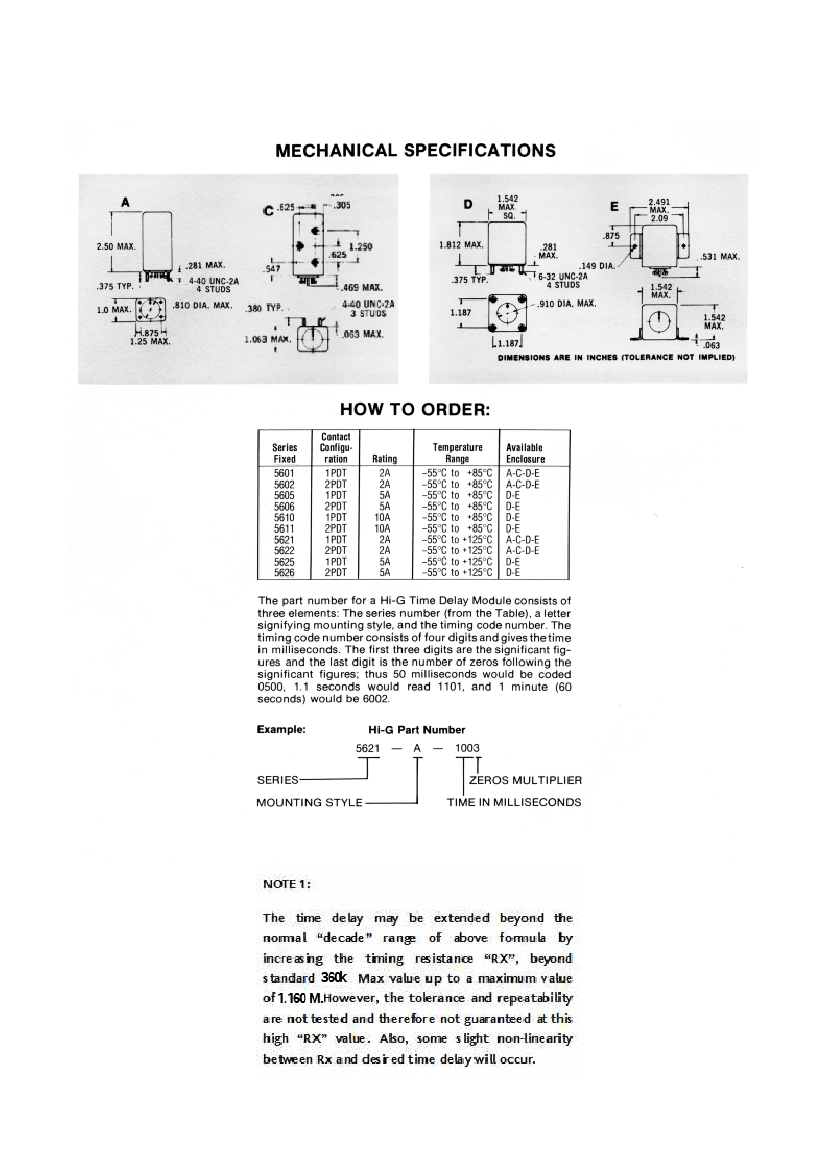

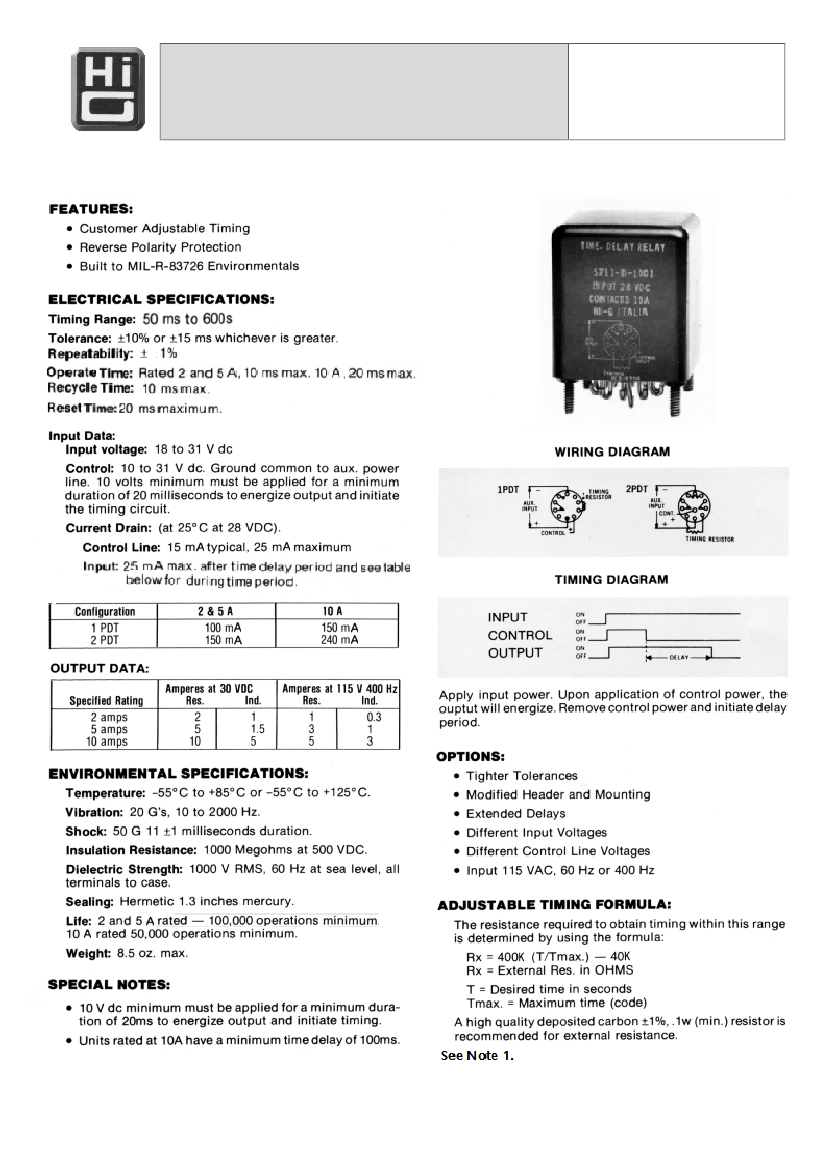

DELAY ON RELEASE

ADJUSTABLE TIMING

RELAY OUTPUT

5700

Hi-G ITALIA S.r.l.

Tel: + 39 06 9699666

SS. Appia Km. 56.420

Fax: + 39 069698688

Cisterna di Latina - Italy

T9

REV. 03/2007
