SM6557: Description10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size202KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

SM6557 Overview

10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN

SM6557 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

TM6557 / SM6557*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 500.0 MHz

15.0 dB Typical

13.5 dB Min

4.5 dB Typical

6.5 dB Max

15.5 dBm Typical

14.0 dBm Min

30.0 dBm Typical

38.0 dBm Typical

1.2/2.0 Input Typ/Max

1.2/2.0 Output Typ/Max

-18.0 dB Typical

-16.0 dB Min

15.0 Volts

44.0 mA

-55.0 - 85.0 °C

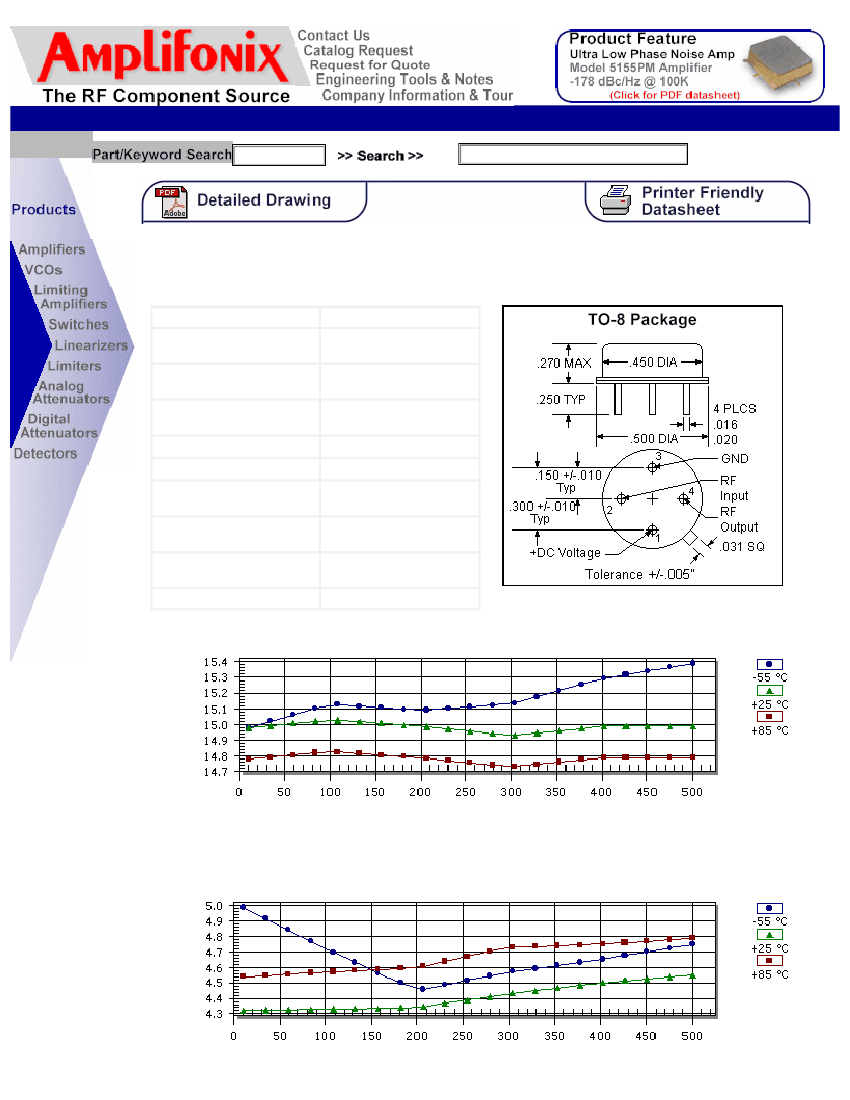

Package Drawing

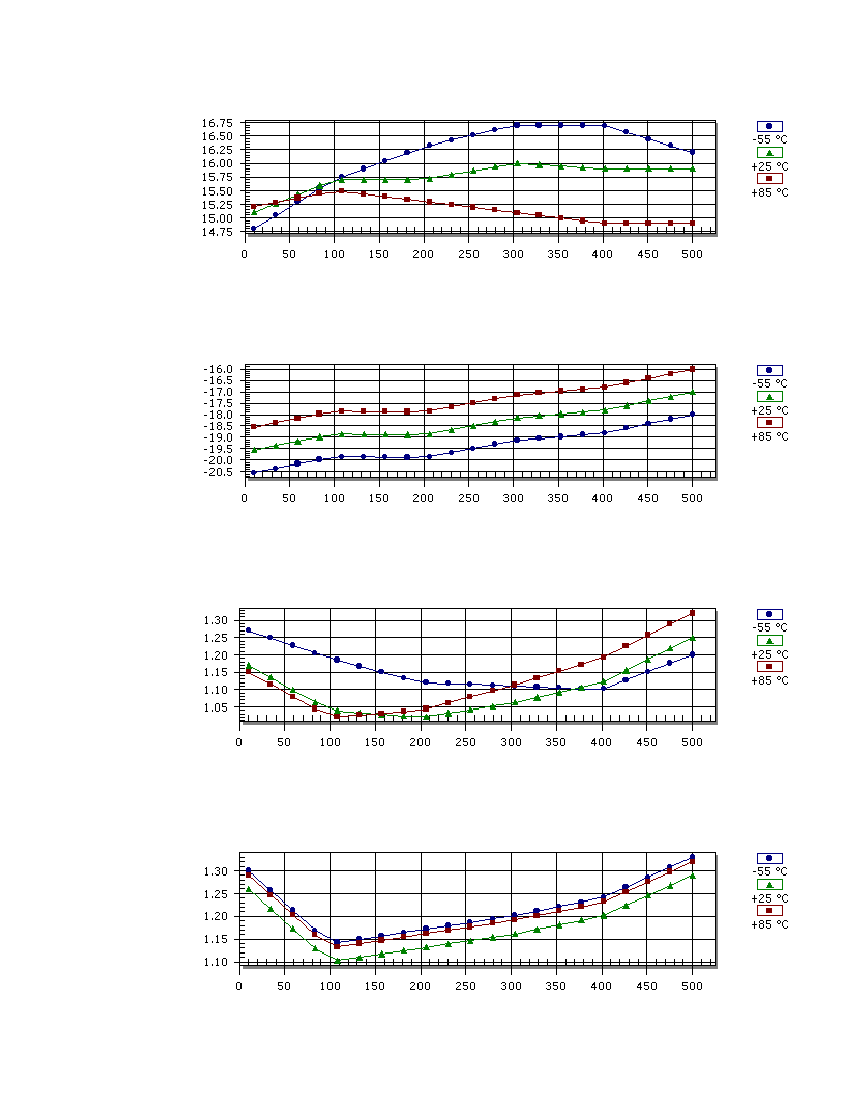

Gain

Frequency (MHz)

Noise Figure
