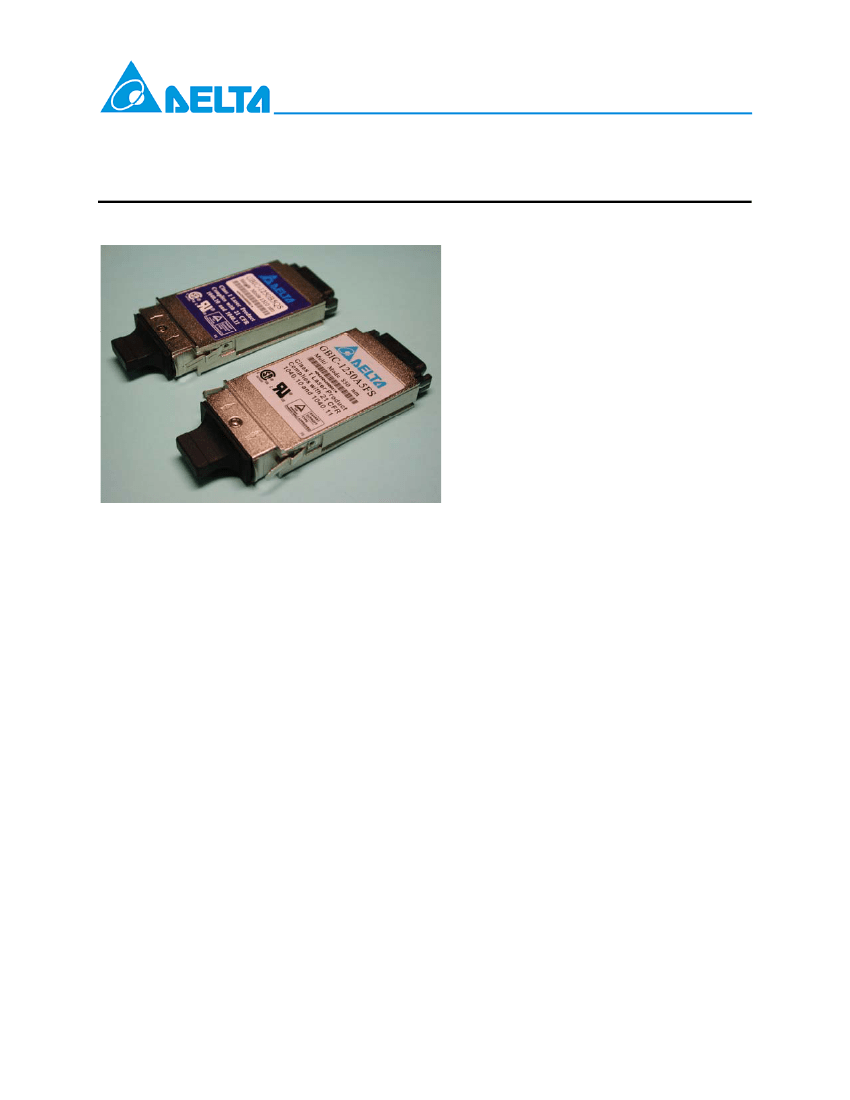

GBIC-1250A5FR
RoHS Compliant 1250Mbps
Gigabit Interface Converters (GBIC)
Transceiver Module for Gigabit Ethernet
GBIC-1250A5FR
Features
Compliant with Gigabit Interface
Converter (GBIC) Revision 5.4
Compliant with proposed specifications
for IEEE 802.3z/Gigabit Ethernet.
Dual 5V and 3.3V Power Supply
Operation
TTL Logic TX_DISABLE / TX_FAULT /
RX_LOS functions
Class 1 Laser Product Compliant with
the Requirements of IEC 60825-1 and
IEC 60825-2
Hot-Pluggable
RoHS Compliant per Directive
2002/95/EEC
Description
The GBIC-1250A5FR is compliant with GBIC interface
converters specification Rev. 5.4. as well as Gigabit
Ethernet standard as specified in IEEE 802.3.
Delta’s GBIC transceiver family uses a 20-pin connector
to allow hot plug capability. The system designer can
make configuration changes or maintenance simply by
plugging in different type of converters without removing
the power supply from the host system.
Applications
1.25 Gigabit Ethernet
Fiber Channel
Switch to Switch Interface
File server interface
Performance
GBIC-1250A5FR:
850nm VCSEL, up to 550m in 50/125um OM2
MMF
1
DELTA ELECTRONICS, INC.
2008/1/23
Rev. 0A
www.deltaww.com
GBIC-1250A5FR
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage
Symbol
Ts
V
CC
Min.
-40
0
Typ.
Max.
85
6
Unit
ºC
V
Notes
Recommended Operating Conditions
Parameter
Ambient Operating Temperature
Supply voltage
Total Supply Current
Data Output Load
Relative Humidity (non condensation)
Symbol
T
A
Vcc
I
S
R
DL
-
Min.
Typ.
-5
3.15 / 4.75 3.3 / 5
75
5
Max.
Unit
℃
70
3.45 / 5.25 V
300
mA
Ω
85
%
Notes
Transmitter Electro-Optical Performance Specifications:
(T
A
=-5 °C to 70 °C, V
CC
=3.15V to 3.45V or V
CC
=4.75V to 5.25V)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Note
Transmitter
Transmitter Differential Input Voltage
V
DT
0.5
2.4
V
1
Transmitter Disable Input-High
V
DISH
2
V
CC
+0.3
V
Transmitter Disable Input-Low
V
DISL
0
0.8
V
Transmitter Fault Pull up Resistor
R
TX_FAULT
4.7
10
kΩ
2
Transmitter Fault Output-High
V
TXFH
2
V
CC
+0.3
V
2
Transmitter Fault Output-Low
V
TXFL
0
0.8
V
2
Receiver
Receiver Differential Output Voltage
V
DR
0.35
2
V
3
Receiver LOS Load
R
RXLOS
4.7
10
kΩ
2
LOS Output Voltage-High
V
LOSH
2
V
CC
+0.3
V
2
LOS Output Voltage-Low
V
LOSL
0
0.8
V
2
Output Dara Rise / Fall Time
t
r
/ t
f
350
psec
4
Notes:
1. Internally AC coupled and terminated to 150Ohm differential load.
2. Pull up to V
CC
on host Board
3. Internally AC coupled, but requires a 150Ohm differential termination at or internal to Serializer/
Deserializer.
4. These are 20%~80% values.
2
DELTA ELECTRONICS, INC.
2008/1/23
Rev. 0A
www.deltaww.com
GBIC-1250A5FR
Optical Characteristics
(T
A
=-5 °C to 70 °C, V
CC
=3.15V to 3.45V or V
CC
=4.75V to 5.25V, Data Rate=1250Mb/sec, PRBS=2
7
-1NRZ)
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Transmitter
Average Launched Power
P
O
-9.5
-4
dBm
Optical extinction ratio
ER
9
dB
λ
C
Center wavelength
830
860
nm
Spectral Width
0.85
nm
σ
Optical Rise/ Fall Time
t
r
/t
f
260
psec
1
Receiver
Optical input sensitivity (avg.)
P
IN
-17
dBm
2
Optical input saturation (avg.)
P
SAT
-3
dBm
λ
C
830
860
nm
Optical Wavelength
Signal Detect- Assert
Signal Detect- Deassert
Signal detect- Hysteresis
P
A
P
D
P
A
-P
D
-30
0.5
-17
dBm
dBm
dB
Note:
1. These are 20%~80% values.
2. The sensitivity is provided at a BER of 1×10
-12
or better with an input signal consisting of 1250Mb/s, 2
7
-1 PRBS and ER=9dB.
1+ 3
Y
Normalized Amplitude
1
1-Y1
0.5
Y1
0
-Y2
0
X1 X2
1-X2 1-X1
1
Normalize
d Time
3
DELTA ELECTRONICS, INC.
2008/1/23
Rev. 0A
www.deltaww.com
GBIC-1250A5FR
Pin Out Table
Pin Name
RX_LOS
RGND
RGND
MOD_DEF(0)
MOD_DEF(1)
MOD_DEF(2)
TX_DISABLE
TGND
TGND
TX_FAULT
Pin#
1
2
3
4
5
6
7
8
9
10
Sequence
2
2
2
2
2
2
2
2
2
2
Sequence
1
1
1
1
2
2
1
1
1
1
Pin#
11
12
13
14
15
16
17
18
19
20
Pin Name
RGND
-RX_DAT
+RX_DAT
RGND
VDDR
VDDT
TGND
+TX_DAT
-TX_DAT
TGND
Overview of internal interface signal Definition
Pin Name
Pin #
Name/Function
Signal Specification
Receiver Signals
RGND
VDDR
-RX_DAT
+RX_DAT
RX_LOS
2,3,11,14 Receiver Ground (may be connected with TGND in GBIC)
15
12
13
1
Receiver +5 volt (may be connected with VDDT in GBIC)
Receive Data, Differential PECL
Receive Data, Differential PECL
Receiver Loss of Signal, logic high, open collector
compat-ible,4.7 K to 10 K Ohm pullup to VDDT on host
Ground, to GBIC
Power, to GBIC
High speed serial, from
GBIC
High speed serial, from
GBIC
Low speed, from GBIC
Transmitter Signals
TGND
VDDT
+TX_DAT
-TX_DAT
TX_DISABLE
TX_FAULT
Control Signals
MOD_DEF(0)
MOD_DEF(1)
MOD_DEF(2)
4
5
6
GBIC module definition and presence, bit 0,4.7 K to 10 K Ohm
pullup to VDDT on host
GBIC module definition and presence, bit 1,4.7 K to 10 K Ohm
pullup to VDDT on host
GBIC module definition and presence, bit 2,4.7 K to 10 K Ohm
pullup to VDDT on host
Low speed, from GBIC
Low speed, from GBIC
Low speed, from GBIC
8,9,17,20 Transmitter Ground (may be connected with RGND internally) Ground, to GBIC
16
18
19
7
10
Transmitter +5 volt (may be connected with VDDR in GBIC)
Transmit Data, Differential PECL
Transmit Data, Differential PECL
Transmitter Disable, logic high, open collector compatible,4.7
K to 10 K Ohm pullup to VDDT on GBIC
Transmitter Fault, logic high, open collector compatible,4.7 K
to 10 K Ohm pullup to VDDT on host
Power, to GBIC
High speed serial, to GBIC
High speed serial, to GBIC
Low speed, to GBIC
Low speed, from GBIC
4
DELTA ELECTRONICS, INC.
2008/1/23
Rev. 0A
www.deltaww.com
GBIC-1250A5FR

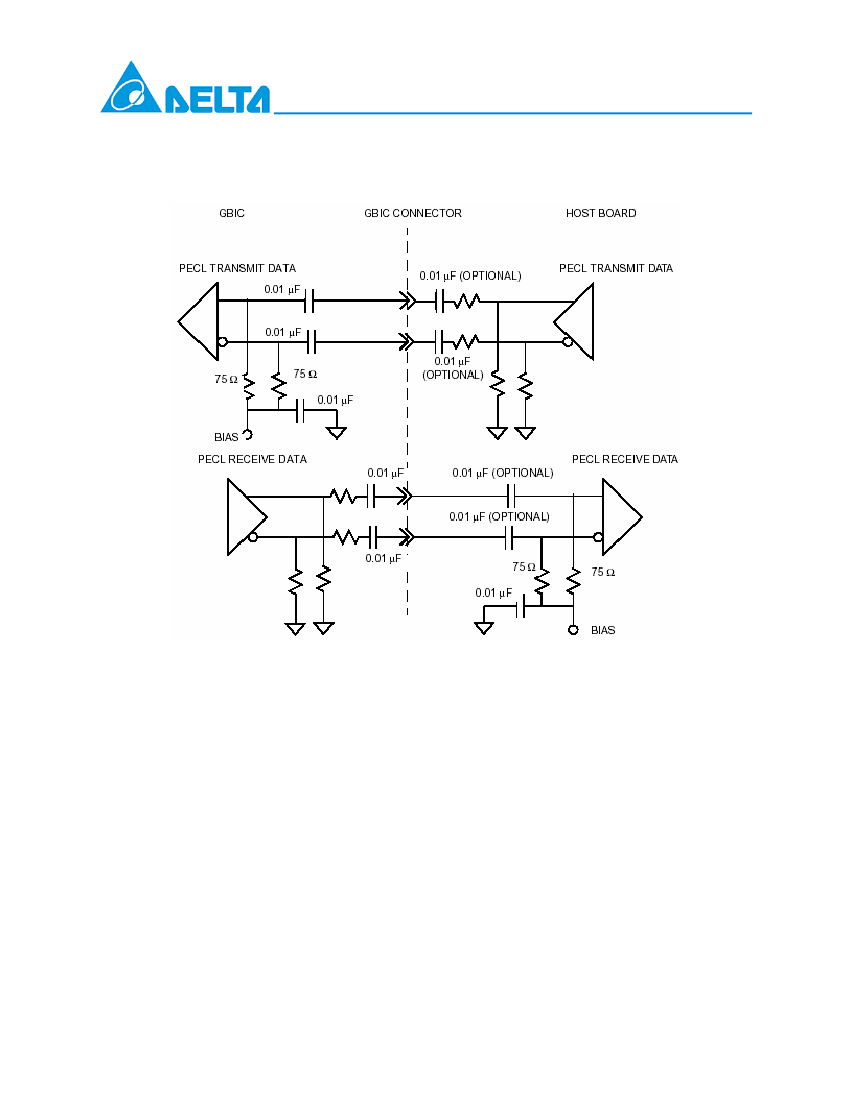

Recommend Circuit Schematic
5
DELTA ELECTRONICS, INC.
2008/1/23
Rev. 0A
www.deltaww.com
