SSM6P25TU(5LOMII,F datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> SSM6P25TU(5LOMII,F

SSM6P25TU(5LOMII,F: DescriptionSmall Signal Field-Effect Transistor, 0.5A I(D), 20V, 2-Element, P-Channel, Silicon, Metal-Oxide Semiconductor FET; CategoryDiscrete semiconductor The transistor; File Size186KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

SSM6P25TU(5LOMII,F Overview

Small Signal Field-Effect Transistor, 0.5A I(D), 20V, 2-Element, P-Channel, Silicon, Metal-Oxide Semiconductor FET

SSM6P25TU(5LOMII,F Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F6
Reach Compliance Code	unknown
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	20 V
Maximum drain current (ID)	0.5 A
Maximum drain-source on-resistance	0.43 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-F6
Number of components	2
Number of terminals	6
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	P-CHANNEL
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

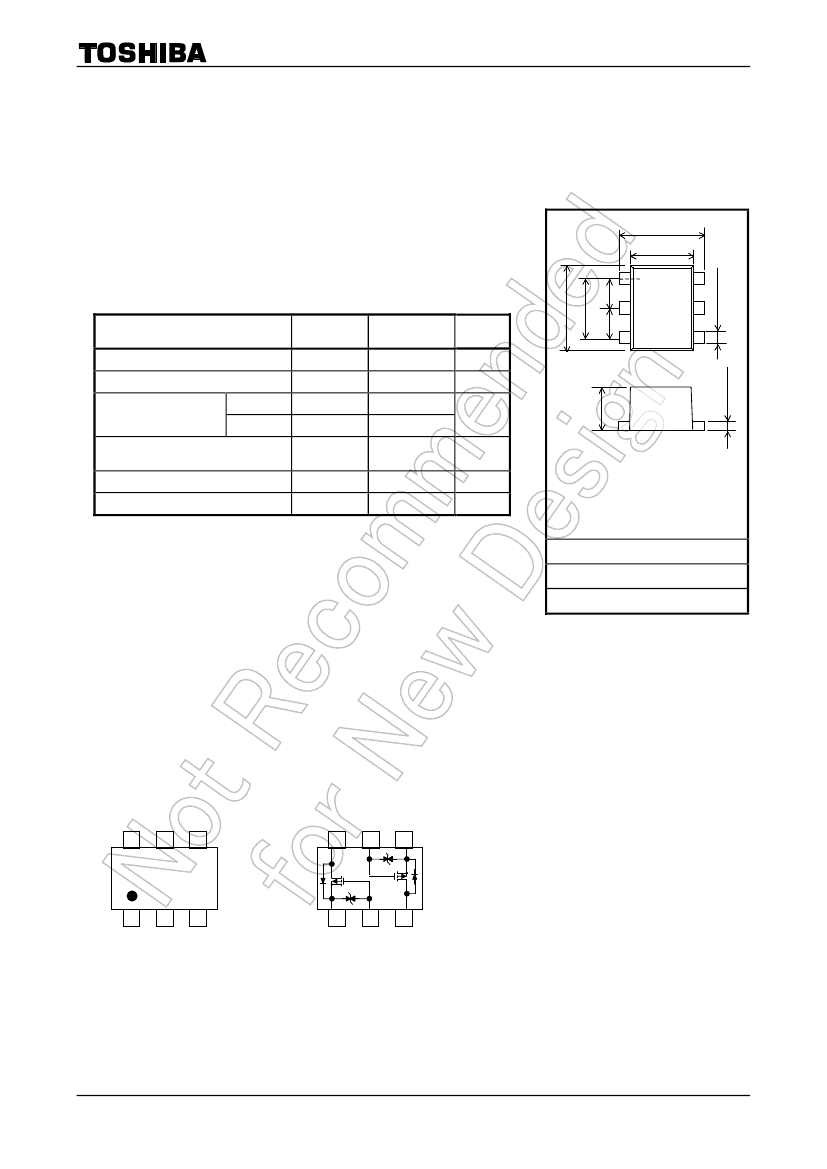

SSM6P25TU

TOSHIBA Field Effect Transistor

Silicon P Channel MOS Type (U-MOSIII)

SSM6P25TU

High Speed Switching Applications

•

Optimum for high-density mounting in small packages

Low on-resistance:

= 260mΩ (max) (@V

= -4 V)

= 430mΩ (max) (@V

= -2.5 V)

2.1±0.1

1.7±0.1

0.65 0.65

+0.1

0.3-0.05

Unit: mm

2.0±0.1

1.3±0.1

(Q1, Q2 Common)

Absolute Maximum Ratings

(Ta = 25°C)

Characteristics

Drain-Source voltage

Gate-Source voltage

Drain current

Drain power dissipation

Channel temperature

Storage temperature range

Pulse

Symbol

GSS

(Note 1)

Rating

-20

-0.5

-1.5

500

150

−55

to 150

Unit

°C

0.7±0.05

stg

1.Source1

2.Gate1

3.Drain2

4.Source2

5.Gate2

6.Drain1

Note:

UF6

Using continuously under heavy loads (e.g. the application of

high temperature/current/voltage and the significant change in

JEDEC

―

temperature, etc.) may cause this product to decrease in the

JEITA

―

reliability significantly even if the operating conditions (i.e.

operating temperature/current/voltage, etc.) are within the

TOSHIBA

2-2T1B

absolute maximum ratings.

Weight: 7.0 mg (typ.)

Please design the appropriate reliability upon reviewing the

Toshiba Semiconductor Reliability Handbook (“Handling

Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and

estimated failure rate, etc).

Note 1: Mounted on FR4 board. (total dissipation)

(25.4 mm

25.4 mm

1.6 t, Cu Pad: 645 mm )

Marking

Equivalent Circuit

(top view)

Handling Precaution

When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is

protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects

that come into direct contact with devices should be made of anti-static materials.

Start of commercial production

2004-03

2014-03-01

+0.06

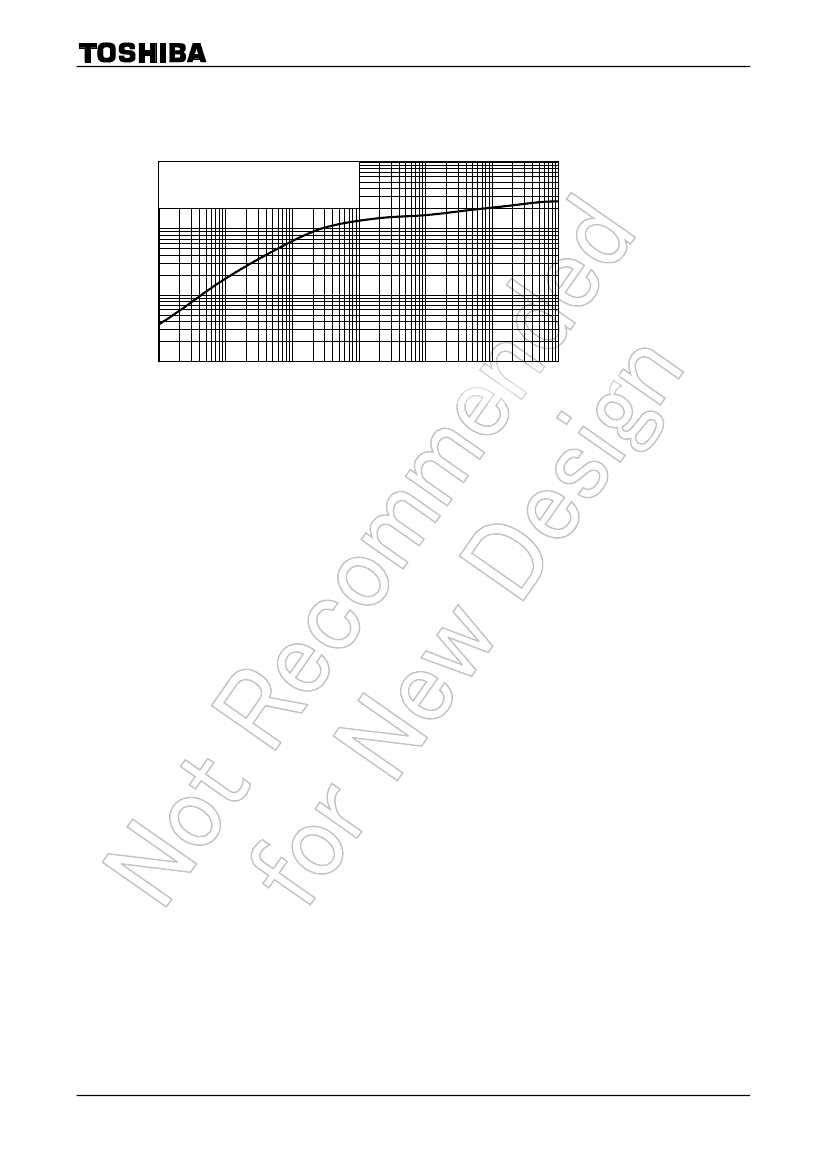

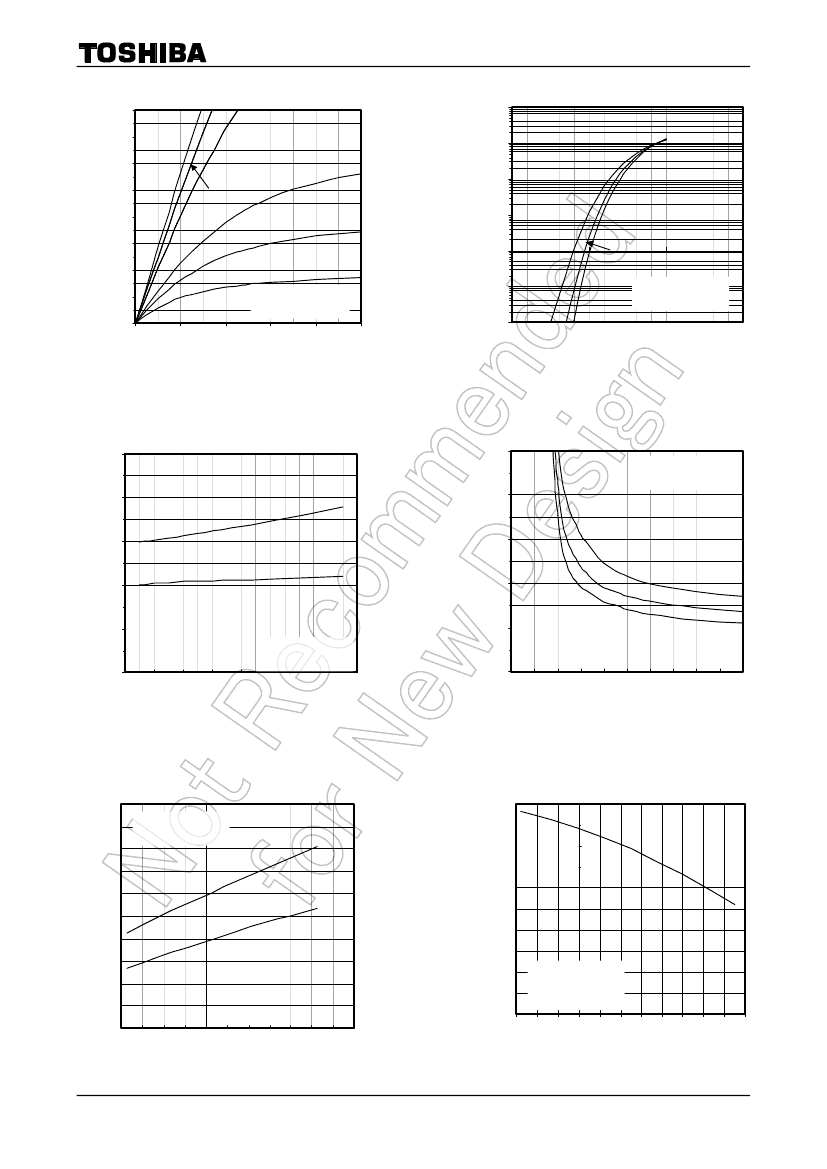

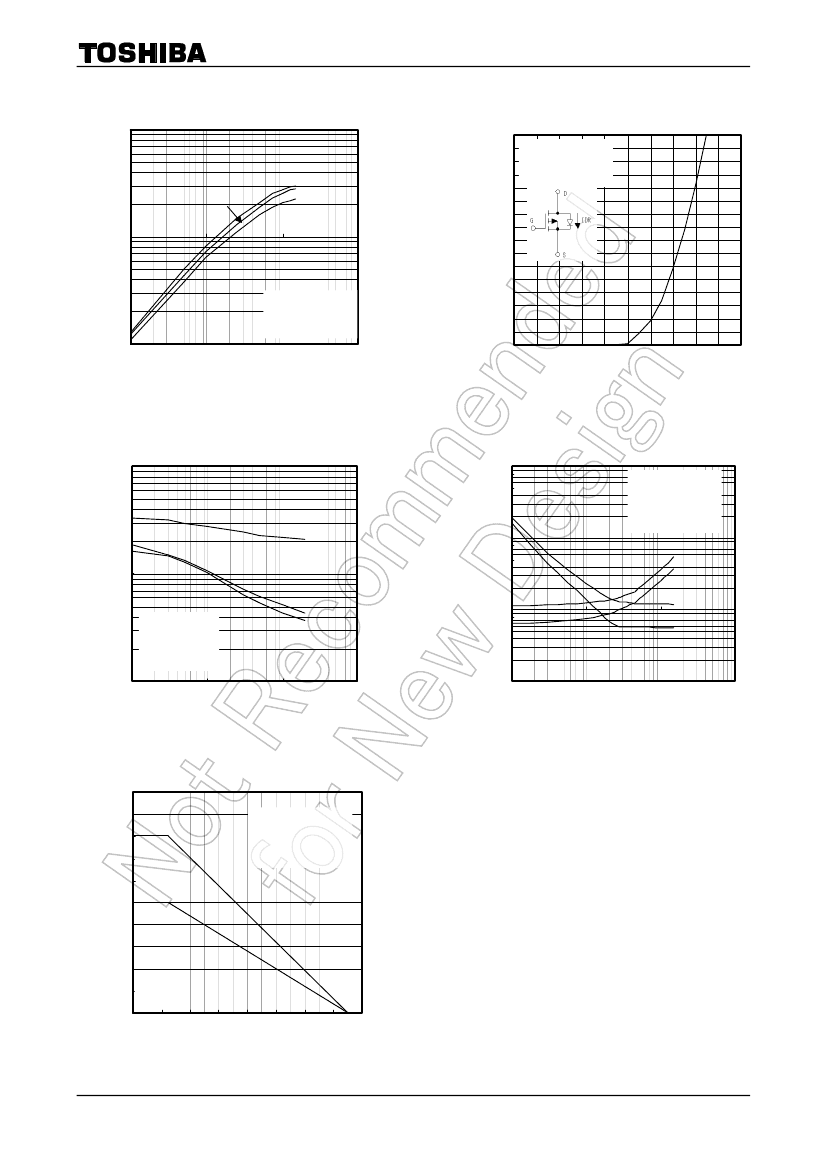

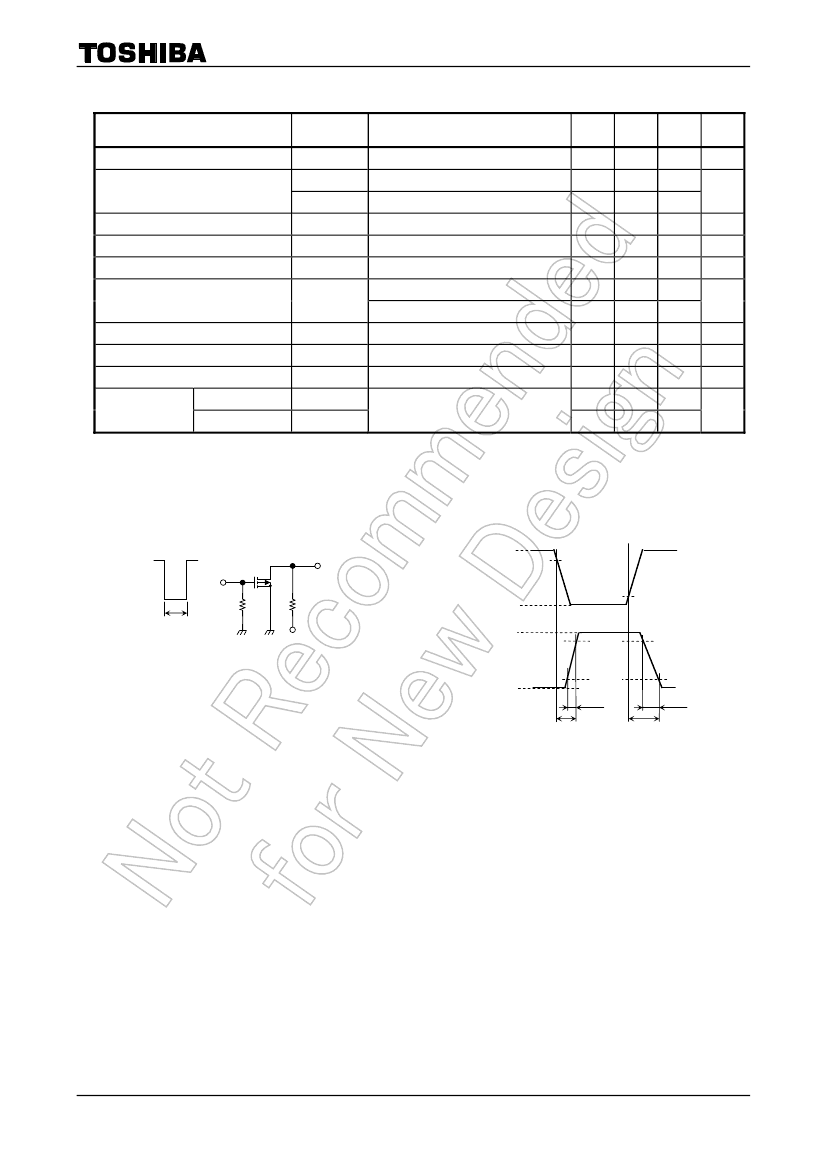

0.16-0.05
