Precision modular connectors to suit your application
Since its creation in Switzerland in 1946 the LEMO Group has been recognized as a global leader of circular Push-Pull
connectors and connector solutions. Today LEMO and its affiliated companies, REDEL and COELVER, are active in more
than 80 countries with the help of over 40 subsidiaries and distributors.
Over 75000 connectors
The modular design of the LEMO range provides over 75000 connectors from miniature ø 3 mm to ø 50 mm, capable of
handling cable diameters up to 30 mm and for up to 114 contacts.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most
markets, including medical devices, test and measurement instruments, machinery, audio video broadcast, telecommuni-
cations and military.
LEMO’s Push-Pull Self-Latching Connection System
(not shown in this catalogue)
This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute
security against vibration, shock or pull on the cable, and facilitates operation in a very limited space.

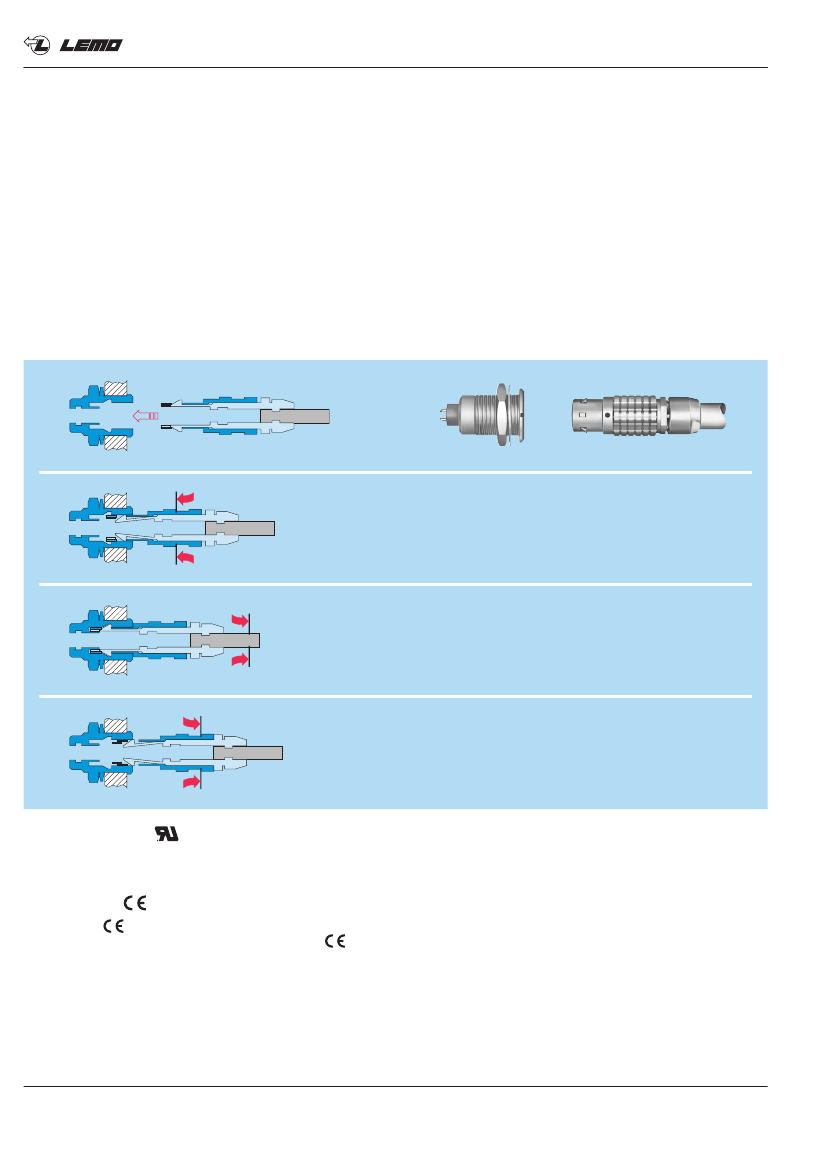

The LEMO self-latching system allows the connector
to be mated by simply pushing the plug axially into the
socket.
Once firmly latched, connection cannot be broken by
pulling on the cable or any other component part other
than the outer release sleeve.
When required, the connector is disengaged by a
single axial pull on the outer release sleeve. This first
disengages the latches and then withdraws the plug
from the socket.
UL Recognition
LEMO connectors are recognized by the Underwriters Laboratories (UL). The approval of the complete system (LEMO
connector, cable and your equipment) will be easier because LEMO connectors are recognized.
CE marking
CE marking
means that the appliance or equipment bearing it complies with the protection requirements of one or
several European safety directives. CE marking
applies to complete products or equipment,
but not to electrome-
chanical components, such as connectors.
RoHS
LEMO connector specifications conforms the requirements of the RoHS directive (2011/65/EU) of the European Parliament
and the latest amendments. This directive specifies the restrictions of the use of hazardous substances in electrical and
electronic equipment marketed in Europe.
www.lemo.com
®
®
03 Series
This series of connectors stems from the series 00 and has been specifically developed for applications where the connection
must be guaranteed under very high pressure. The push-pull latching system has been replaced by a screw coupling
system with watertightness maintained by compression of an O-ring in FPM (Viton
®
) according to the triangular shaped
cavity principle. There are multiple application possibilities, from aerospace to the petroleum industry.
After cable assembly, the rear part must be covered with an adhesive heatshrink boot in order to ensure watertightness on
the cable side. 03 series connectors provide the following main features:
– coaxial 50 Ω type
– multipole with 2, 3, 4 or 6 contacts
– 360° screening for full EMC shielding
– rugged housing for extreme working conditions
– working pressure that can exceed 60 bars in mated conditions

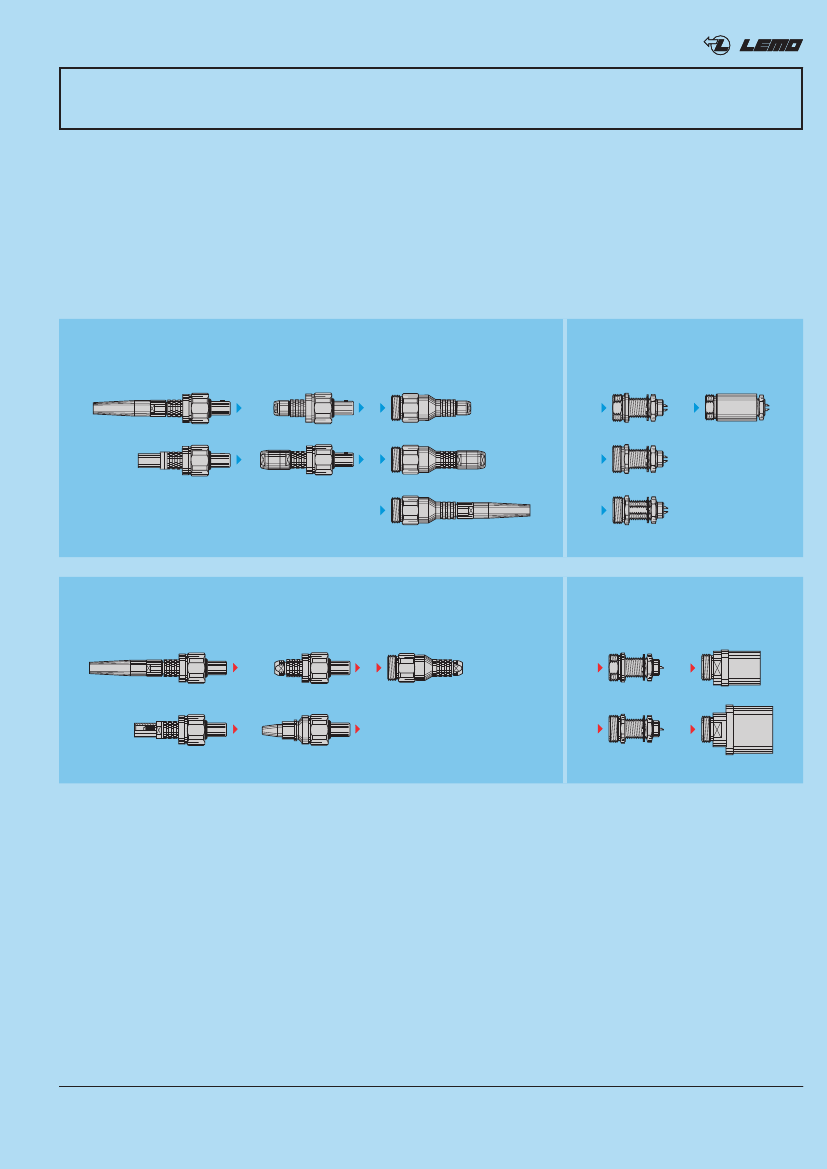

Multipole Type (302, 303, 304, 306)
Models
(page 3)
Straight plugs
Straight plugs
Fixed sockets
Vacuumtight models
(page 5)
Fixed sockets
Free socket
FVG
FVG
PVG
HVG
HTG
FVG
FVG
PVG
HRG
PVG
HWG
Coaxial Type (50 Ω)
Models
(page 6)
Straight plugs
Straight plugs
Fixed socket
Vacuumtight models
(page 8)
Fixed sockets
Free sockets
FVN
FVN
PVN
HVP
HVL
FVS
FVR
HVR
HVW
www.lemo.com
1
®
®

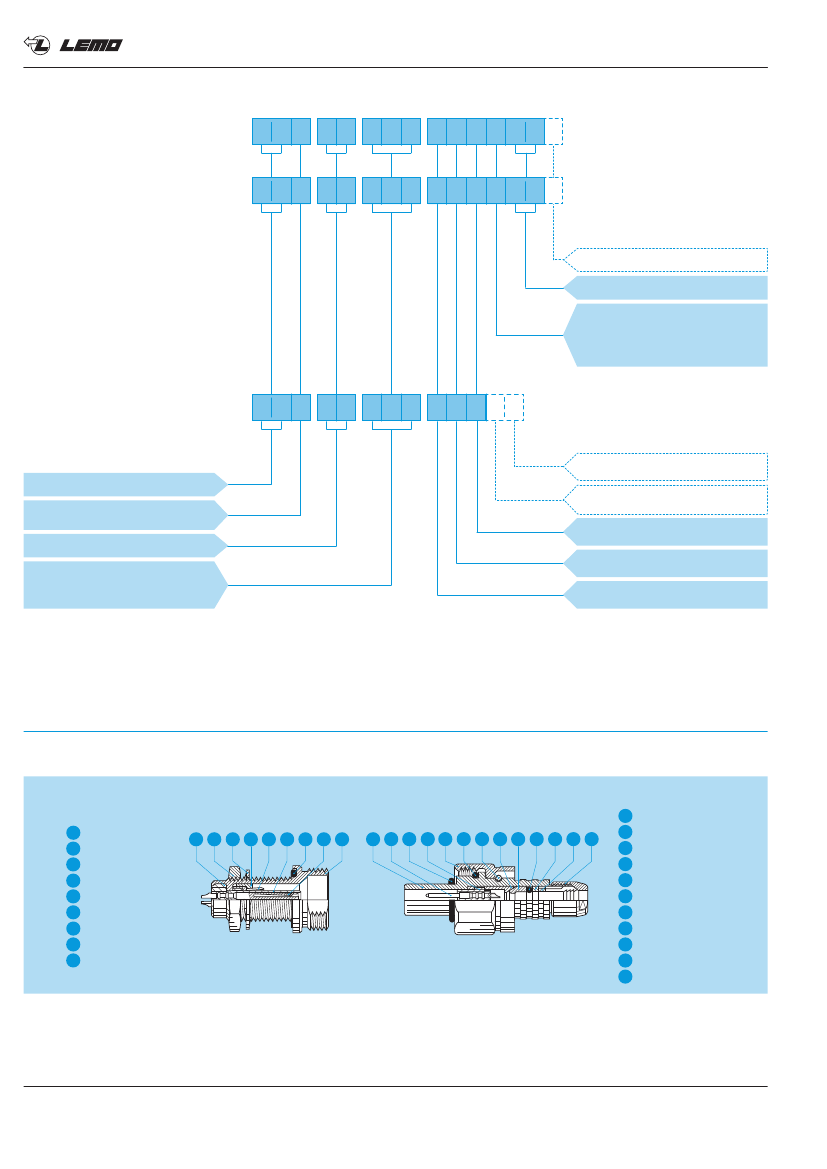

Part Numbering System
Plug
F V G
0 3
3 0 2
C L A C 2 7
Free socket
P V G
0 3
3 0 2
C L L C 2 7
Variant: (page 11)
Cable ø
Collet type:
C = cable collet
E = crimping
K = oversized cable collet
Fixed socket
H V G
0 3
3 0 2
C L L P V
Model: (page 3-8)
Alignment key: (page 9)
(only for multipole)
Series: 03
Insert configuration:
– Multipole (page 10)
– Coax (page 10)
V = vacuumtight
Sealing epoxy resin:
®
P = Araldite
®
S = Stycast
Contact: (page 10)
Insulator: L = PEEK
Housing: (page 10)
FVG.03.302.CLAC27
= straight plug with key (G) and cable collet, 03 series, multipole type with 2 contacts, outer shell in chrome-plated
brass, PEEK insulator, male solder contacts, C type collet for 2.7 mm diameter cable.
PVG.03.302.CLLC27
= free socket with key (G) and cable collet, 03 series, multipole type with 2 contacts, outer shell in chrome-plated
brass, PEEK insulator, female solder contacts, C type collet for 2.7 mm diameter cable.
HVG.03.302.CLLPV
= fixed socket, nut fixing, with key (G), 03 series, multipole type with 2 contacts, outer shell in chrome-plated brass,
PEEK insulator, female solder contacts, sealed with Araldite
®
epoxy resin.
Part Section Showing Internal Components
(multipole)
Fixed socket
2
4
1
outer shell
Straight plug
2
coupling nut
1
outer shell
3
5
7
6
8
9
earthing crown
retaining ring
hexagonal nut
locking washer
insulator
female contact
o-ring
epoxy resin
9
4
5
3
2
6
8
7
1
1
6
11
5
2
11 10 4
7
11
9
8
3
4
centre-piece
6
male contact
8
collet
5
insulator
3
collet nut
7
earthing cone
10
circlip
9
compression ring
11
o-ring
2
www.lemo.com
®
®
Models
(multipole type)
Technical Characteristics
Mechanical and Climatical
Characteristics
Endurance
Humidity
Temperature range
Salt spray corrosion test
Protection index
2)
Resistance to hydrostatic
pressure
2)
Climatical category
> 144 h
> IP68
~ 60 bars
1)
20/200/21
Value
Standard
Electrical
Characteristics
Insulation resistance (new)
Insulation resistance
3)
Shell electrical continuity
Shielding
efficiency
Contact
resistance
4)
at 10 MHz
at 1 GHz
Value
> 10
12
Ω
> 10
10
Ω
5.0 mΩ
> 100 dB
> 80 dB
Standard
IEC 60512-2
IEC 60512-2
IEC 60512-2
IEC 60169-1-3
IEC 60169-1-3
IEC 60512-2
IEC 60512-2
test 2a
test 2a
Section
test 3a
test 3a
test 2f
> 1000 cycles IEC 60512-5 test 9a
up to 95% at 60° C
-20° C, +200° C
IEC 60512-6 test 11f
IEC 60529
IEC 60512-7 test 14d
IEC 60068-1
ø A = 0.5 mm ≤ 8.7 mΩ
ø A = 0.7 mm ≤ 6.1 mΩ
Note:
1)
in order to perform correctly and withstand the pressure, cable assembly
shall be made according to instruction we recommand. See page 12.
2)
For mated plug and socket.
Note:
3)
after humidity test: 21 days at 95% RH according to IEC 60068-2.
4)
after 5000 mating cycles and the salt spray test according to IEC 60512-6
test 11 f.

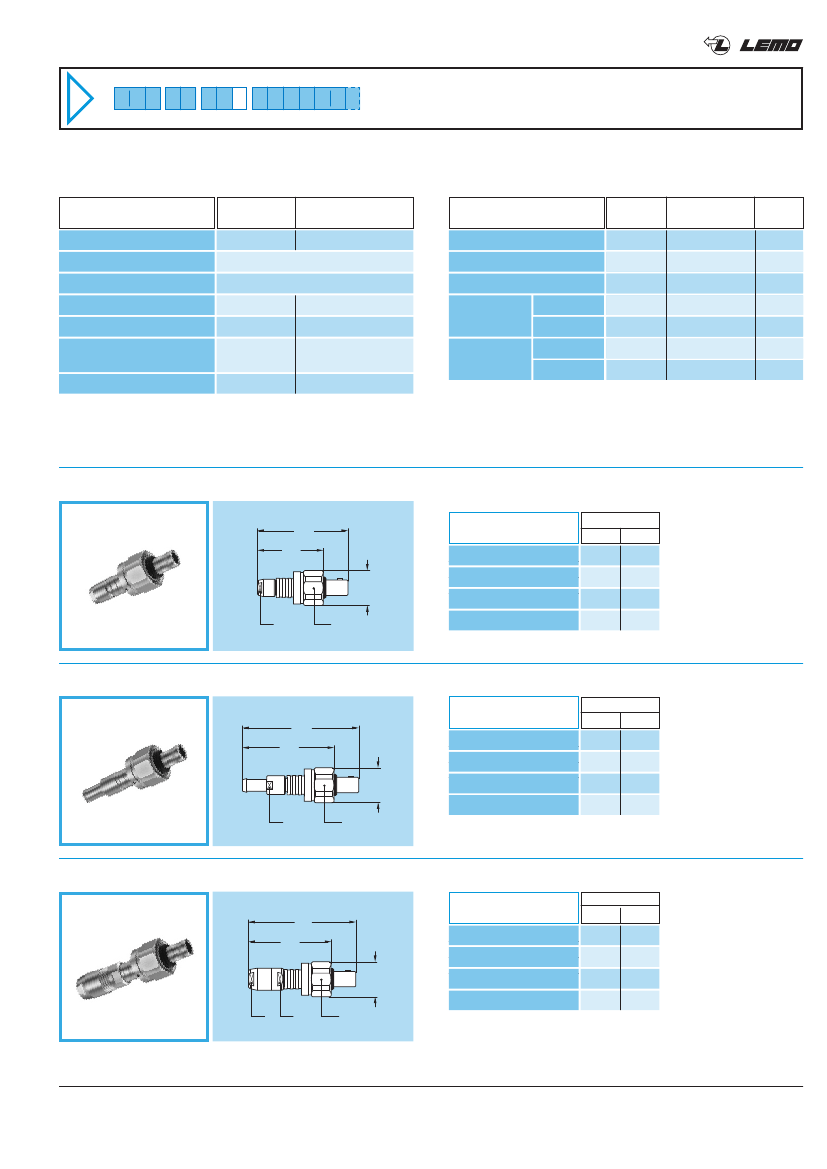

FVG
Straight plug, key (G) or key (B), cable collet
33.7
25.5
ø 11.8
Part number
FVG.03.30
l
.CLAC27
FVG.03.30
l
.SLAC27
FVG.03.30
l
.CLAC31
FVG.03.30
l
.SLAC31
Cable ø (mm)
min.
max.
2.4
2.4
2.7
2.7
2.6
2.6
3.0
3.0
S5
S 11
Note:
l
= insert configuration (page 10)
FVG
Straight plug, key (G) or key (B), cable collet and nut for fitting a bend relief
38.5
30.3
ø 11.8
Part number
FVG.03.30
l
.CLAC27Z
FVG.03.30
l
.SLAC27Z
FVG.03.30
l
.CLAC31Z
FVG.03.30
l
.SLAC31Z
Cable ø (mm)
min.
max.
2.4
2.4
2.7
2.7
2.6
2.6
3.0
3.0
S6
S 11
Note:
l
= insert configuration (page 10).
The bend relief must be ordered separately (page 11)
FVG
Straight plug, key (G) or key (B) and oversize cable collet
38.7
30.5
ø 11.8
Part number
FVG.03.30
l
.CLAK35
FVG.03.30
l
.CLAK40
FVG.03.30
l
.CLAK45
FVG.03.30
l
.CLAK50
Cable ø (mm)
min.
max.
3.1
3.6
4.1
4.6
3.5
4.0
4.5
5.0
S7
S7
S 11
Note:
l
= insert configuration (page 10)
Correspond to K type of collet. Also available with nut for fitting a bend relief.
www.lemo.com
3
