LM293AFE datasheet, PDF - EEWORLD Datasheet

LM293AFE: DescriptionIC DUAL COMPARATOR, 4000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, CDIP8, CERDIP-8, Comparator; CategoryAnalog mixed-signal IC Amplifier circuit; File Size175KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

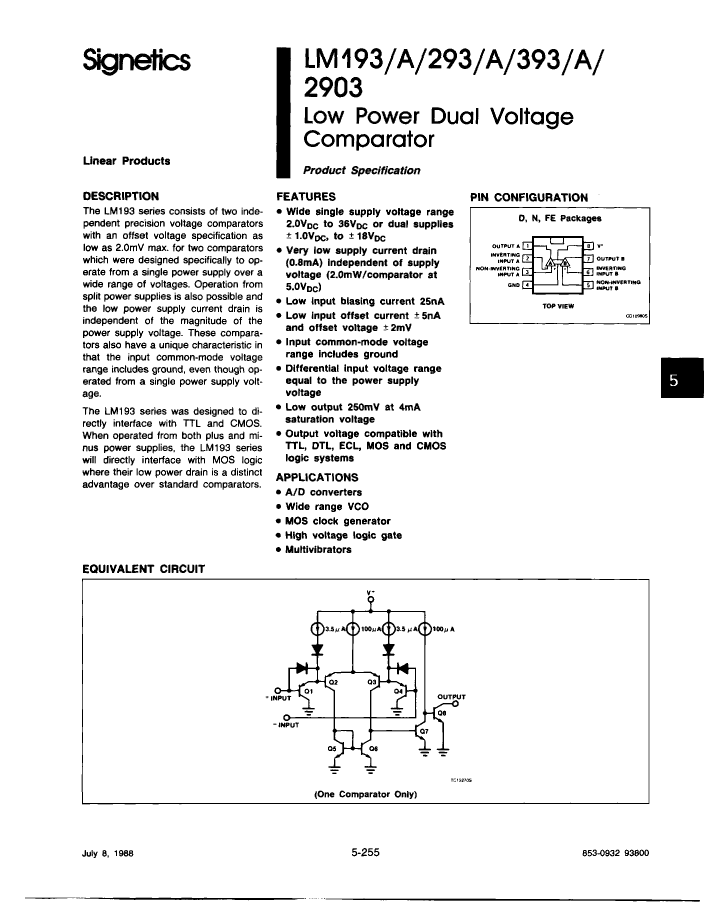

LM293AFE Overview

IC DUAL COMPARATOR, 4000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, CDIP8, CERDIP-8, Comparator

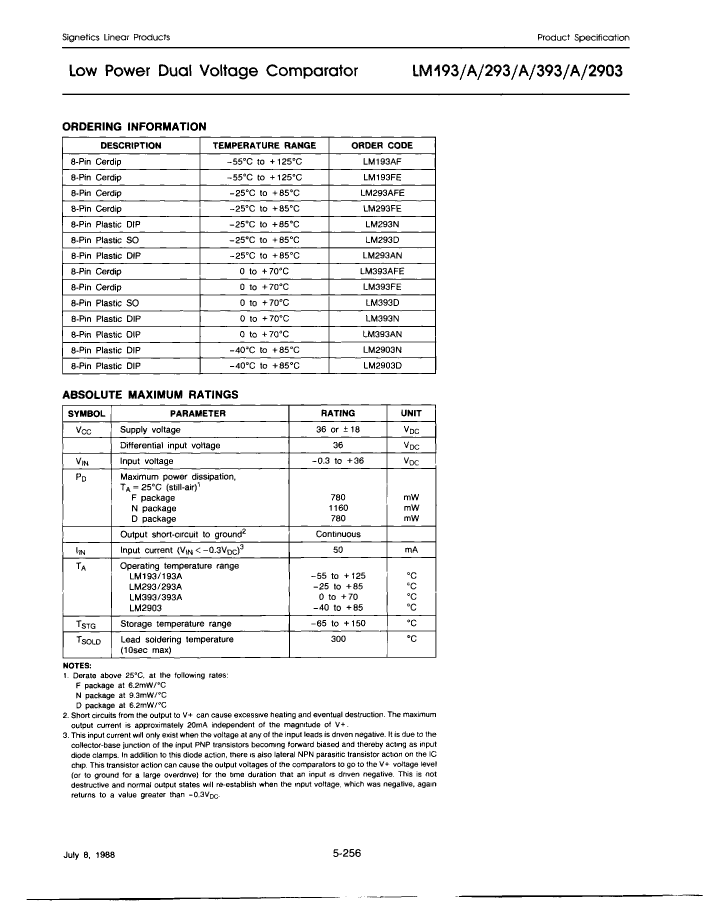

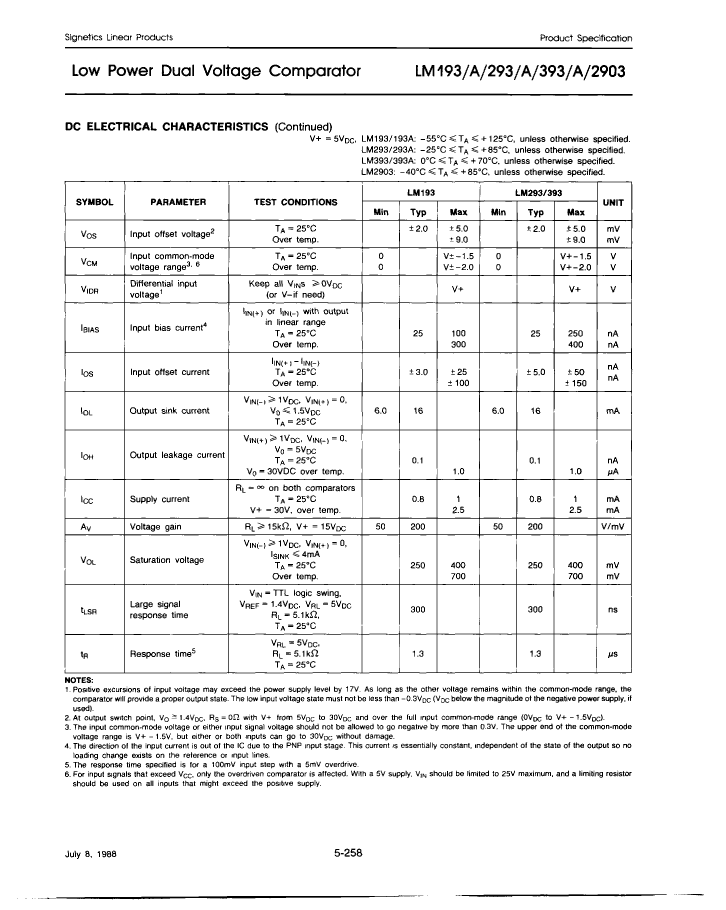

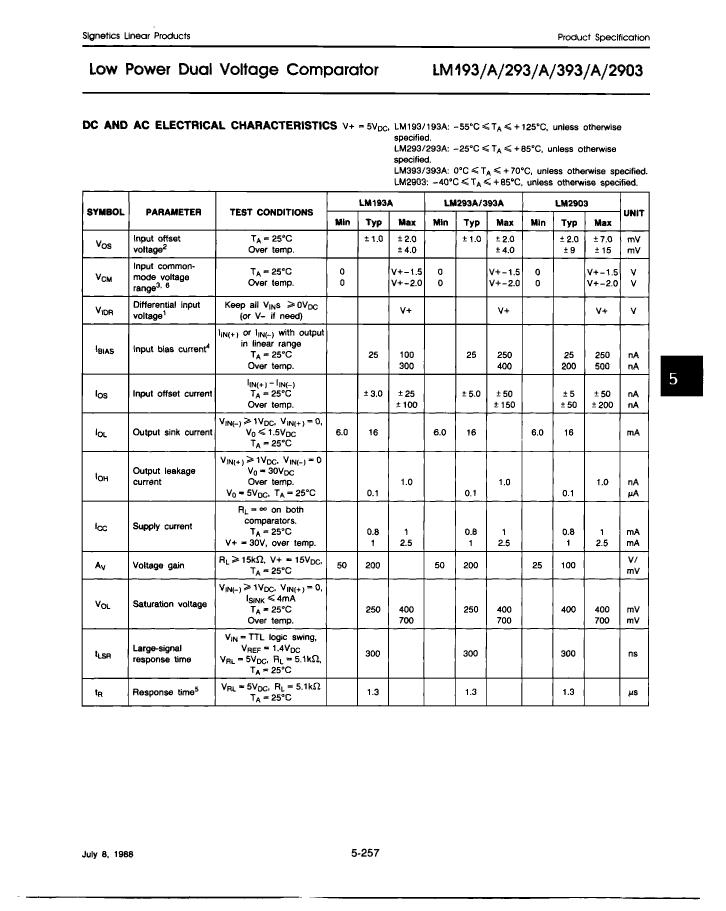

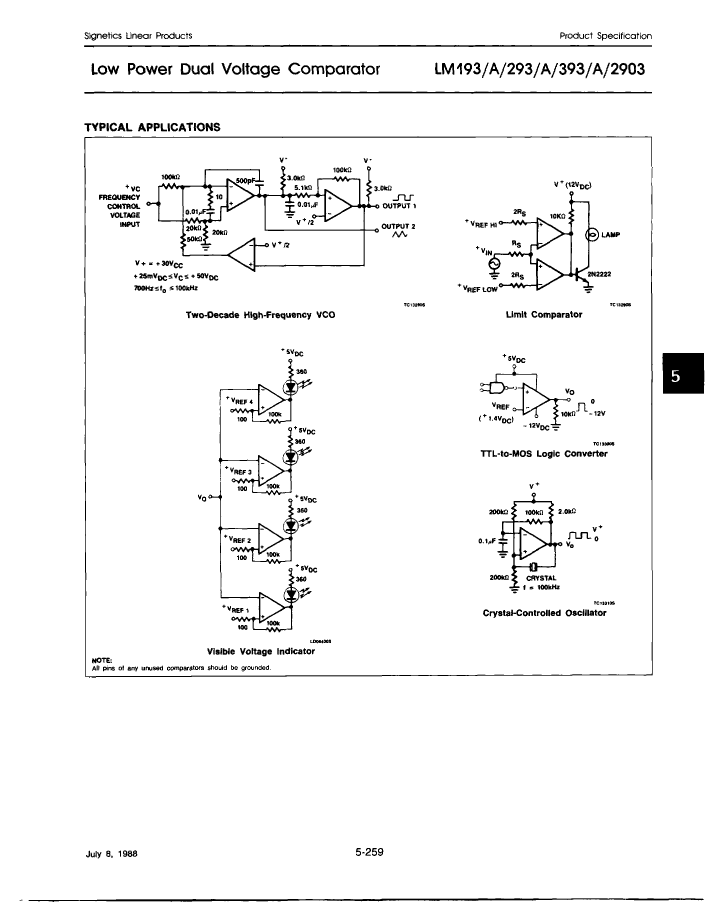

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.4 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-GDIP-T8
length	9.955 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output type	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	5.08 mm
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	LM293AFE	LM193AF
Description	IC DUAL COMPARATOR, 4000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, CDIP8, CERDIP-8, Comparator	IC DUAL COMPARATOR, 4000 uV OFFSET-MAX, 1300 ns RESPONSE TIME, CDIP8, CERDIP-8, Comparator
Maker	NXP	NXP
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.4 µA	0.3 µA
Maximum input offset voltage	4000 µV	4000 µV
JESD-30 code	R-GDIP-T8	R-GDIP-T8
length	9.955 mm	9.955 mm
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	85 °C	125 °C
Minimum operating temperature	-25 °C	-55 °C
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns
Maximum seat height	5.08 mm	5.08 mm
Supply voltage upper limit	36 V	36 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
