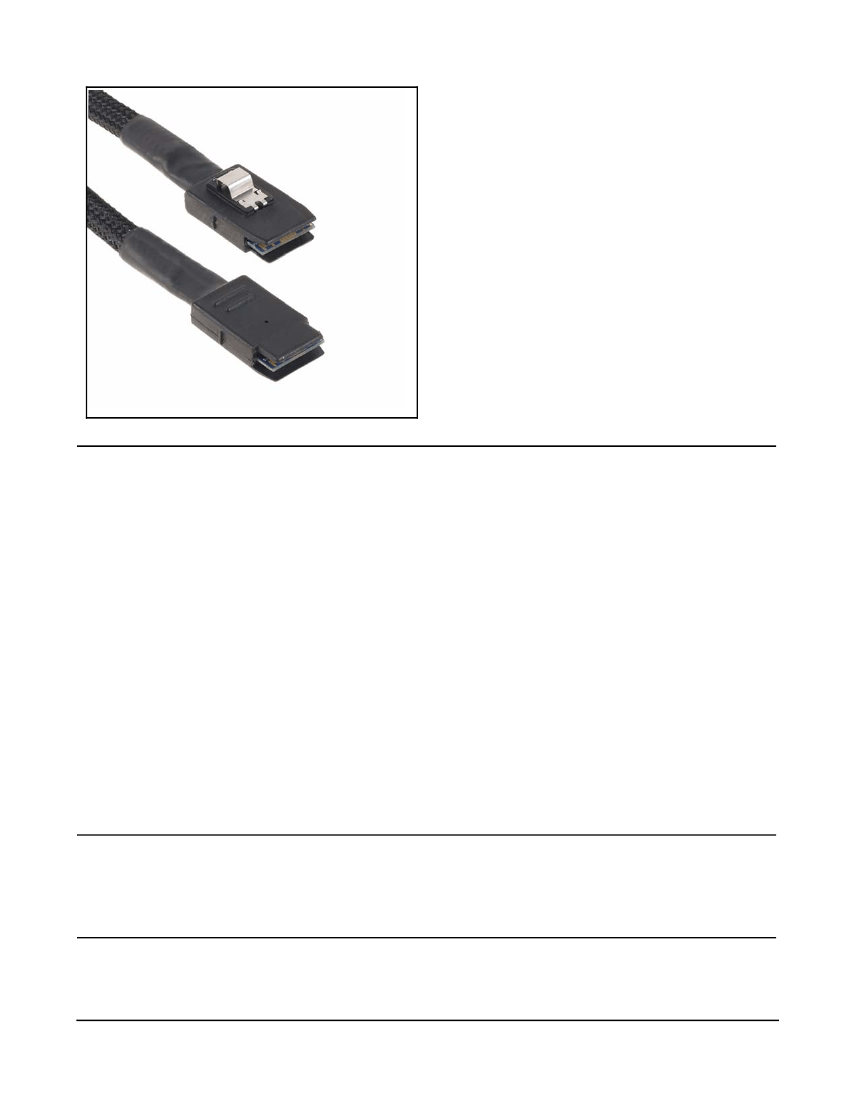

3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly
Internal, Signal, Straight Termination
•
•
•
•
•
•
•
•
•
8N36 Series
3 Gbps per channel data rate
36 Conductor signal assembly
Multiple lengths available
Metal latch designed to ensure retention
Two levels of EMLB for hot plugging
30 AWG Twin Axial Cable
Universal key
Tested to SAS Specification, SAS-1.1
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: July 3, 2007
TS-2209-C
Sheet 1 of 3
Physical
Backshell
Material:
High Temperature Thermoplastic
Flammability:
UL 94V-0
Color:
Black
Paddle-card
FR4
Flammability:
UL 94V-0
Plating
Underplating:
50 µ" min. [ 1.27 µm ] Nickel
Wiping Area:
30 µ" min. [ 0.76 µm ] Gold
Cable
Wire Size
Conductor:
30 AWG Solid Tin Plated Solid Conductor
Drain Wire:
30 AWG Solid Tin Plated Solid Conductor
Dielectric:
Foam Polyethylene
Shield:
Mylar 100% Coverrage
Jacket:
Non-PVC
Jacket Braiding
Material:
Nylon Braid
Electrical
Current Rating:
Withstanding Voltage:
Per Contact: 0.5 A
300 V
DC
min. for 1 minute
Insulation Resistance:
10
3
MΩ min.
Environmental
Operating Temperature:
-20°C to +80°C
UL File No.: E86982
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly
Internal, Signal, Straight Termination
8N36 Series
P1
A1
A2
A3
A4
A5
A6
A7
A12
A13
A14
A15
A16
A17
A18
GND
Rx 0+
Rx 0-
GND
Rx 1+
Rx 1-
GND
GND
Rx 2+
Rx 2-
GND
Rx 3+
Rx 3-
GND
B1
B2
B3
B4
B5
B6
B7
B12
B13
B14
B15
B16
B17
B18
P2
GND
Tx 0+
Tx 0-
GND
Tx 1+
Tx 1-
GND
GND
Tx 2+
Tx 2-
GND
Tx 3+
Tx 3-
GND
B1
B2
B3
B4
B5
B6
B7
B12
B13
B14
B15
B16
B17
B18
P1
GND
Tx 0+
Tx 0-
GND
Tx 1+
Tx 1-
GND
GND
Tx 2+
Tx 2-
GND
Tx 3+
Tx 3-
GND
A1
A2
A3
A4
A5
A6
A7
A12
A13
A14
A15
A16
A17
A18
P2
GND
Rx 0+
Rx 0-
GND
Rx 1+
Rx 1-
GND
GND
Rx 2+
Rx 2-
GND
Rx 3+
Rx 3-
GND
Pinout 3
Backplane-to-Controller
(no sidebands)
Ordering Information
8N36 - AAXX05 - X.XX
(RIA E1 & C1 Apply)
Pin-out:
01 = Backplane-to-Controller
02 = Controller-to-Controller
03 = Backplane-to-Controller, no sidebands
Length in meters*
0.25 m
0.50 m
0.75 m
1.00 m
* If other lengths are desired, contact your local 3M sales representative.
** If keying other than Universal is desired, contact your local 3M sales representative.
TS-2209-C
Sheet 4 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
