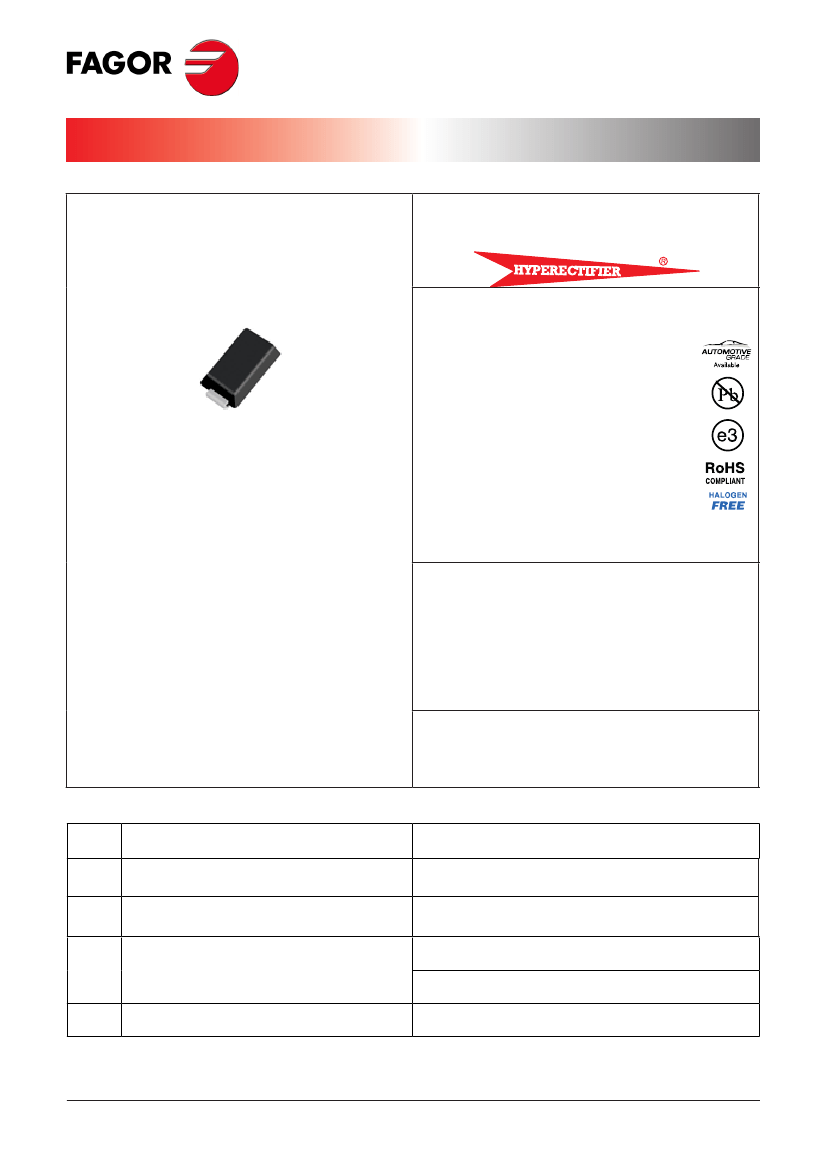

SMAJ5.0A .......... 188A
SMAJ5.0CA ..... 188CA
400 W Unidirectional and Bidirectional Surface Mounted Transiend Voltage Suppresor Diodes
DO-214AC (SMA)
Voltage
6 V to 220 V (Uni)
6 V to 220 V (Bid)
Power
400 W / ms
FEATURE
• Low profile package
• Ideal for automated placement
• 400 W peak pulse power capability with a
10/1000 µs waveform, repetitive rate (duty
cycle): 0.01%
• Excellent clamping capability
• Very fast response time
•
Low incremental surge resistance
•
Available in uni-directional and bi-directional
• Solder dip 260 ºC, 10s
• AEC-Q101 qualified
• Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 ºC
• Halogen-free avalaible according to IEC 61249-2-21
denifition

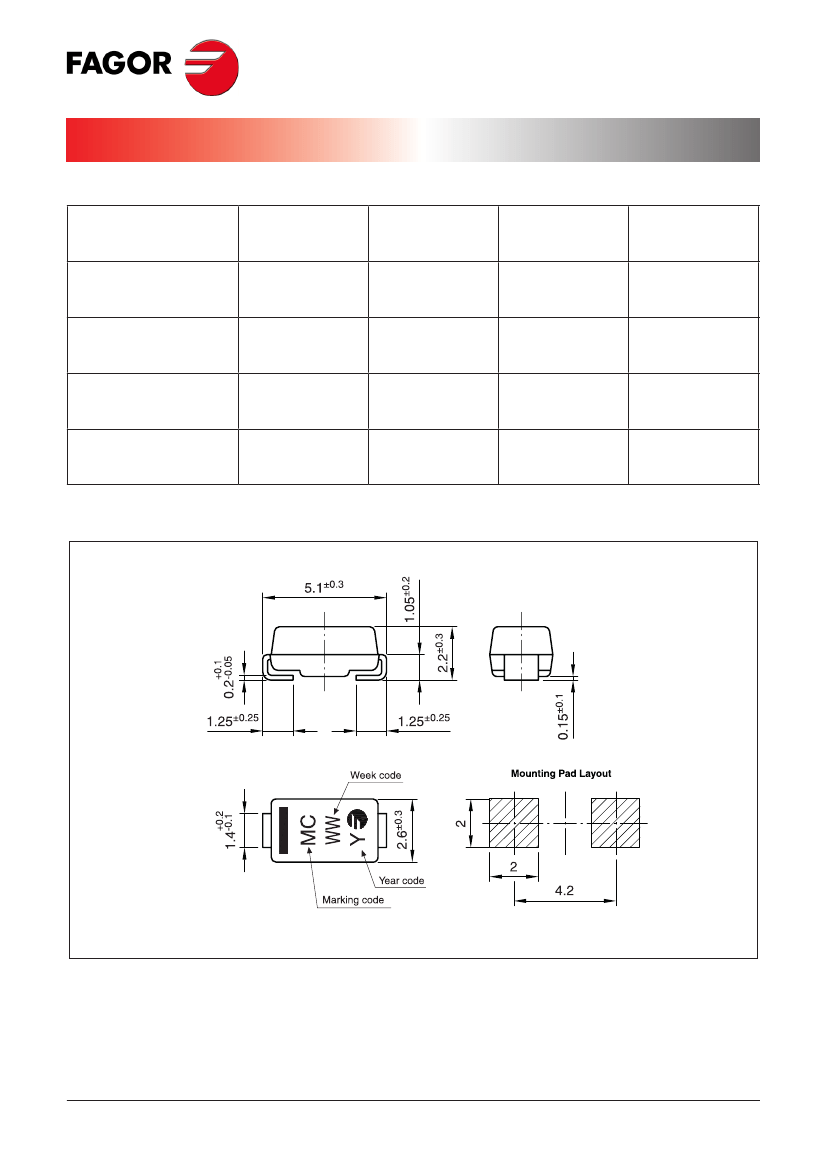

MECHANICAL DATA
•
Case:
DO-214AC (SMA). Epoxy meets UL 94V-0 flam-
mability rating.
•
Polarity:
For unidirectional types color band denotes cathode
end. No marking on bidirectional types.
•
Terminals:
Matte tin plated leads, solderable per MIL-STD-750
Method 2026, J-STD-002 and JESD22-B102. Consumer grade,
meets JESD 201 class 1A whisker test.
•
HE3 suffix
for high reliability grade, meets JESD 201 class
2 whisker test.
TYPICAL APPLICATIONS
Used in sensitive electronics protection against voltage tran-
sients induced by inductive load switching and lighting on ICs,
MOSFET, signal lines of sensor units for consumer, computer,
industrial, automotive and telecommunication.

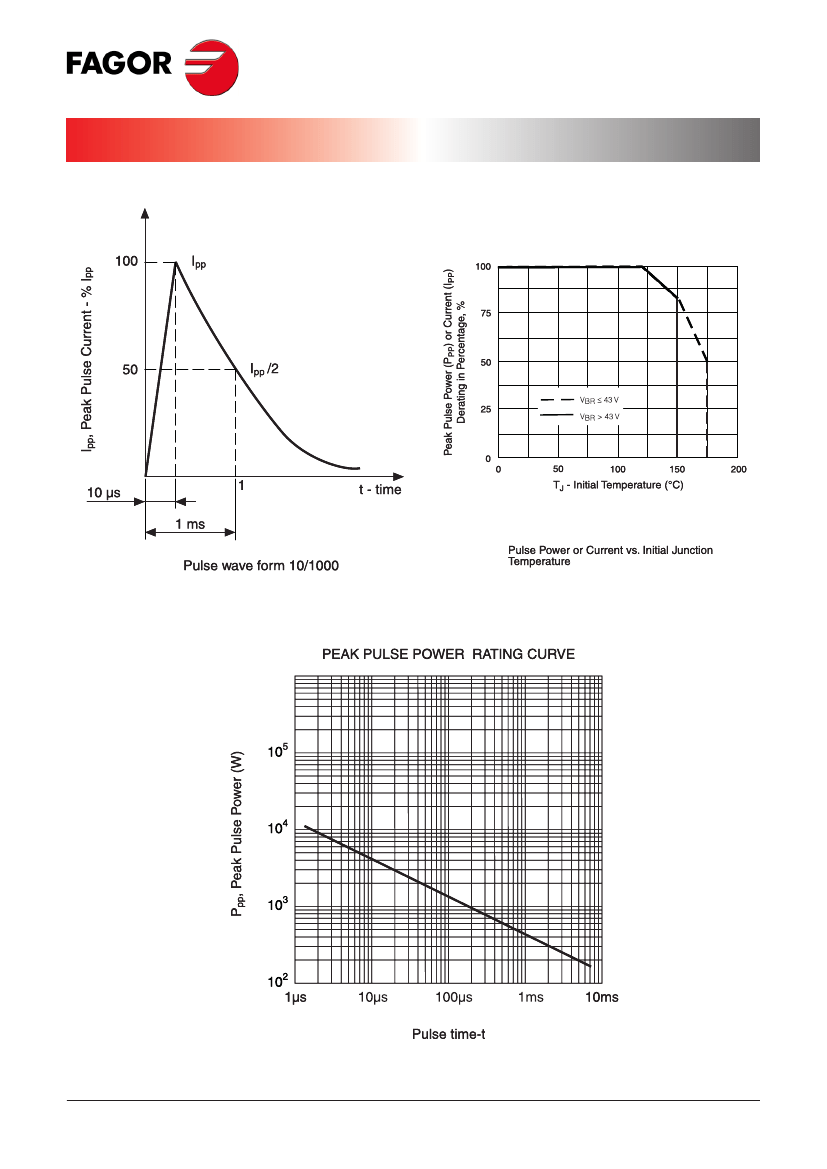

Maximun Ratings and Electrical Characteristics at 25 °C
P
PPM
I
FSM
V
F
Peak Pulse Power Dissipation with 10/1000
ms
exponential pulse
Peak Forward Surge Current 8.3 ms.
(Jedec Method)
(Note 1)
Max. Forward voltage drop at I
F
= 50 A
(JEDEC Method)
(Note 1)
400 W
40 A
3.5 V
- 65 to + 175 ºC
- 65 to + 150 ºC
- 65 to + 175 ºc
Operating Junction
T
j
Temperature Range
Storage Temperature Range
V
BR
≤
43 V
V
BR
>
43 V
T
stg
Note 1: Only for Unidirectional
www.fagorelectronica.com
Document Name: smaj
Revision: 5
Version: Jun-19
Page Number: 1 / 6
