HI1-0509A-2 datasheet, PDF - EEWORLD Datasheet

HI1-0509A-2: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size803KB，10 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/; Related ProductsFound10parts with similar functions to HI1-0509A-2

Download Datasheet Parametric View All

HI1-0509A-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HI1-0509A-2	-	-	View	Buy Now

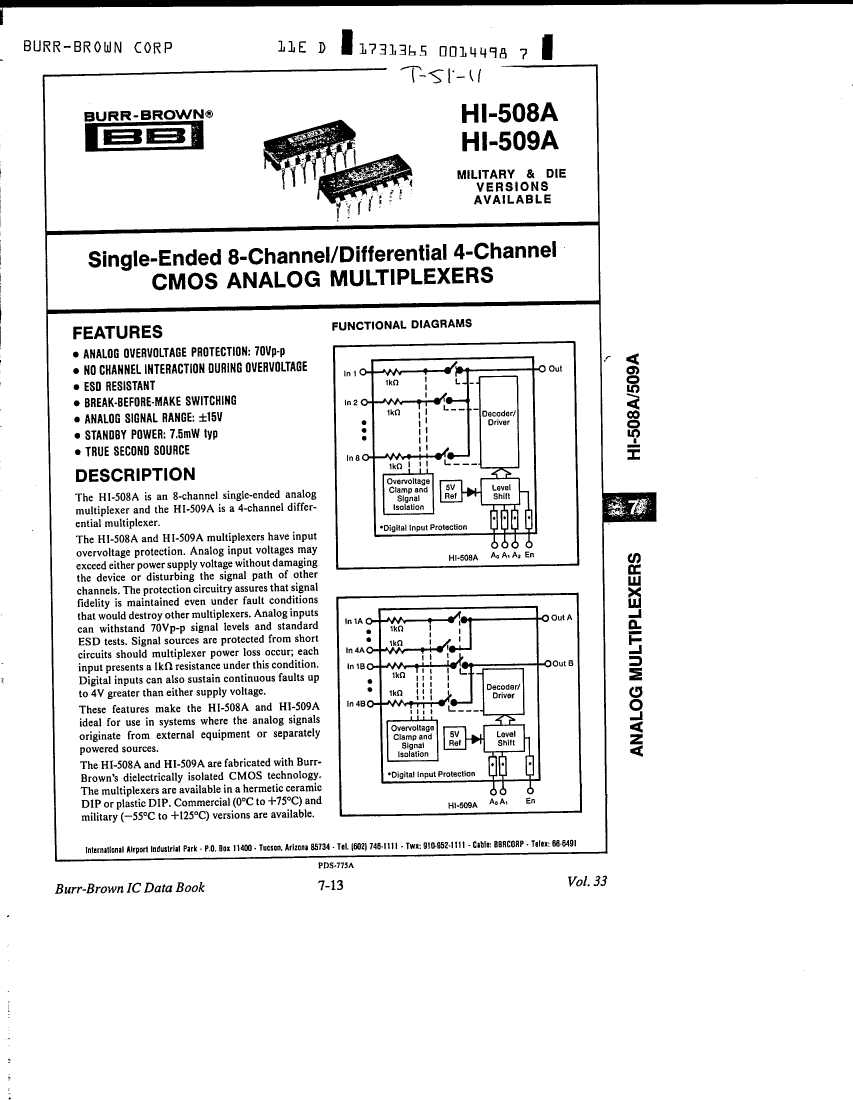

Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,

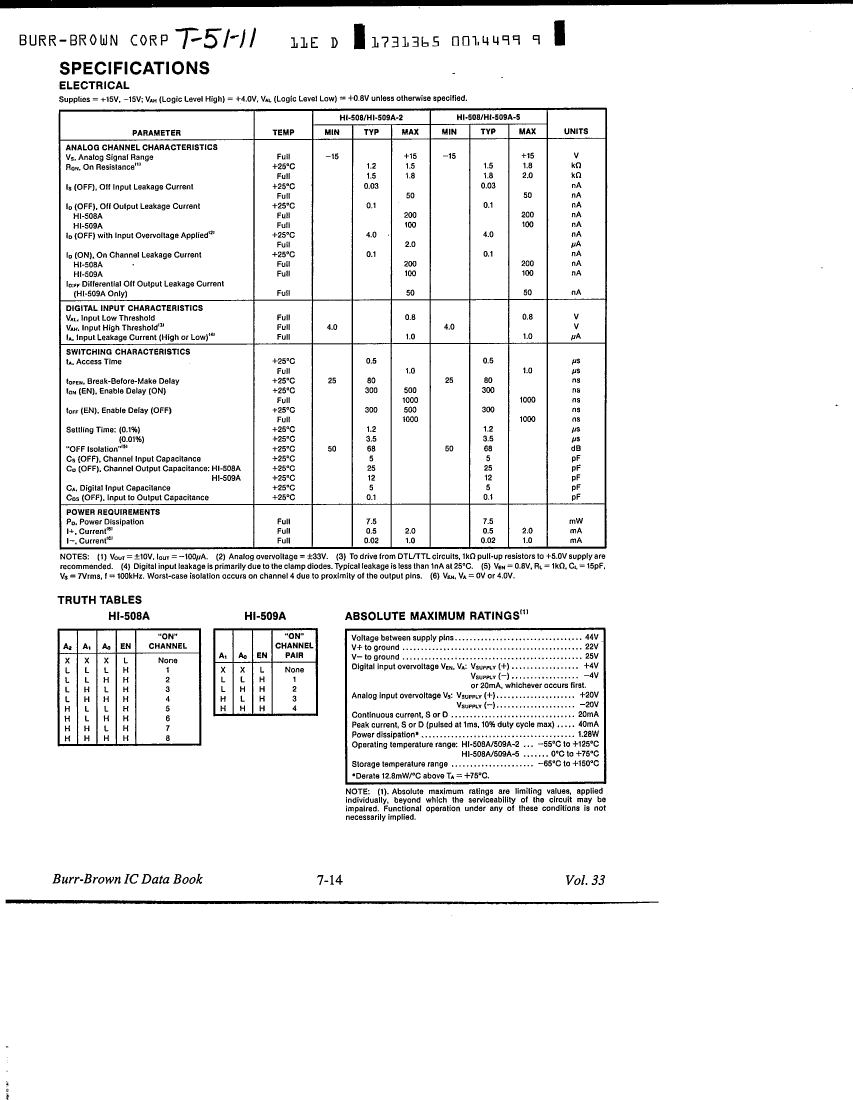

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1500 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

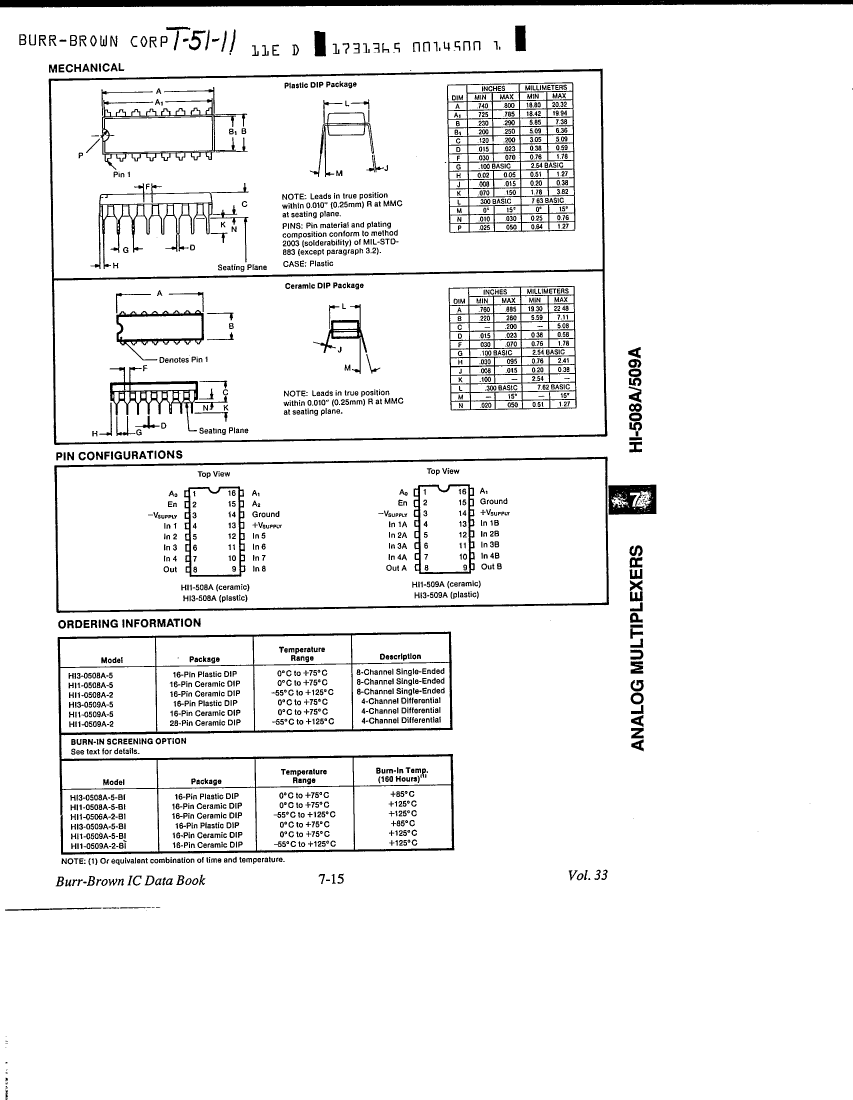

Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	500 ns
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
