1G1 THRU 1G7
GLASS PASSIVATED JUNCTION
PLASTIC RECTIFIER
VOLTAGE50 TO 1000V
CURRENT 1.0A
FEATURE
Molded case feature for auto insertion
High current capability
Low leakage current
High surge capability
High temperature soldering guaranteed
250°C/10sec/0.375”lead length at 5 lbs tension
R-1
MECHANICAL DATA
Terminal Plated axial leads solderable per
MIL-STD 202E, method 208C
Case Molded with UL-94 Class V-0 recognized Flame
Retardant Epoxy
Polarity Color band denotes cathode
Mounting position Any

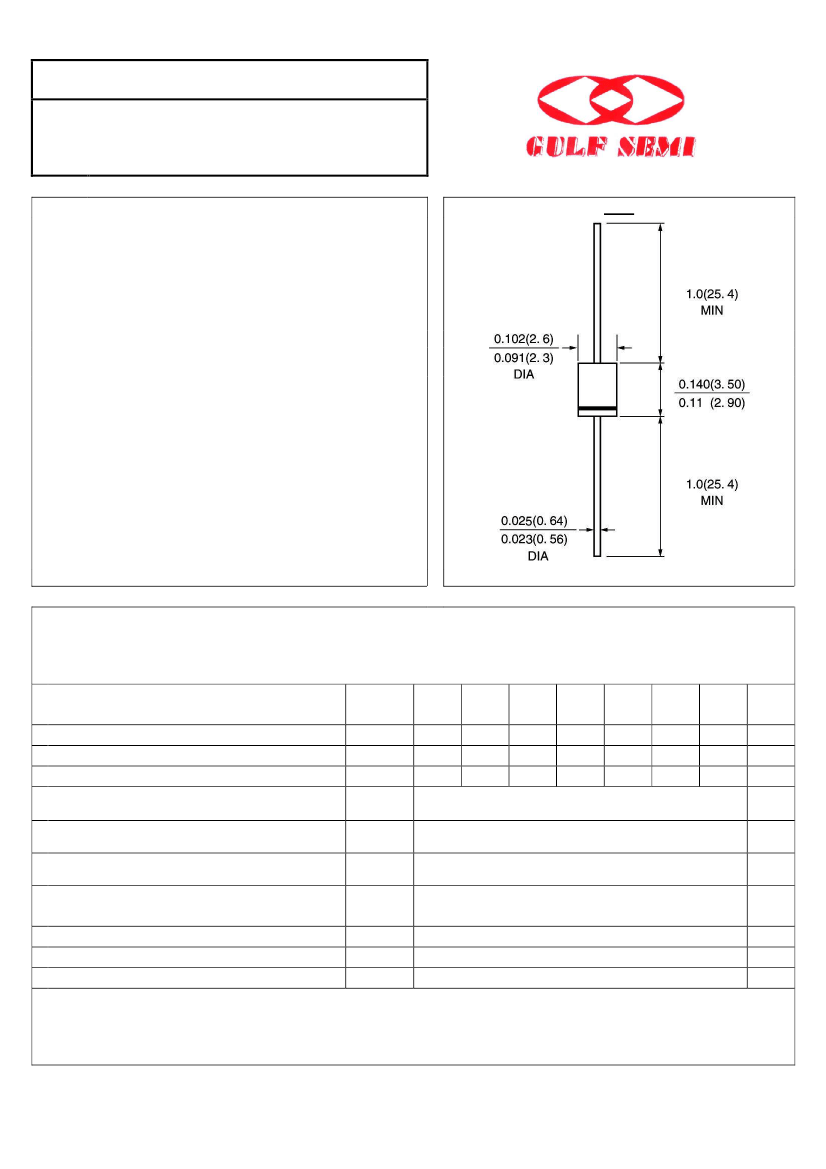

Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,
for capacitive load, derate current by 20%)
SYMBOL
1G1
50
35
50
1G2
100
70
100
1G3
200
140
200
1G4
400
280
400
1.0
25.0
1.1
1G5
600
420
600
1G6
800
560
800
1G7
1000
700
1000
units
V
V
V
A
A
V
µA
µA
pF
°C/W
°C
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified
Current 3/8”lead length at Ta =25°C,
Peak Forward Surge Current 8.3ms single
Half sine-wave superimposed on rated load
Maximum Instantaneous Forward Voltage at
rated forward current
Maximum DC Reverse Current
Ta =25°C
at rated DC blocking voltage
Ta =100°C
Typical Junction Capacitance
(Note 1)
Typical Thermal Resistance
(Note 2)
Storage and Operation Junction Temperature
Note
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
Ir
Cj
Rth(ja)
Tstg
5.0
50.0
15.0
50.0
-50 to +150
1. Measured at 1.0 MHz and applied voltage of 4.0Vdc
2. Thermal Resistance from Junction to Ambient at 0.375”lead length, P.C. Board Mounted

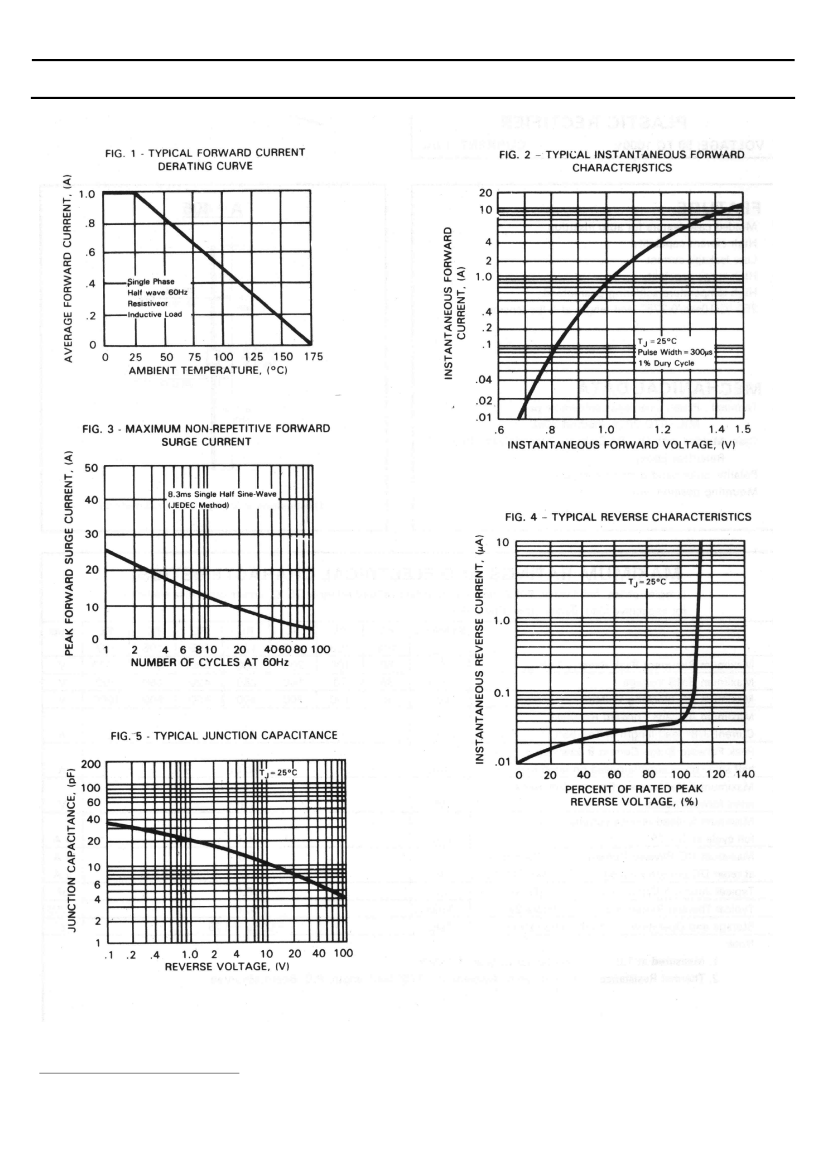

Rev.A5
www.gulfsemi.com
