1N5407 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5407

1N5407: Description3 A, SILICON, RECTIFIER DIODE, DO-201AD; CategoryDiscrete semiconductor diode; File Size157KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1N5407 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5407	-	-	View	Buy Now

1N5407 Overview

3 A, SILICON, RECTIFIER DIODE, DO-201AD

1N5407 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
Other features	LOW LEAKAGE CURRENT
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	5 µA
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

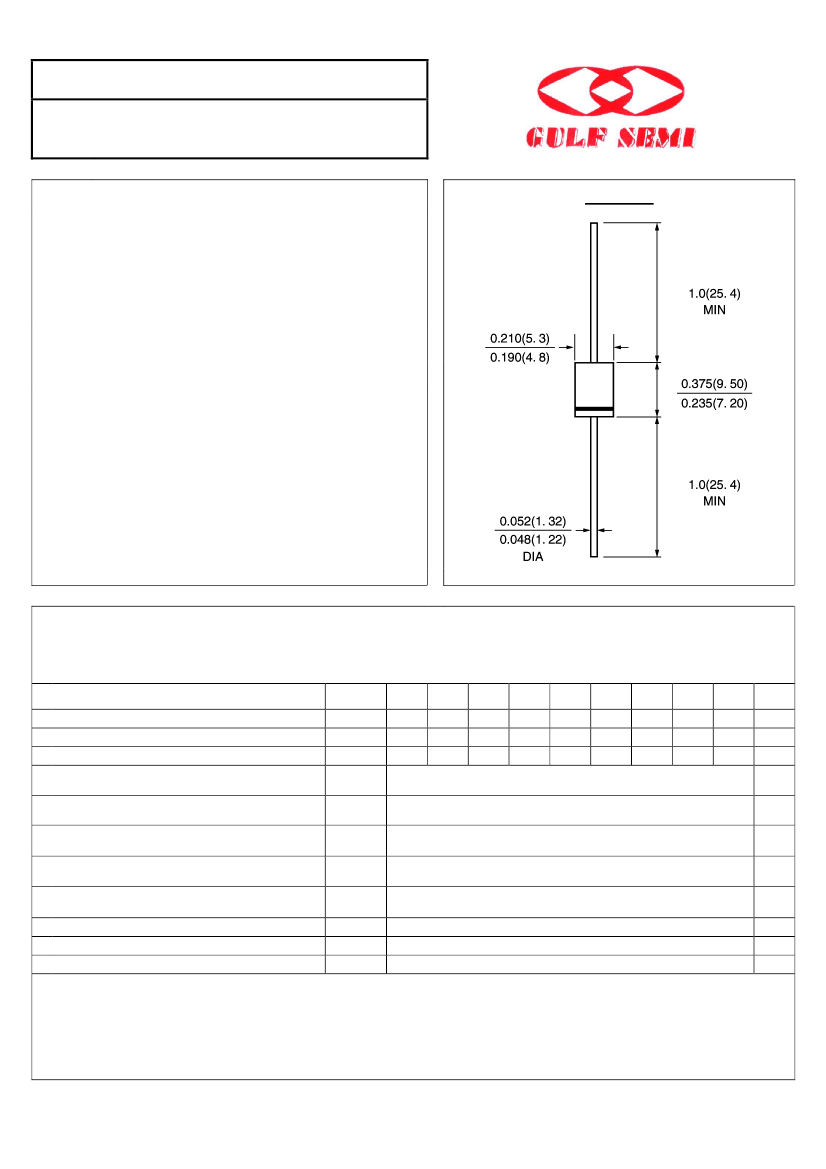

1N5400 THRU 1N5408

GENERAL PURPOSE

PLASTIC RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT:3.0A

FEATURE

Molded case feature for auto insertion

High current capability

Low leakage current

High surge capability

High temperature soldering guaranteed

250°C/10sec/0.375”lead length at 5 lbs tension

DO-201AD

MECHANICAL DATA

Terminal:Plated axial leads solderable per

MIL-STD 202E, method 208C

Case:Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity:color band denotes cathode

Mounting position:any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

5400

5401

100

5402

200

140

200

5403

300

210

300

5404

400

280

400

3.0

200.0

1.1

30.0

5.0

500.0

30.0

20.0

-50 to +150

5405

500

350

500

5406

600

420

600

5407

800

560

800

5408

1000

700

1000

units

µA

°C/W

°C

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta =80°C

Peak Forward Surge Current 8.3ms single

Half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

Vrrm

Vrms

Vdc

If(av)

Ifsm

Ir(av)

R(ja)

Tstg

rated forward current

Maximum full load reverse current

full cycle at T

=75°C

Maximum DC Reverse Current

Ta =25°C

at rated DC blocking voltage

Ta =150°C

Typical Junction Capacitance

(Note 1)

Typical Thermal Resistance

(Note 2)

Storage and Operation Junction Temperature

Note:

1. Measured at 1.0 MHz and applied voltage of 4.0Vdc

2. Thermal Resistance from Junction to Ambient at 0.375”lead length, P.C. Board Mounted

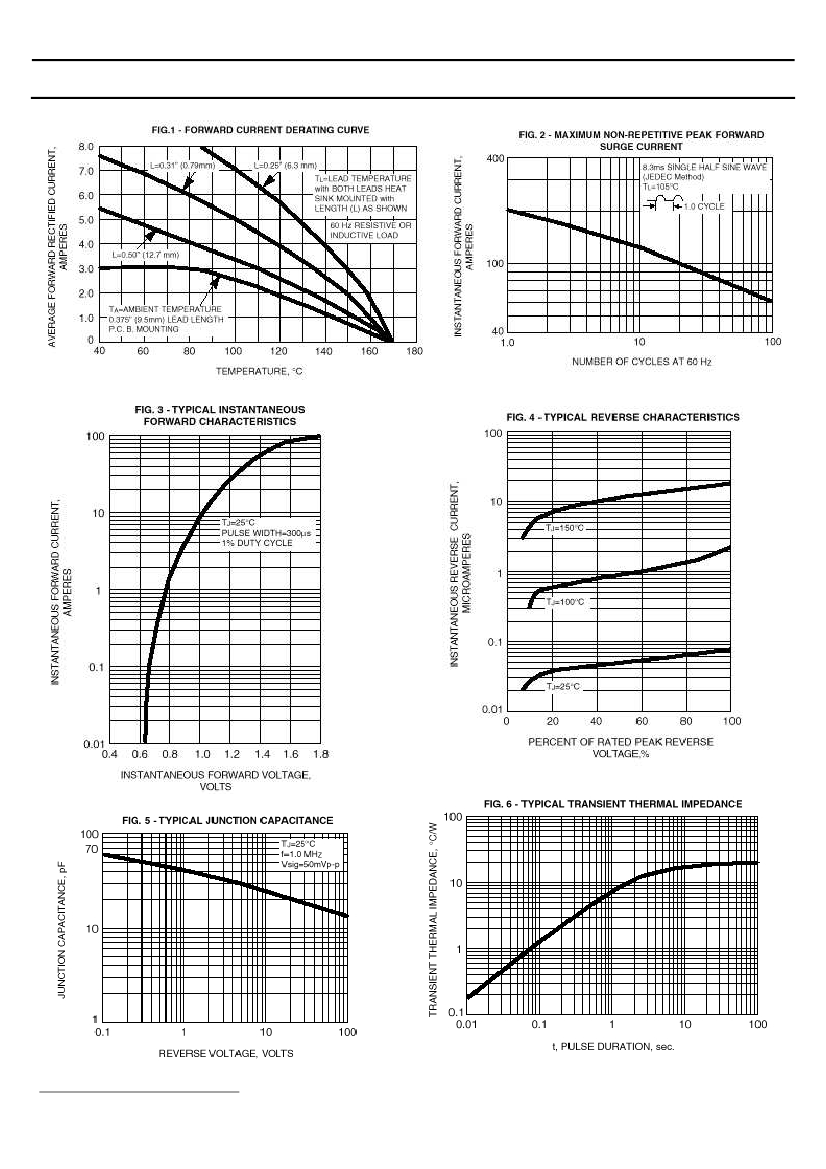

Rev.A5

www.gulfsemi.com
