1N5818: Description1 A, 30 V, SILICON, SIGNAL DIODE, DO-204AL; CategoryDiscrete semiconductor diode; File Size83KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1N5818 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5818	-	-	View	Buy Now

1N5818 Overview

1 A, 30 V, SILICON, SIGNAL DIODE, DO-204AL

1N5818 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	25 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	30 V
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

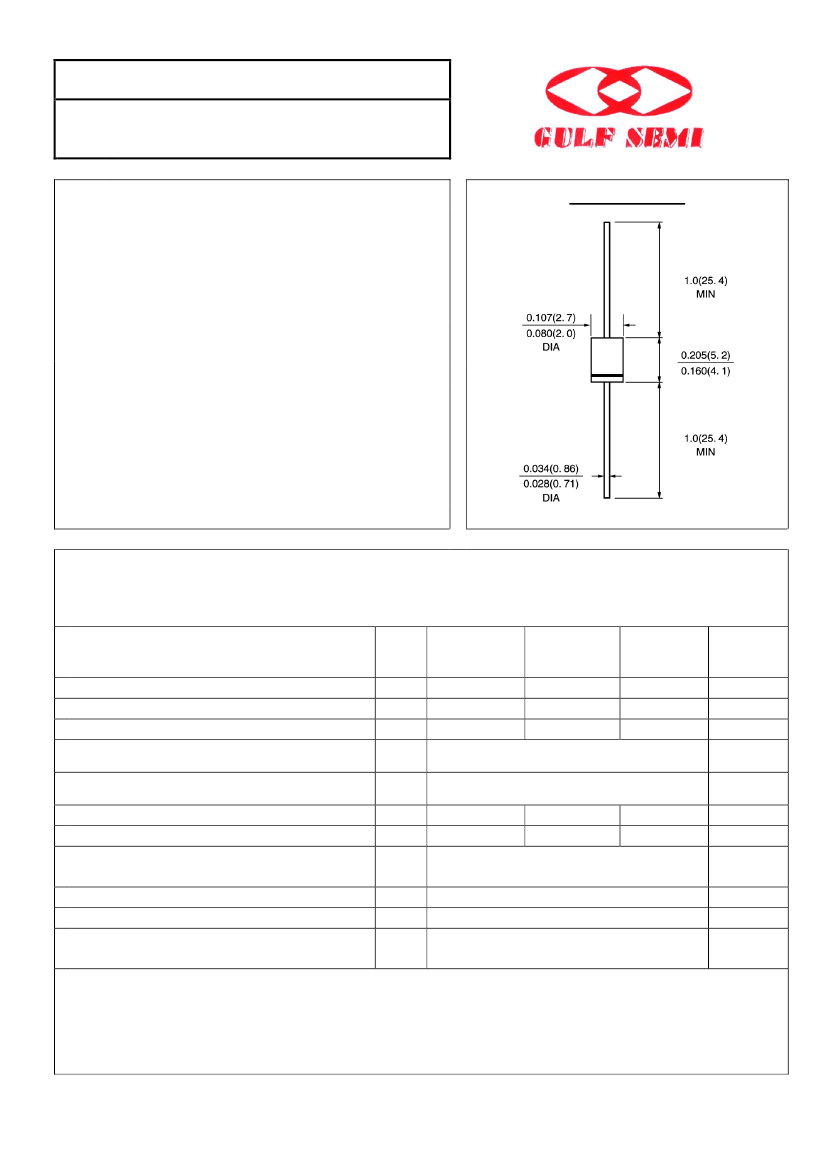

1N5817 THRU 1N5819

SCHOTTKY BARRIER

RECTIFIER

VOLTAGE: 20 TO 40V

CURRENT: 1.0A

FEATURE

High current capability, Low forward voltage drop

Low power loss, high efficiency

High surge capability

High temperature soldering guaranteed

250°C /10sec/0.375" lead length at 5 lbs tension

DO-41\ DO-204AL

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYM

BOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/" lead length at T

L

=90°

C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at 1.0A DC

Maximum Forward Voltage at 3.1A DC

Maximum DC Reverse Current

at rated DC blocking voltage

Typical Junction Capacitance

Typical Thermal Resistance

Ta =25°

C

Ta =100°

C

(Note 1)

(Note 2)

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Cj

R(ja)

Tstg,

Tj

0.45

0.75

1N

5817

20

14

20

1N

5818

30

21

30

1.0

25.0

0.55

0.875

1.0

10.0

110

50

-65 to +125

0.60

0.90

1N

5819

40

28

40

units

V

A

V

mA

pF

° /W

C

°

C

Storage and Operating Junction Temperature

Note:

1. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

2. Thermal Resistance from Junction to Ambient at 0.5" lead length, vertical P.C. Board Mounted

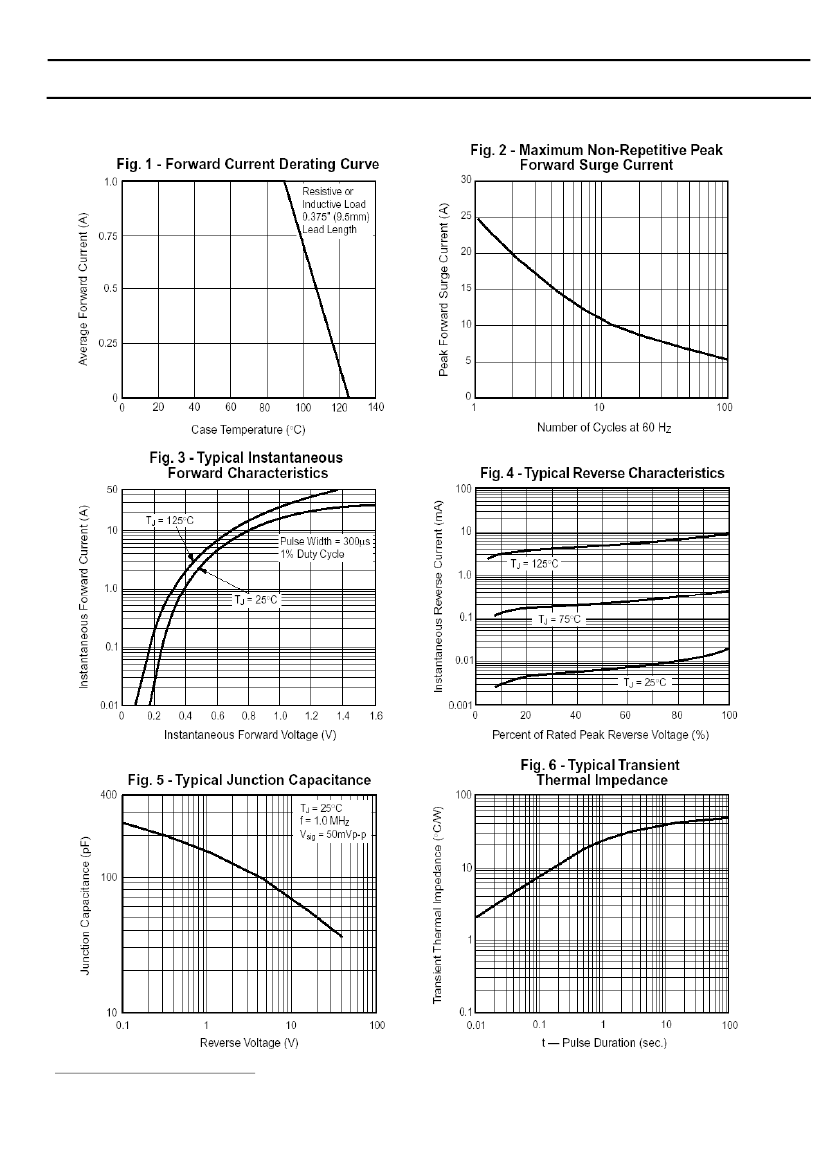

Rev.A4

www.gulfsemi.com
