1N5820 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5820

1N5820: DescriptionRECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size92KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1N5820 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5820	-	-	View	Buy Now

1N5820 Overview

RECTIFIER DIODE

1N5820 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	20 V
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

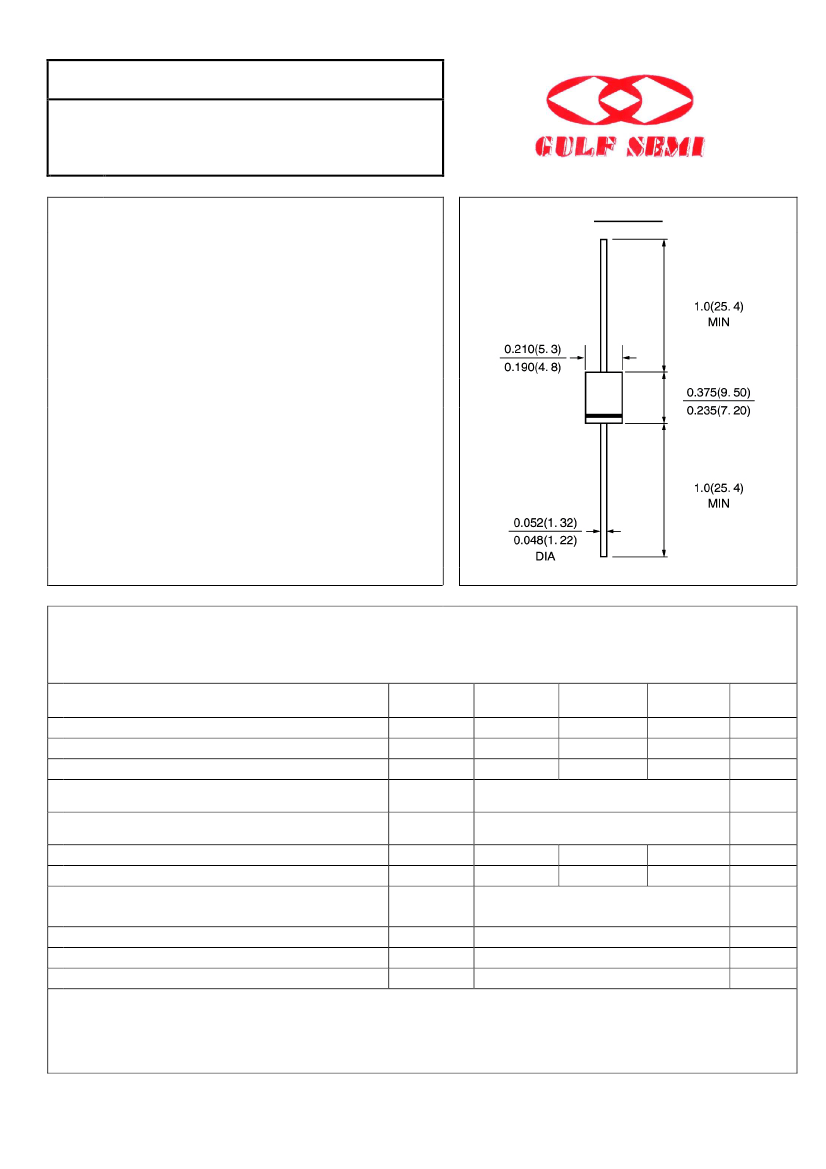

1N5820 THRU 1N5822

SCHOTTKY BARRIER

RECTIFIER

VOLTAGE: 20 TO 40V

CURRENT: 3.0A

FEATURE

High current capability, Low forward voltage drop

Low power loss, high efficiency

High surge capability

High temperature soldering guaranteed

250°C /10sec/0.375" lead length at 5 lbs tension

DO-201AD

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

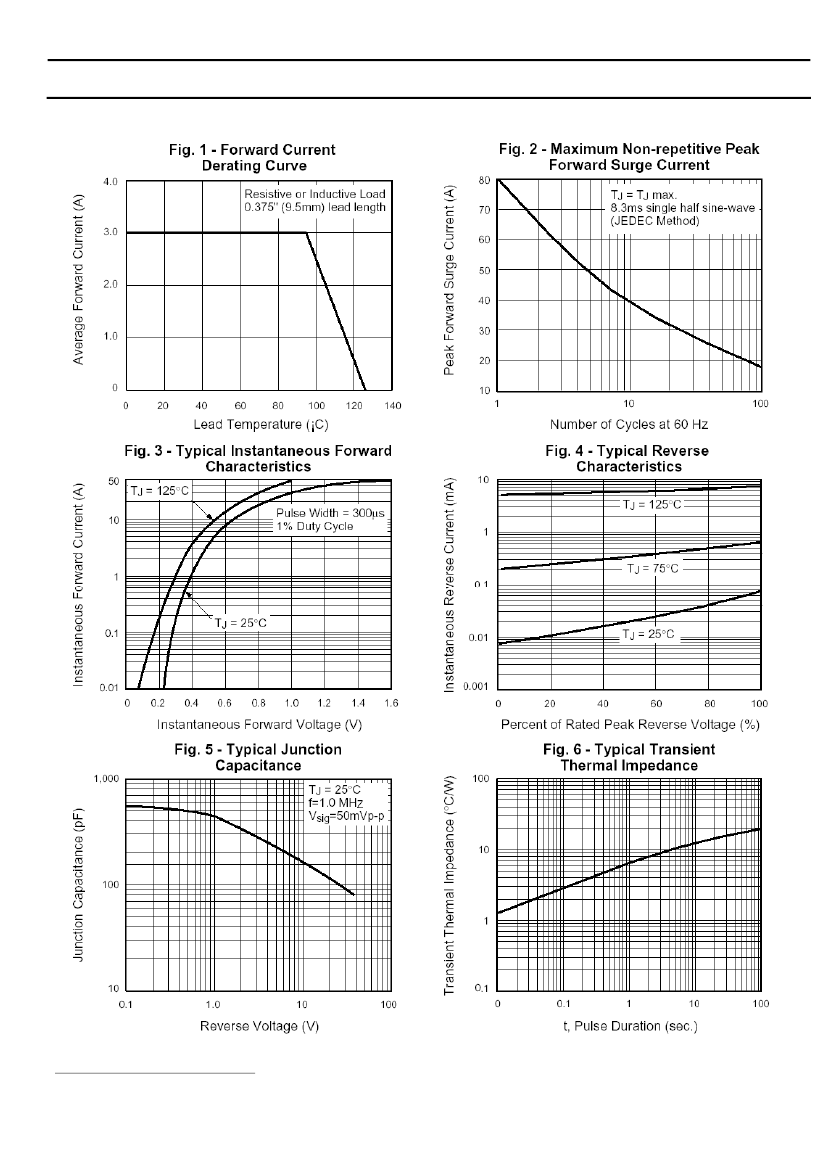

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8" lead length at T

=95°

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at 3.0A DC (Note 3)

Maximum Forward Voltage at 9.4A DC (Note 3)

Vrrm

Vrms

Vdc

If(av)

Ifsm

0.475

0.850

5820

5821

3.0

80.0

0.500

0.900

2.0

20.0

250

-55 to +125

0.525

0.950

5822

units

° /W

Maximum DC Reverse Current

Ta =25°

at rated DC blocking voltage (Note 3) Ta =100°C

Typical Junction Capacitance

(Note 1)

Typical Thermal Resistance

(Note 2)

R(ja)

Storage and Operating Junction Temperature

Tstg, Tj

Note:

1. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

2. Thermal Resistance from Junction to Ambient at 0.5" lead length, vertical P.C. Board Mounted

3. Pulse test 300

s pulse Width, 1%Duty Cycle

Rev.A5

www.gulfsemi.com

1N5820 Related Products

	1N5820	1N5821
Description	RECTIFIER DIODE	RECTIFIER DIODE, DO-201AD
Is it Rohs certified?	conform to	conform to
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.9 V
JEDEC-95 code	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	80 A	80 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	20 V	30 V
Maximum reverse current	2000 µA	2000 µA
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
