Cannon Fiber Optics
Design Guide
High Density Rectangular Connector
PHD Panel Mount Series

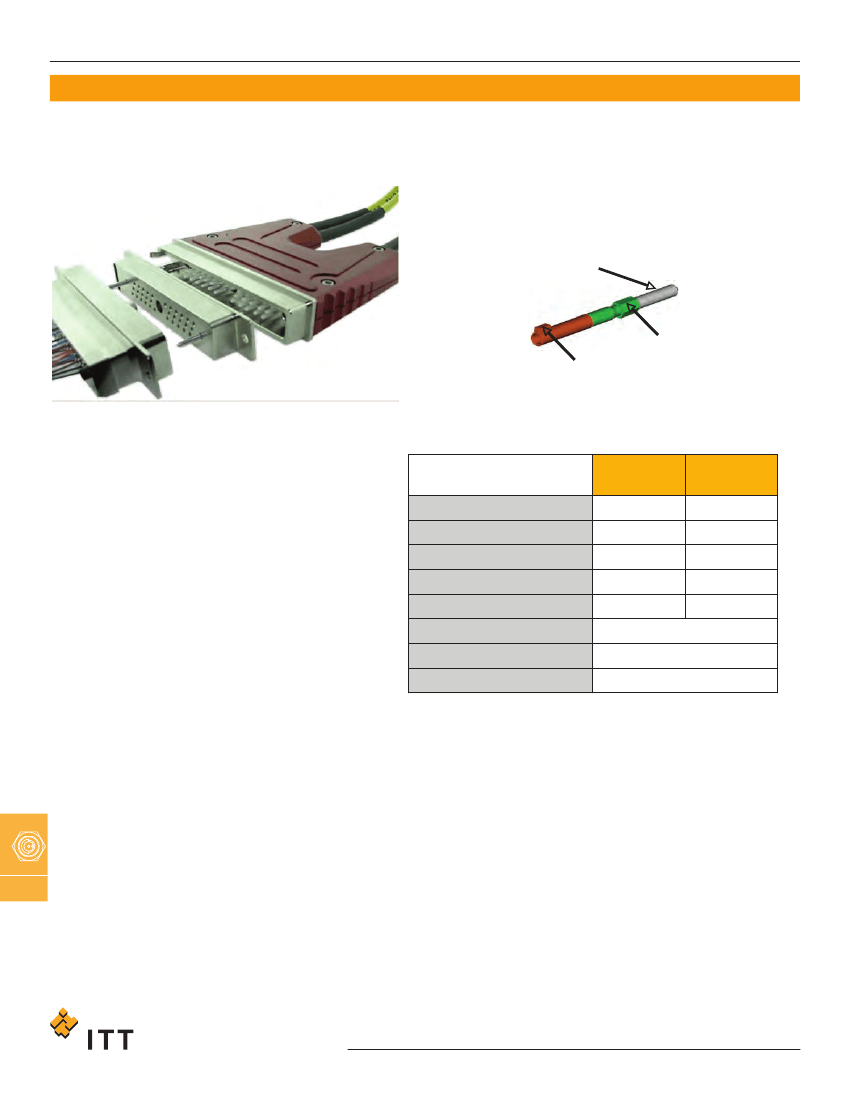

The PHD Panel Mount Connector incorporates a low profile design with a discrete keyed contact system for
repeatable low loss optical performance.
Size 22 Termini
Standard
PHD 1.25 mm
Ceramic Ferrule
Tuning
Key
Hex Index
Register
Product Features
– Three Piece Connector features Bulkhead Feed
thru Design in standard 8, 16, 18 and 32 Channel
Configurations.
– PHD Optical Contact System (Tuned size 22 Termini)
– All Metallic Bodies for Radiated Emission Suppres-
sion
– Internal Metallic Web for EMI Suppression and Ter-
minus Stability
– Integrated Metallic Shutter System for Reduced
Eye Hazard
– All Metallic Backshell (45 & 90 Degree)
– Removable alignment insert assembly mountable
in either plug or receptacle.
Ferrule (O.D.)
Insertion Loss (dB typ.)
Maximum Loss (dB max.)
Return Loss (dB typ.)
Return Loss (dB min.)
Channel Servicing
Channel Repair
Cyclic Durability
Multimode
62.5/125
1.25 mm
0.30
0.50
25
20
Singlemode
SMF 28
1.25 mm
0.20
0.30
56
50
Single
Single
1000
Fiber Optics
E
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
E-52
www.ittcannon.com
Cannon Fiber Optics
Design Guide
High
Specification Comparison
Density Rectangular Connector

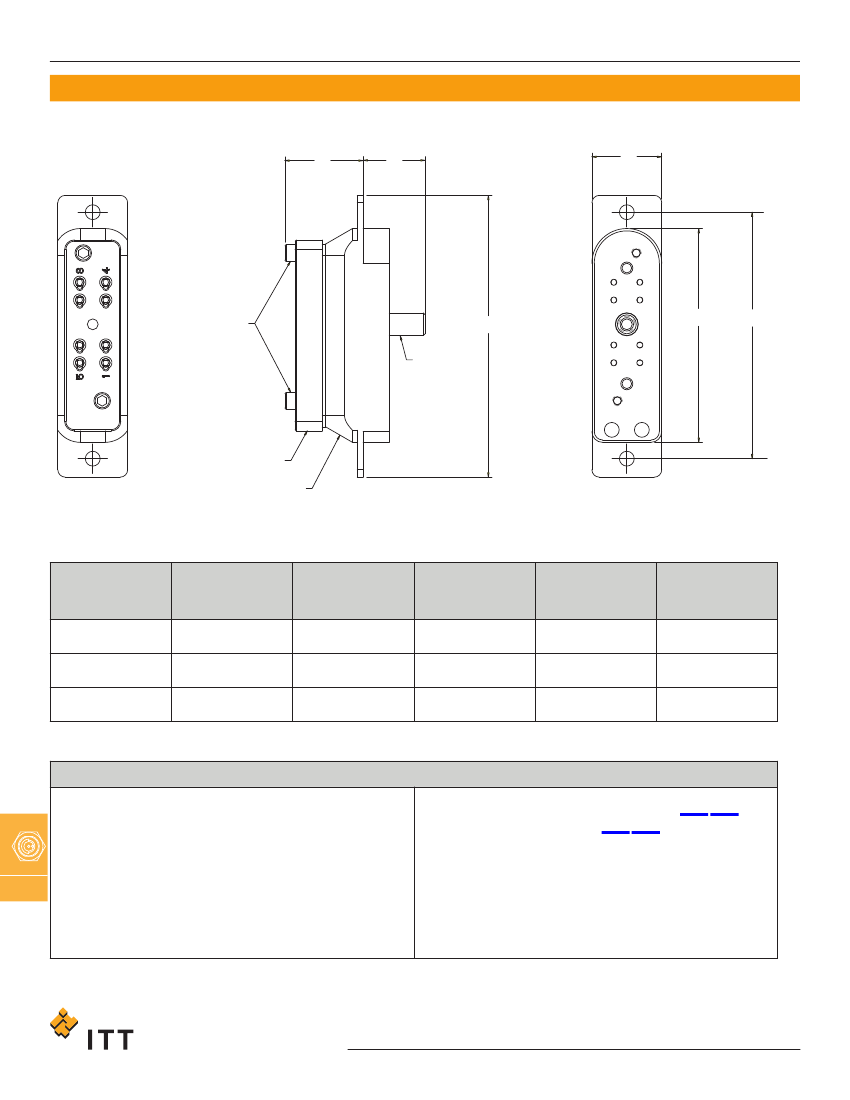

PLUG SHELL HOUSING
D
B
A
JACKSCREW
REAR PLATE
C
Shell
Size
8
16
32
PHD Patch Panel
Standard
Part Number
PHD140259-9
PHD140259-7
PHD140259-6
A
1.810
2.110
3.006
B
.590
.590
.590
C
1.000
1.000
1.000
D
1.122
1.122
1.122
Fiber Optics
PRODUCT NOTES
1. Packaging:
Packaging identification includes manu-
facturer’s name and part number
2. Material / Finish:
Plug Housing / Backplate: Aluminum Alloy / Electro-
less Nickel plating.
Jackscrew: Heat treated Stainless Steel Alloy / Passi-
vated
Screws & Washers : Stainless Steel / NA
3. Tooling:
Insertion / Removal tool:
Size 22, Part Number 274-0053-0000
4.
Plug Connector to be used with a Panel Mount Re-
ceptacle and Adapter Assembly (Pages 46-47). Ter-
mini – PHD Size 22 (Pages 30-31).
5. Applications:
Military/Aero space & Commercial
Fiber Optic Interconnect environments.
E
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
www.ittcannon.com
E-53
Cannon Fiber Optics
Design Guide
High Density Rectangular Connector

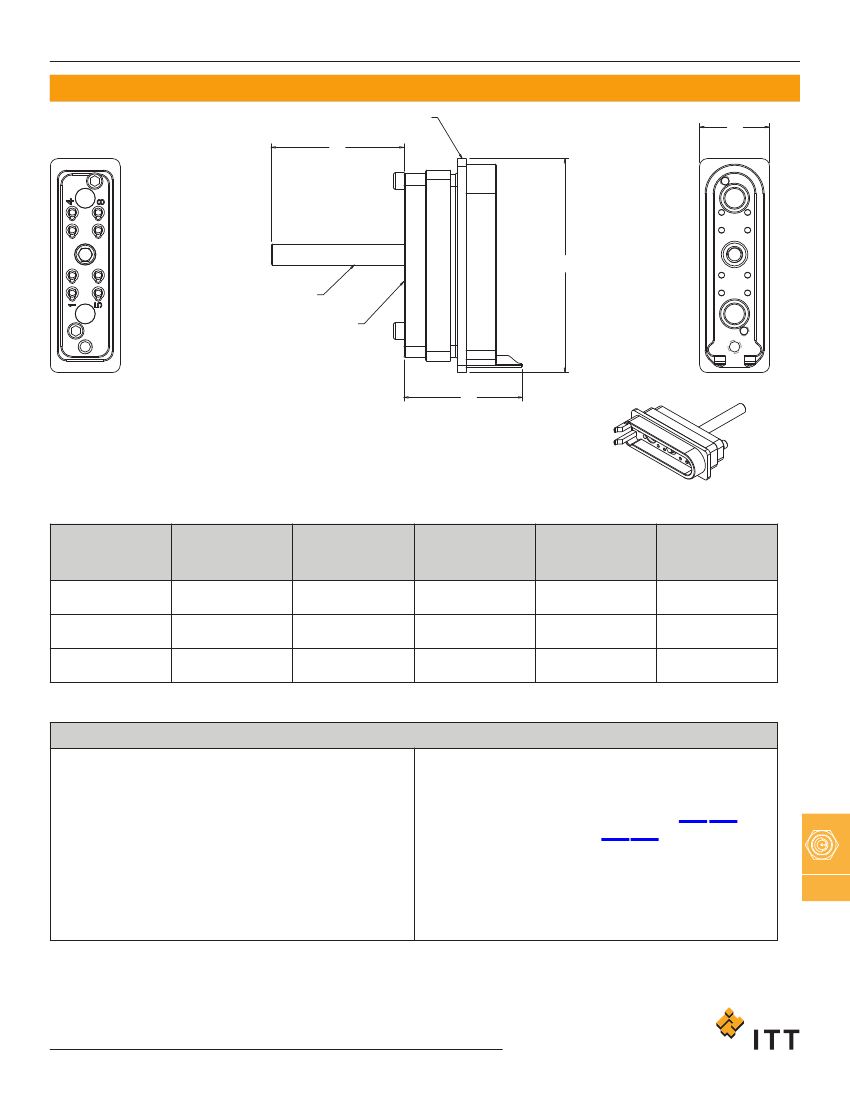

Bulkhead Receptacle Connector Assembly
D
C
B
RETENTION
SCREWS
A
JACK
SCREW
RECEIVER
E
F
REAR PLATE
RECEPTACLE SHELL
Shell
Size
8
PHD Patch Panel
Standard
Part Number
PHD140260-10
PHD140260-8
PHD140260-7
A
2.366
2.666
3.566
B
.590
.590
.590
C
.509
.524
.574
D
.661
.661
.611
Fiber Optics
16
32
PRODUCT NOTES
1. Packaging:
Packaging identification includes manu-
facturer’s name and part number
2. Material / Finish:
Receptacle Housing / Backplate: Aluminum Alloy /
Electroless Nickel plating.
3. Tooling:
Insertion / Removal tool:
Size 22, Part Number 274-0053-0000
4.
Plug Connector to be used with a Panel Mount Re-
ceptacle and Adapter Assembly (Pages 45-47). Ter-
mini – PHD Size 22 (Pages 30-31).
5. Applications:
Military/Aero space & Commercial
Fiber Optic Interconnect environments.
E
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
E-54
www.ittcannon.com
Cannon Fiber Optics
Design Guide
High
Specification Comparison
Density Rectangular Connector

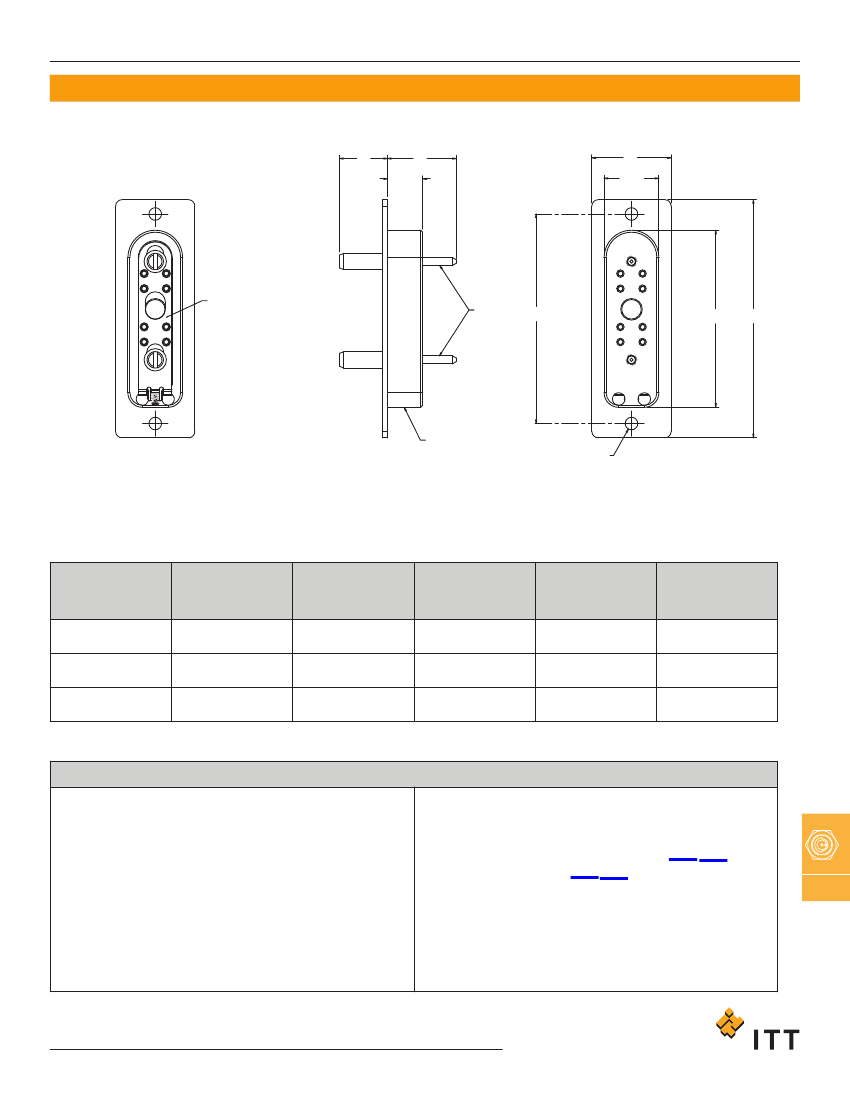

Alignment Adapter Insert Assembly
D
C
.350
REF
B
.544
REF
SHUTTER PLATE
GUIDE
PINS
F
E
A
ADAPTER
SHELL
2X
ø
.125 REF
(MOUNTING HOLES)
Shell
Size
8
16
32
PHD Patch Panel
Standard
Part Number
PHD140261-2
PHD140261-3
PHD140261
A
2.366
2.666
3.566
B
.787
.787
.787
C
.448
.448
.448
D
.684
Fiber Optics
.684
.684
PRODUCT NOTES
1. Packaging:
Packaging identification includes manu-
facturer’s name and part number
2. Material / Finish:
Adapter Housing Insert: Aluminum Alloy / Electroless
Nickel plating.
Sutter/Plate, Spring & Guide Pins: Stainless Steel
Alloy / Passivated.
Alignment Sleeve: Ceramic
Retention Clip: Stainless Steel Alloy / Passivated.
3. Tooling:
Insertion / Removal tool:
Size 22, Part Number 274-0053-0000
4.
Adapter Insert to be used with a Panel Mount Re-
ceptacle and Patch Panel Plug (Pages 45-46). Termini
– PHD Size 22 (Pages 30-31).
5. Applications:
Military/Aero space & Commercial
Fiber Optic Interconnect environments.
E
Dimensions shown in inches (mm)
Specifications and dimensions subject to change
www.ittcannon.com
E-55
