DSW-USD-TU1-1 datasheet, PDF - EEWORLD Datasheet

DSW-USD-TU1-1: DescriptionSingle Color LED, White, 2.5mm, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size939KB，13 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/

Download Datasheet Parametric Compare View All

DSW-USD-TU1-1 Overview

Single Color LED, White, 2.5mm, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Maker	DOMINANT
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	WHITE
Configuration	SINGLE
Maximum forward current	0.02 A
JESD-609 code	e3
Nominal luminous intensity	355.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.2 mm
method of packing	TAPE AND REEL 7\"
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
Terminal surface	TIN
Terminal pitch	4.2 mm
perspective	120 deg

DOMINANT

Innovating Illumination

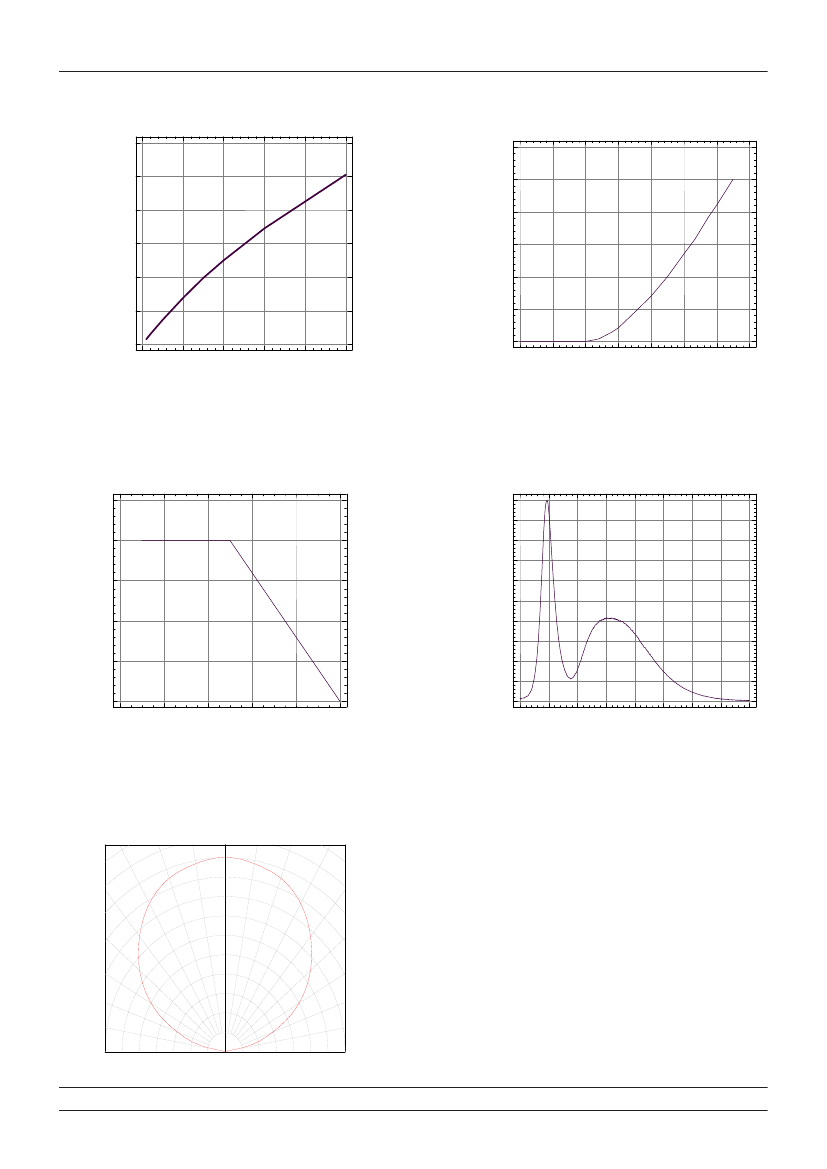

DATA SHEET:

Opto Technologies

Right Angle DomiLED

InGaN White : DSx-xSx

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

Designed for sideway illumination.

120° viewing angle.

Small package outline.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Consumer Appliances: LCD illumination as in PDAs, LCD TV.

Display: full color display video notice board.

Industry: white goods (eg: Oven, microwave, etc.).

21/06/2012 V7.0

	DSW-USD-TU1-1	DSW-USD-ST2-1	DSW-USD-UV1-1	DSW-SSD-RS2-1
Description	Single Color LED, White, 2.5mm, PLASTIC PACKAGE-2	Single Color LED, White, 2.5mm, PLASTIC PACKAGE-2	Single Color LED, White, 2.5mm, PLASTIC PACKAGE-2	Single Color LED, White, 2.5mm, PLASTIC PACKAGE-2
Maker	DOMINANT	DOMINANT	DOMINANT	DOMINANT
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown
color	WHITE	WHITE	WHITE	WHITE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A
JESD-609 code	e3	e3	e3	e3
Nominal luminous intensity	355.0 mcd	285.0 mcd	560.0 mcd	180.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7\"
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2.5 mm	2.5 mm	2.5 mm	2.5 mm
surface mount	YES	YES	YES	YES
Terminal surface	TIN	TIN	TIN	TIN
Terminal pitch	4.2 mm	4.2 mm	4.2 mm	4.2 mm
perspective	120 deg	120 deg	120 deg	120 deg
