LX5242CTF datasheet, PDF - EEWORLD Datasheet

LX5242CTF: DescriptionSCSI Terminator, 9-Line, 105ohm, BICMOS, PQFP48, PLASTIC, TQFP-48; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size541KB，8 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

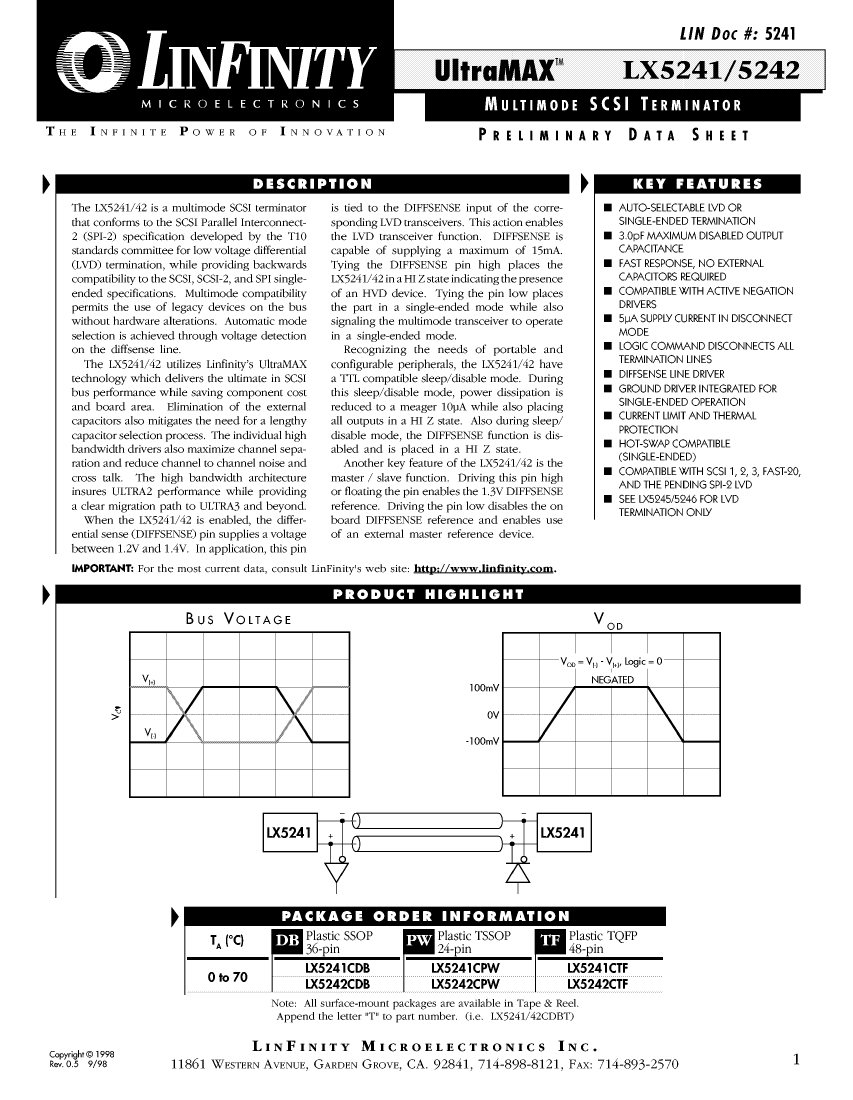

LX5242CTF Overview

SCSI Terminator, 9-Line, 105ohm, BICMOS, PQFP48, PLASTIC, TQFP-48

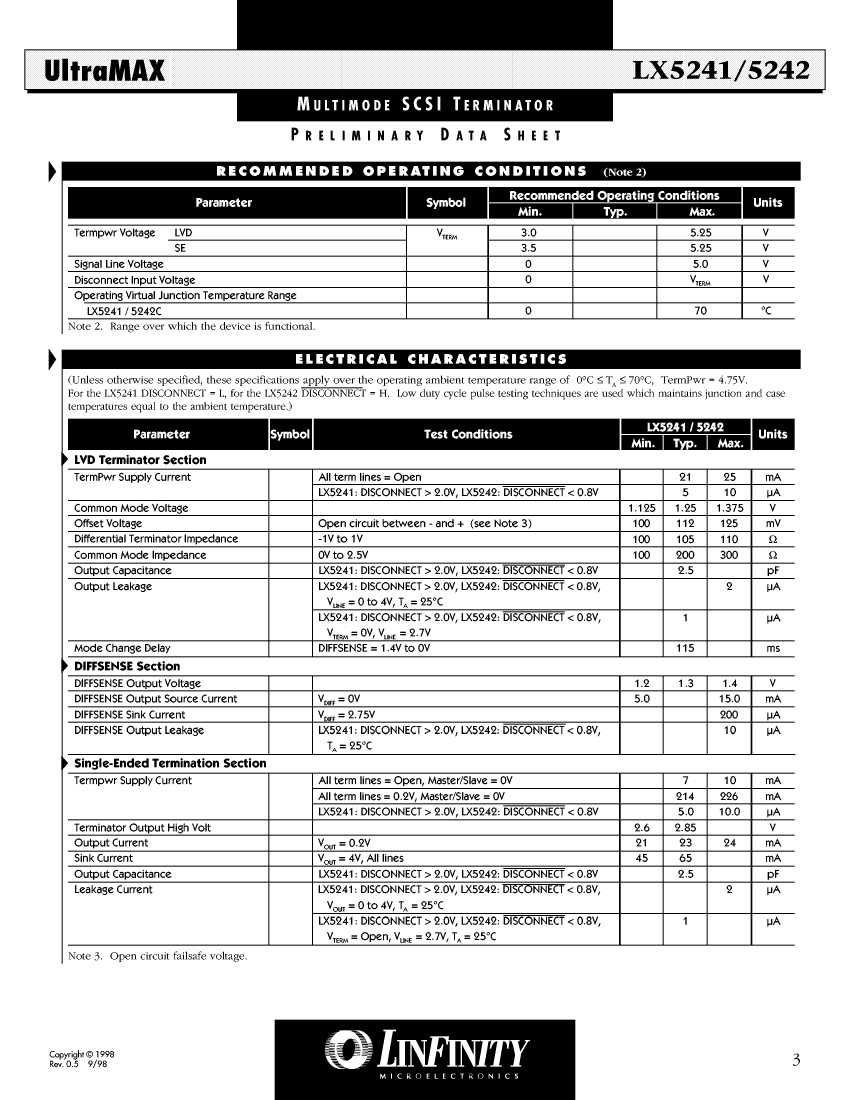

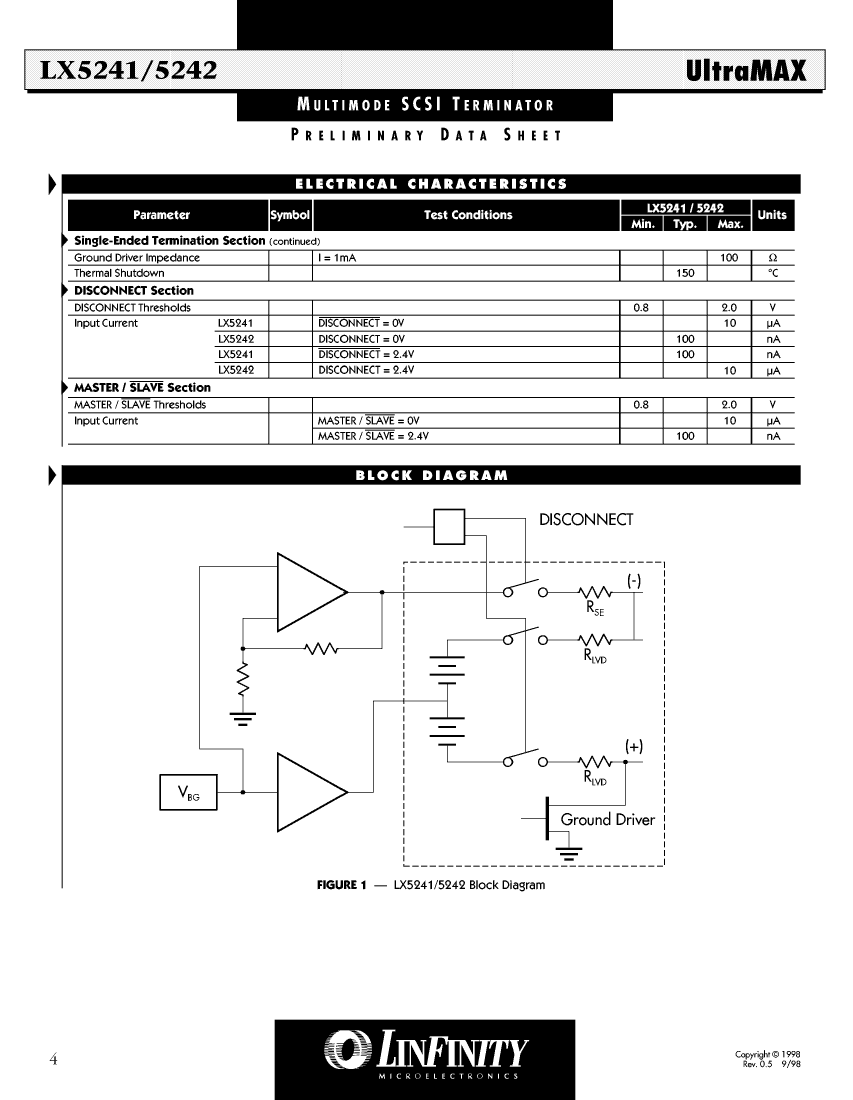

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	PLASTIC, TQFP-48
Reach Compliance Code	unknown
Differential output	YES
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	S-PQFP-G48
JESD-609 code	e0
Number of functions	1
Number of signal lines	9

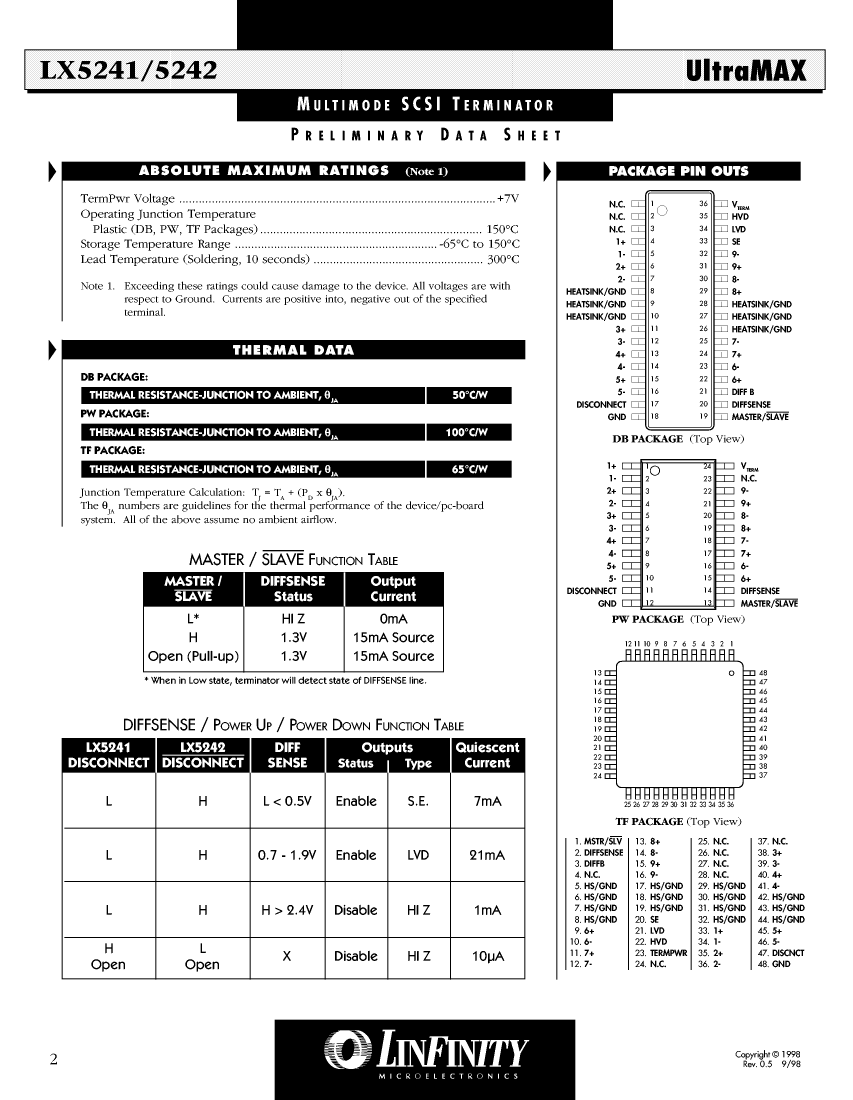

Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP48,.35SQ,20
Package shape	SQUARE
Package form	FLATPACK
power supply	4.75 V
Nominal pull-up resistor	105 Ω
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	3 V
Nominal supply voltage	4.75 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD

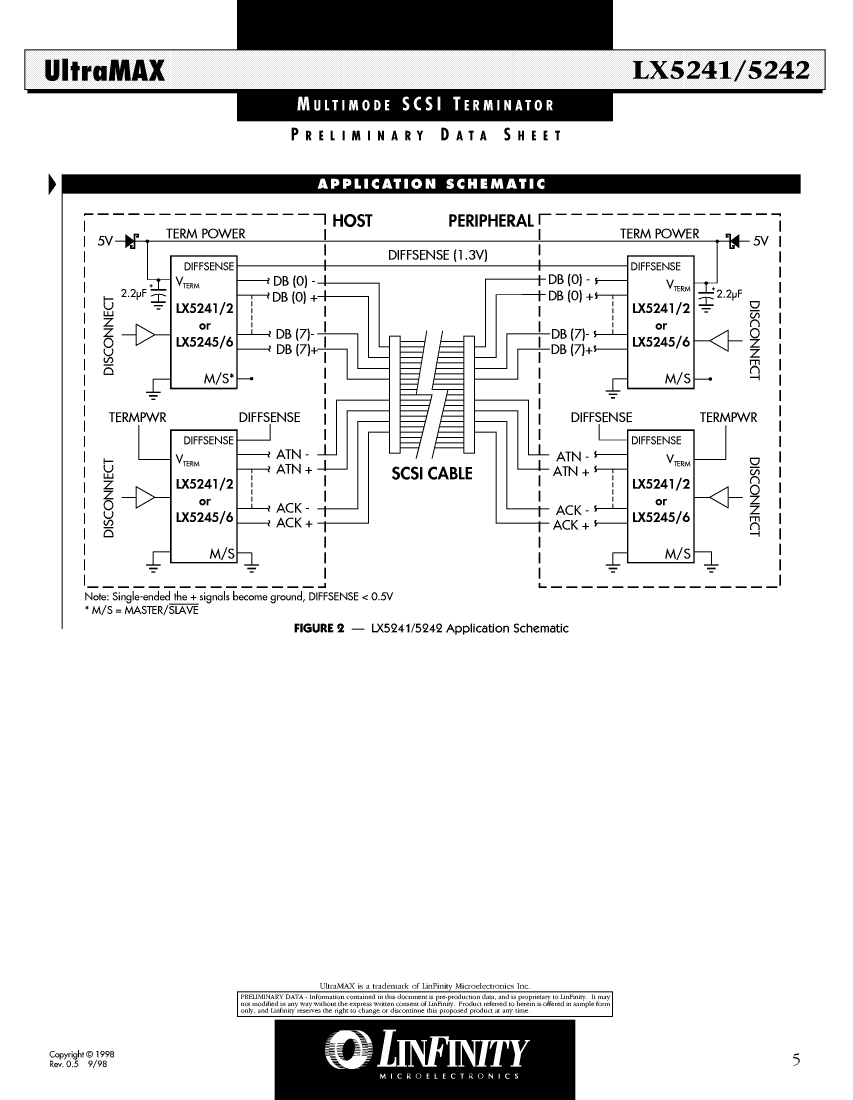

	LX5242CTF	LX5241CTF
Description	SCSI Terminator, 9-Line, 105ohm, BICMOS, PQFP48, PLASTIC, TQFP-48	SCSI Terminator, 9-Line, 105ohm, BICMOS, PQFP48, PLASTIC, TQFP-48
Is it Rohs certified?	incompatible	incompatible
Maker	Linfinity Microelectronics	Linfinity Microelectronics
package instruction	PLASTIC, TQFP-48	PLASTIC, TQFP-48
Reach Compliance Code	unknown	unknown
Differential output	YES	YES
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	S-PQFP-G48	S-PQFP-G48
JESD-609 code	e0	e0
Number of functions	1	1
Number of signal lines	9	9
Number of terminals	48	48
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Encapsulate equivalent code	QFP48,.35SQ,20	QFP48,.35SQ,20
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
power supply	4.75 V	4.75 V
Nominal pull-up resistor	105 Ω	105 Ω
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	4.75 V	4.75 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD
