1 TO 30 GHz DOUBLE-BALANCED MIXER
MODEL: DBO130LA2
FEATURES
• RF/LO coverage ......... 1 to 30 GHz
• IF operation ............... DC to 500 MHz
• Conversion loss .......... 8.5 dB typical
• Ultra-broadband frequency coverage
• Operational as fundamental and third
order harmonic mixer
MITEQ’s double-balanced DBO130LA2 provides the industry’s broadest frequency span in a single device. The
extended performance baluns and efficiently matched diodes provide five octaves of instantaneous frequency
coverage. This unit is ideal for instrumentation requirements of converting broad frequency ranges to a com-
mon IF frequency.
ELECTRICAL SPECIFICATIONS
INPUT PARAMETERS
RF frequency range
RF VSWR (RF = -10 dBm, LO = +13 dBm)
LO frequency range
LO power range
LO VSWR (LO = +13 dBm)
TRANSFER CHARACTERISTICS
Conversion loss (IF = 100 MHz, LO = +13 dBm)
Single-sideband noise figure
Isolation – LO to RF
Isolation – LO to IF
Isolation – RF to IF
Input power at 1 dB compression
Input two-tone third-order intercept point
OUTPUT PARAMETERS
IF frequency range
IF VSWR (IF = -10 dBm, LO = +13 dBm)
CONDITION
3 dB Bandwidth
1 to 30 GHz
CONDITION
1 to 30 GHz
1 to 30 GHz
1 to 30 GHz
1 to 30 GHz
1 to 30 GHz
1 to 30 GHz
CONDITION
UNITS
GHz
Ratio
GHz
dBm
Ratio
UNITS
dB
dB
dB
dB
dB
dBm
dBm
UNITS
GHz
Ratio
MIN.
DC
2.5:1
18
MIN.
1
+10
3:1
TYP.
8.5
9
30
15
15
+5
+15
TYP.
MAX.
0.5
MAX.
9.5
MIN.
1
3:1
30
+13
TYP.
MAX.
30
21

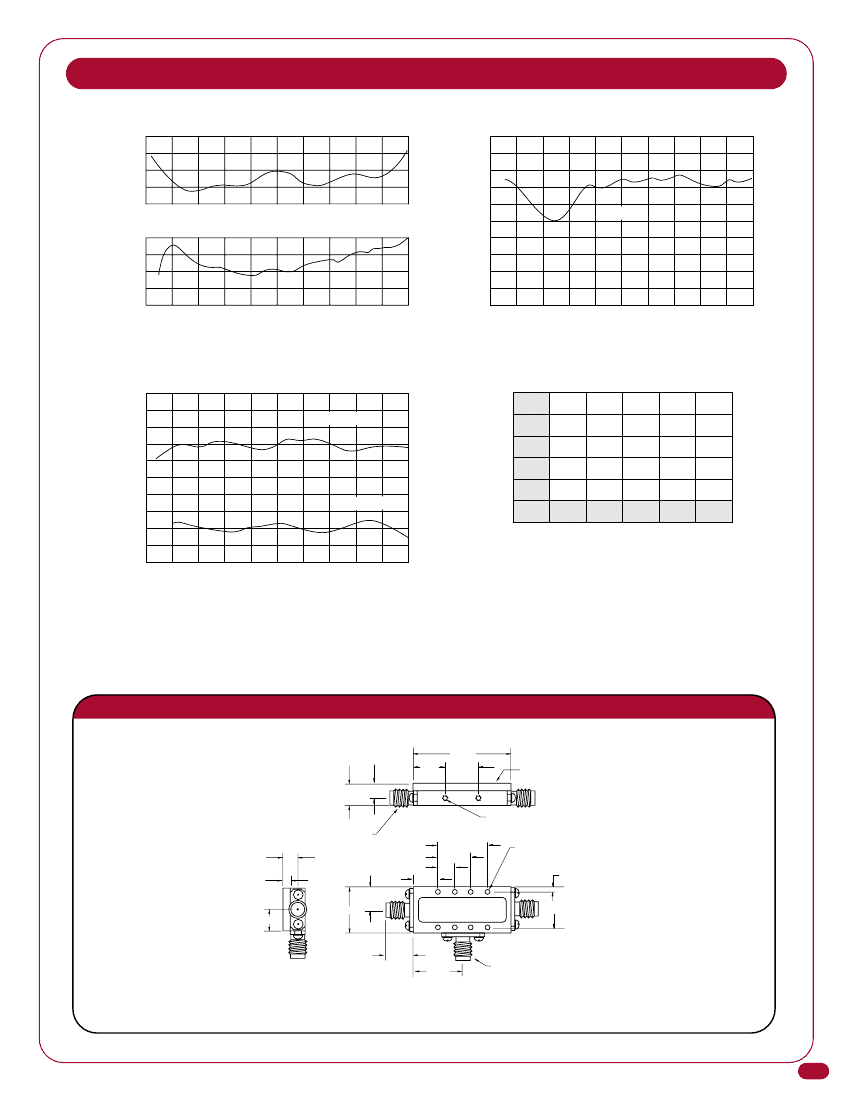

DB0130LA2 TYPICAL TEST DATA
VSWR
(LO = +13 dBm)
3:1
2:1
VSWR (RATIO)
1:1
3:1
2:1
1:1
RF
LO
ISOLATION
0
20
ISOLATION (dB)
40
60
80
0
6
12
18
24
30
LO TO RF
0
6
12
18
FREQUENCY (GHz)
24
30
0
6
12
18
FREQUENCY (GHz)
24
30
FUNDAMENTAL AND THIRD
HARMONIC CONVERSION LOSS
(LO = +13 dBm)
0
CONVERSION LOSS (dB)
5
10
15
20
25
RF TO LO
SINGLE-TONE (m) RF x (n) LO RELATIVE SPUR LEVEL (dBc)
TO REF (RF = -10 dBm, LO = +13 dBm)
5
RF HARMONIC (m)
4
3
2
1
5
4
3
2
1
94
81
59
43
REF
1
100
84
72
54
30
2
100
82
57
43
10
3
104
88
80
50
37
4
95
83
55
50
18
5
NOISE FIGURE (dB)
RF TO 3LO
LO HARMONIC (n)
0
6
12
18
FREQUENCY (GHz)
24
30
MAXIMUM RATINGS
Specifications taken at .......................... +25°C
Operating temperature .......................... -54 to +85°C
Storage temperature ............................ -65 to +125°C
OUTLINE DRAWING
1.500
.510
.200
2-56 X .10 DEEP
MTG. HOLES (2 PLACES)
TYPE K FIELD REPLACEABLE
FEMALE CONNECTOR (TYP. 2 PLACES)
.200 TYP.
(3 PLACES)
.090
.330
.660
.330
L
I
R
.524
.250
.375
.068
.750
.500
.098 DIA. THRU MTG.
HOLES (8 PLACES)
.480
OPTIONAL
SPACER PLATE
.310
.38
TYP.
.750
TYPE SMA FIELD REPLACEABLE
FEMALE CONNECTOR
(TYP. 2 PLACES)
22
