DB583-Y datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DB583-Y

Preview

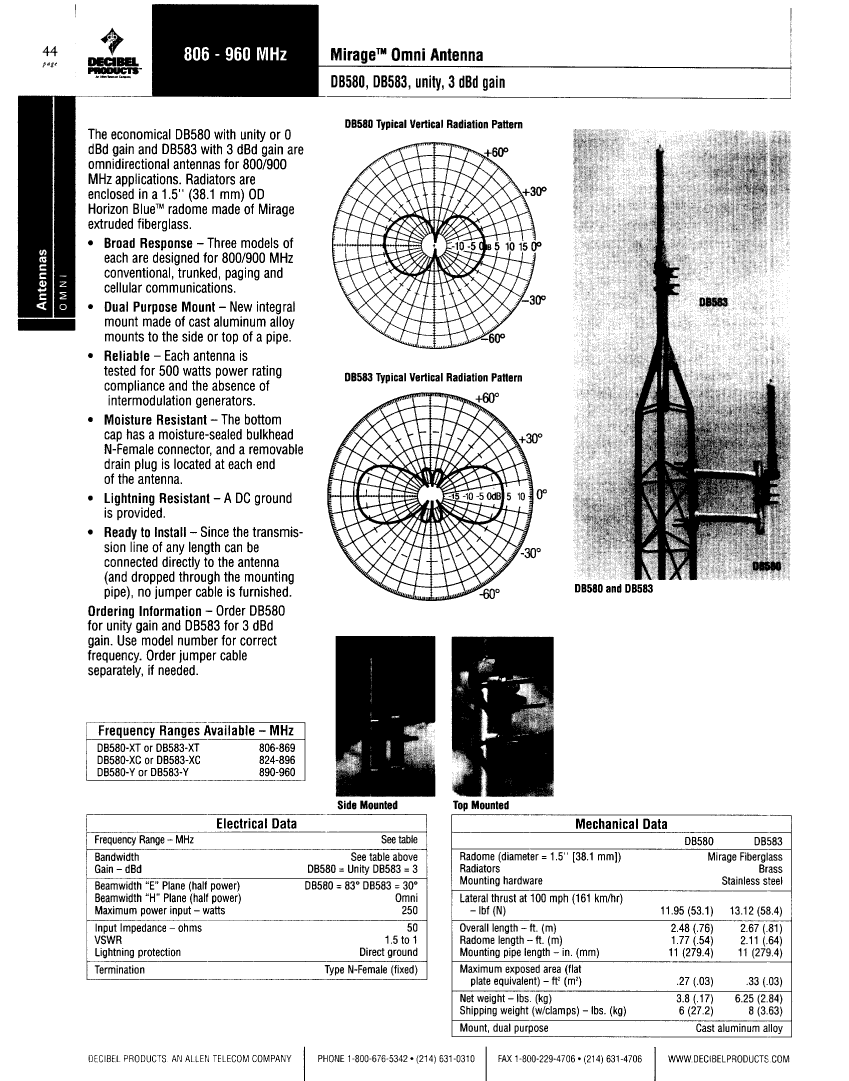

DB583-Y: DescriptionBase Station/Broadcast Transmission Antenna, 890MHz Min, 960MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size292KB，1 Pages; ManufacturerCommScope Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

DB583-Y Overview

Base Station/Broadcast Transmission Antenna, 890MHz Min, 960MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth

DB583-Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CommScope Inc
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

DB583-Y Related Products

	DB583-Y	DB583-XT	DB580-XT	DB580-Y	DB583-XC	DB580-XC
Description	Base Station/Broadcast Transmission Antenna, 890MHz Min, 960MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 806MHz Min, 869MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 806MHz Min, 869MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 890MHz Min, 960MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 824MHz Min, 896MHz Max, 5.15dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 824MHz Min, 896MHz Max, 2.15dB Gain, 360deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	-	UPS SHIPPABLE	UPS SHIPPABLE	UPS SHIPPABLE	UPS SHIPPABLE	UPS SHIPPABLE
application	-	CELLULAR	CELLULAR	CELLULAR	CELLULAR	CELLULAR
bandwidth	-	63 MHz	63 MHz	70 MHz	72 MHz	72 MHz
Beam Width-E	-	30 deg	83 deg	83 deg	30 deg	83 deg
Beamwidth-H	-	360 deg	360 deg	360 deg	360 deg	360 deg
Characteristic impedance	-	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Gain	-	5.15 dB	2.15 dB	2.15 dB	5.15 dB	2.15 dB
Omnidirectional	-	YES	YES	YES	YES	YES
Maximum operating frequency	-	869 MHz	869 MHz	960 MHz	896 MHz	896 MHz
Minimum operating frequency	-	806 MHz	806 MHz	890 MHz	824 MHz	824 MHz
polarization	-	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	-	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	-	400 W	400 W	400 W	400 W	400 W
Maximum voltage standing wave ratio	-	1.5	1.5	1.5	1.5	1.5
