DS-318 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DS-318

DS-318: Description5MHz - 500MHz RF/MICROWAVE SPLITTER, 1dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size101KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

DS-318 Overview

5MHz - 500MHz RF/MICROWAVE SPLITTER, 1dB INSERTION LOSS

DS-318 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
Maximum input power (CW)	30 dBm
Maximum insertion loss	1 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

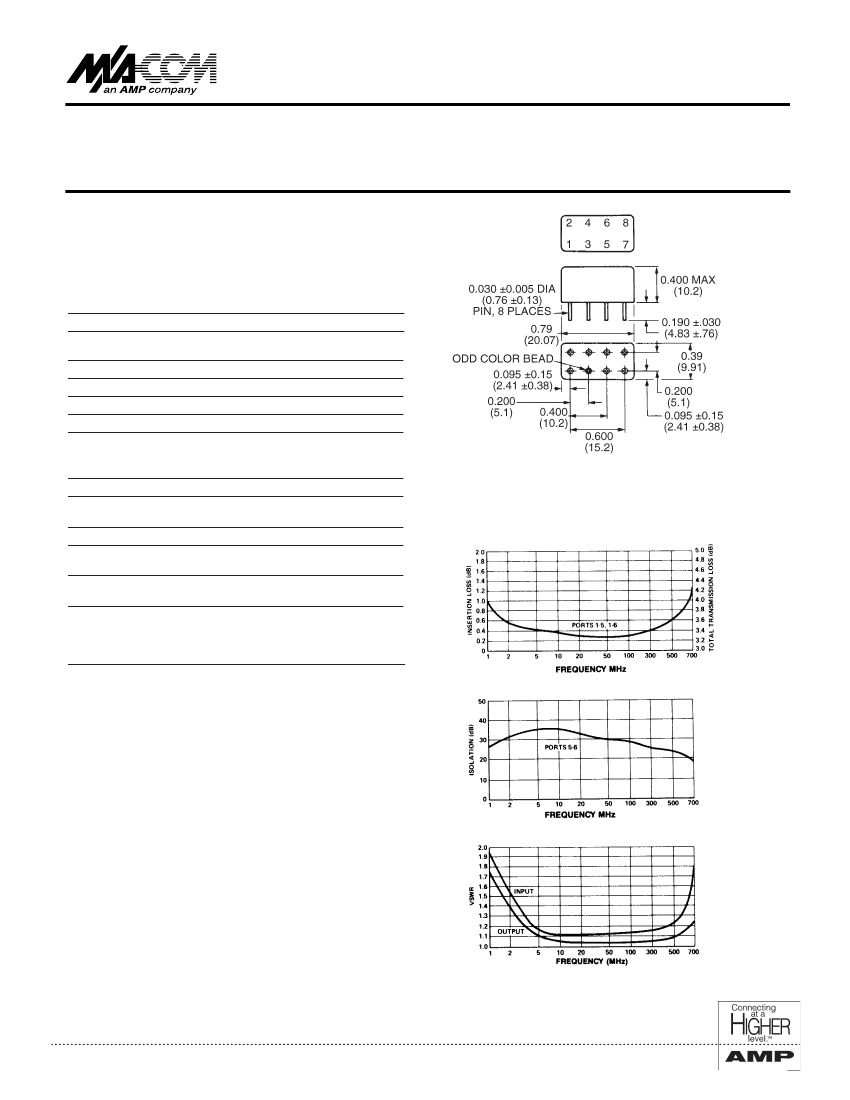

Plug-In Two Way Power Divider

5 - 500 MHz

Features

DS-318

V2.00

RH-1

Low Cost

Convenient Plug-In Mounting

(From -55°C to +85°C)

5-500 MHz

0.5 dB Max

1.0 dB Max

18 dB Min

0.2 dB Max

2° Max

1.5:1 Max

Guaranteed Speciﬁcations*

Frequency Range

Insertion Loss

(Less coupling)

Isolation

Amplitude Balance

Phase Balance

VSWR (All Ports)

10-200MHz

5-500 MHz

Operating Characteristics

Impedance

Maximum Power Rating

or Input Power

Internal Load DIssipation

Environmental

MIL-STD-202 screening available.

Pin Conﬁguration

Σ;

P1, Outputs P5 & P6

All other pins ground.

50 Ohms Nominal

1 Watt Max

0.125 Watts Max

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)

WEIGHT (APPROX.): 0.23 OUNCES 6.5 GRAMS

Typical Performance

INSERTION LOSS

* All speciﬁcations apply with 50 ohm source and load impedance.

Ordering Information

Model No.

DS-318 PIN

Package

Relay Header

ISOLATION

VSWR

M/A-COM Division of AMP Incorporated

North America: Tel. (800) 366-2266, Fax (800) 618-8883

Asia/Paciﬁc: Tel. +85 2 2111 8088, Fax +85 2 2111 8087

Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020

www.macom.com

AMP and Connecting at a Higher Level are trademarks.

Speciﬁcations subject to change without notice.

6-32

DS-318 Related Products

	DS-318	DS-318PIN
Description	5MHz - 500MHz RF/MICROWAVE SPLITTER, 1dB INSERTION LOSS	DS-318PIN
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown
