QS54FCT3245CDB datasheet, PDF - EEWORLD Datasheet

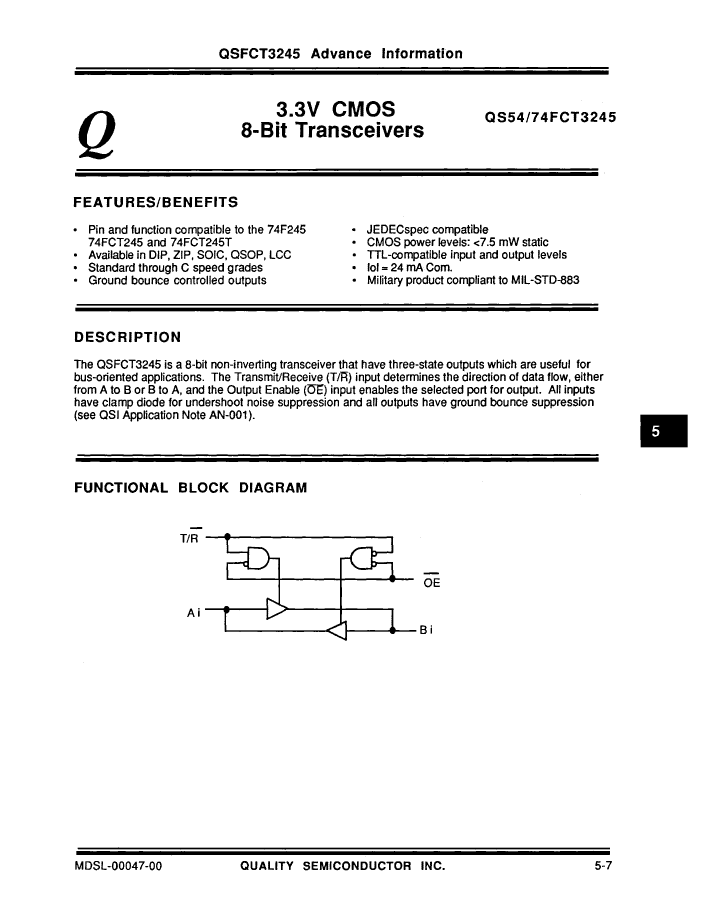

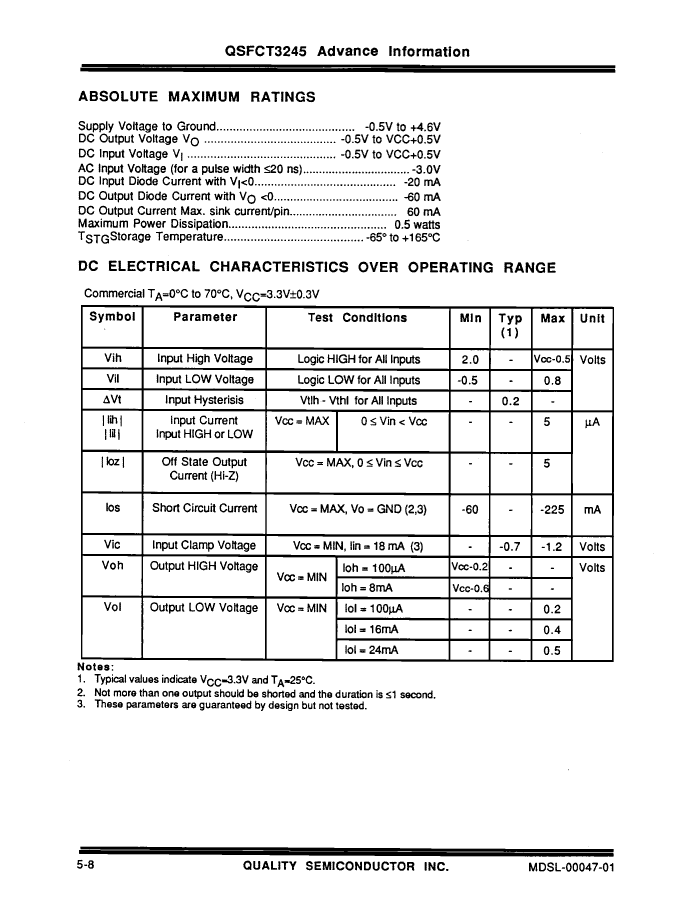

QS54FCT3245CDB: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20,; Categorylogic logic; File Size54KB，2 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

QS54FCT3245CDB Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20,

Parameter Name	Attribute value
Maker	Quality Semiconductor Inc
Reach Compliance Code	unknown
Other features	INPUTS CAN BE DRIVEN BY 3.3V OR 5V COMPONENTS; WITH COMMON OUTPUT ENABLE AND DIRECTION CONTROL
series	FCT
JESD-30 code	R-GDIP-T20
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal location	DUAL
