M83513/08C06 datasheet, PDF - EEWORLD Datasheet

M83513/08C06: DescriptionD Type Connector, 21 Contact(s), Male, 0.05 inch Pitch, Wire Terminal, Hole .087-.098, Plug,; CategoryThe connector The connector; File Size342KB，4 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric View All

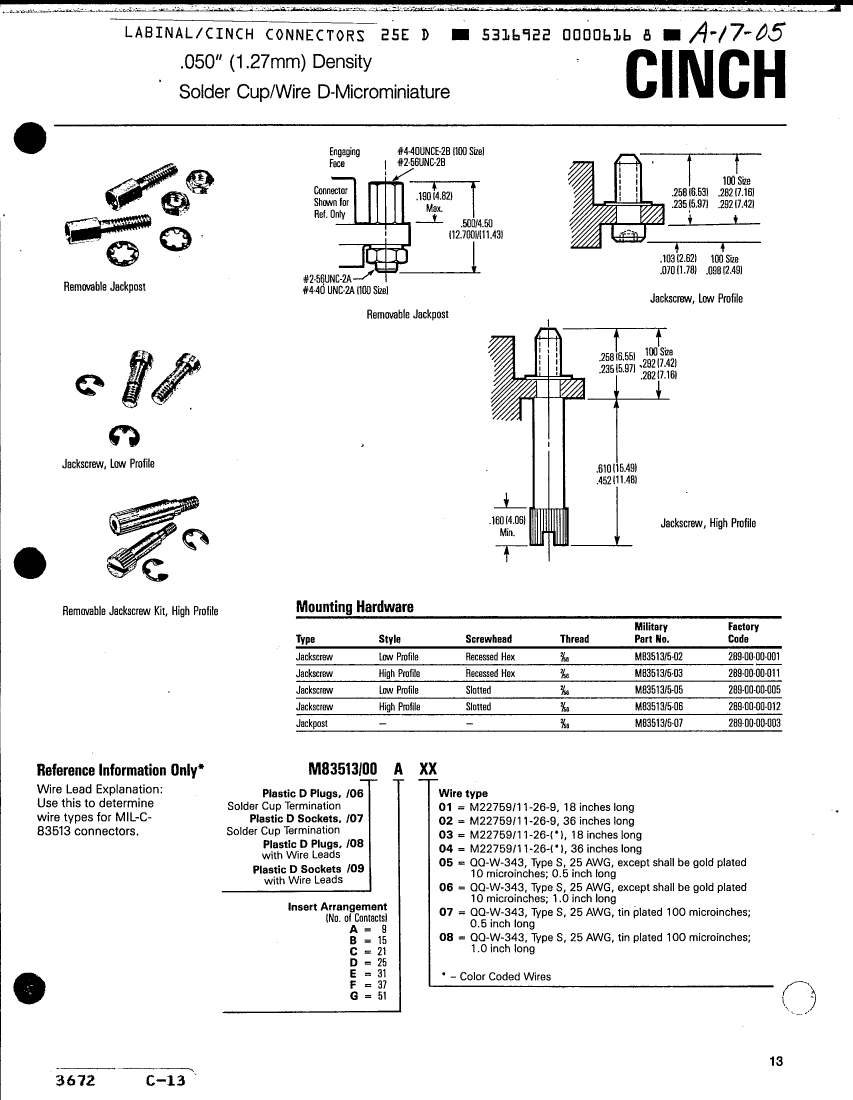

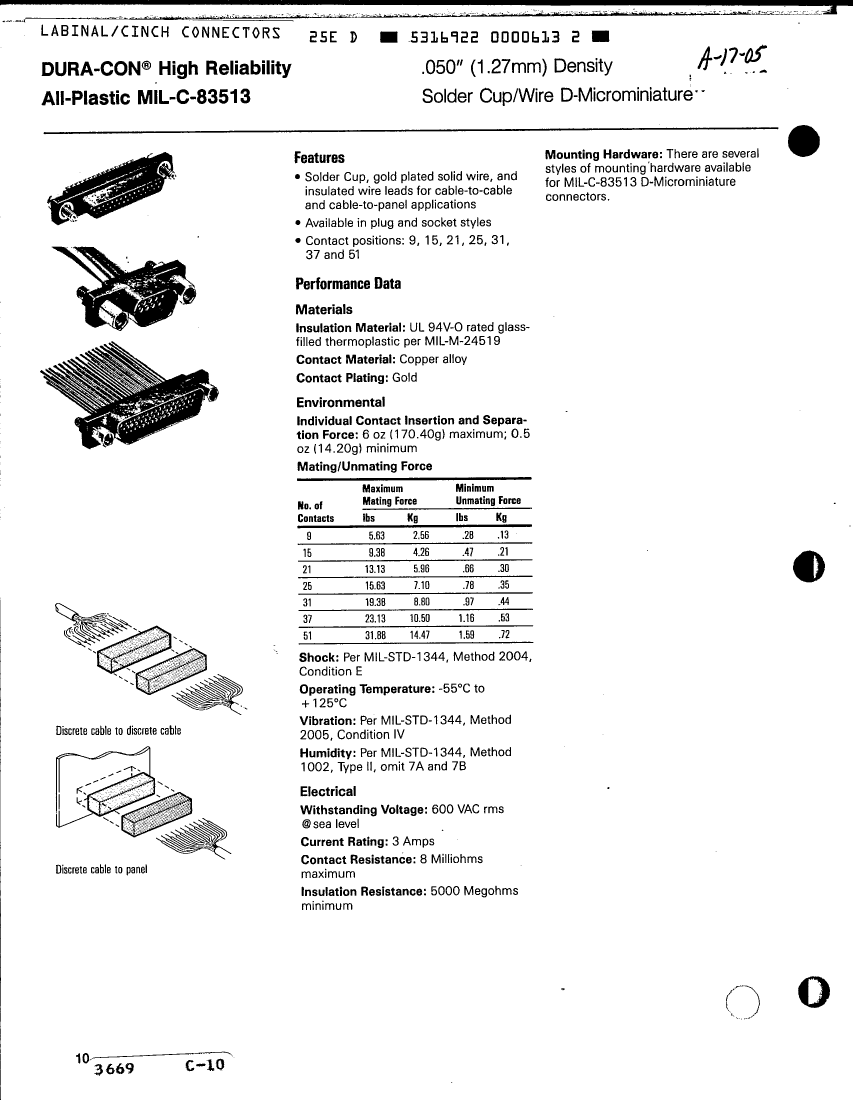

M83513/08C06 Overview

D Type Connector, 21 Contact(s), Male, 0.05 inch Pitch, Wire Terminal, Hole .087-.098, Plug,

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-83513

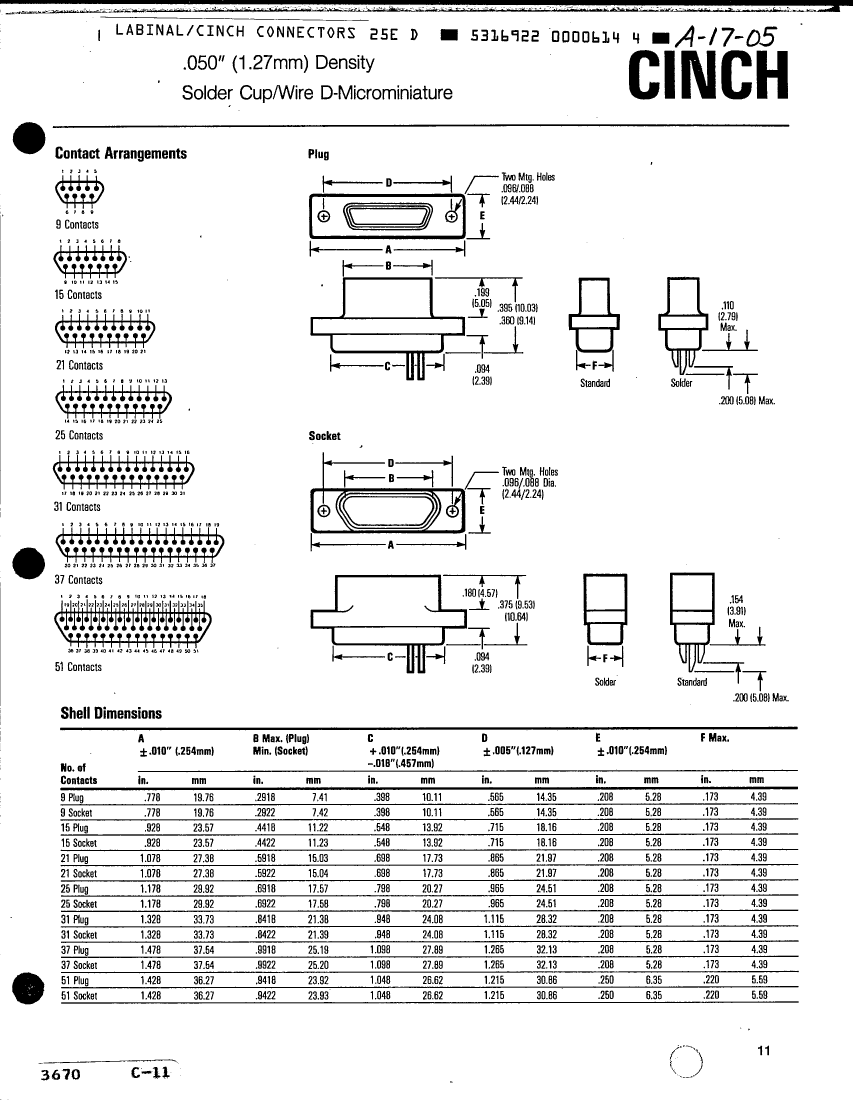

body width	0.208 inch
subject depth	0.196 inch
body length	1.078 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S21P0
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
MIL compliance	YES
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO

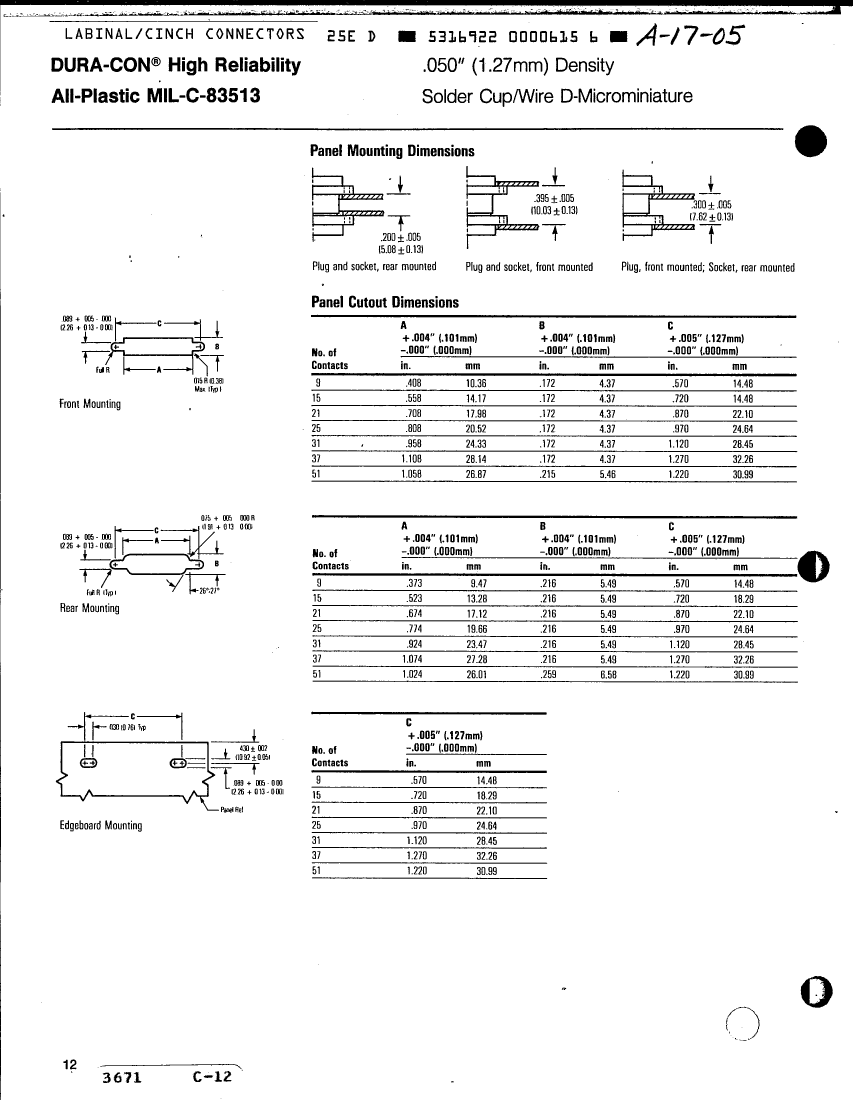

Installation option 1	HOLE .096
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	MIL
reliability	MIL-C-83513
Shell material	PLASTIC
Housing size	C
Termination type	CRIMP
Total number of contacts	21
Maximum wire diameter	24 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	0.139 N
