BYT56BGP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYT56BGP

BYT56BGP: DescriptionSINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER VOLTAGE:50 TO 1000V CURRENT: 3.0A; CategoryDiscrete semiconductor diode; File Size130KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric Compare View All

BYT56BGP Overview

SINTERED GLASS JUNCTION FAST SWITCHING PLASTIC RECTIFIER VOLTAGE:50 TO 1000V CURRENT: 3.0A

BYT56BGP Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

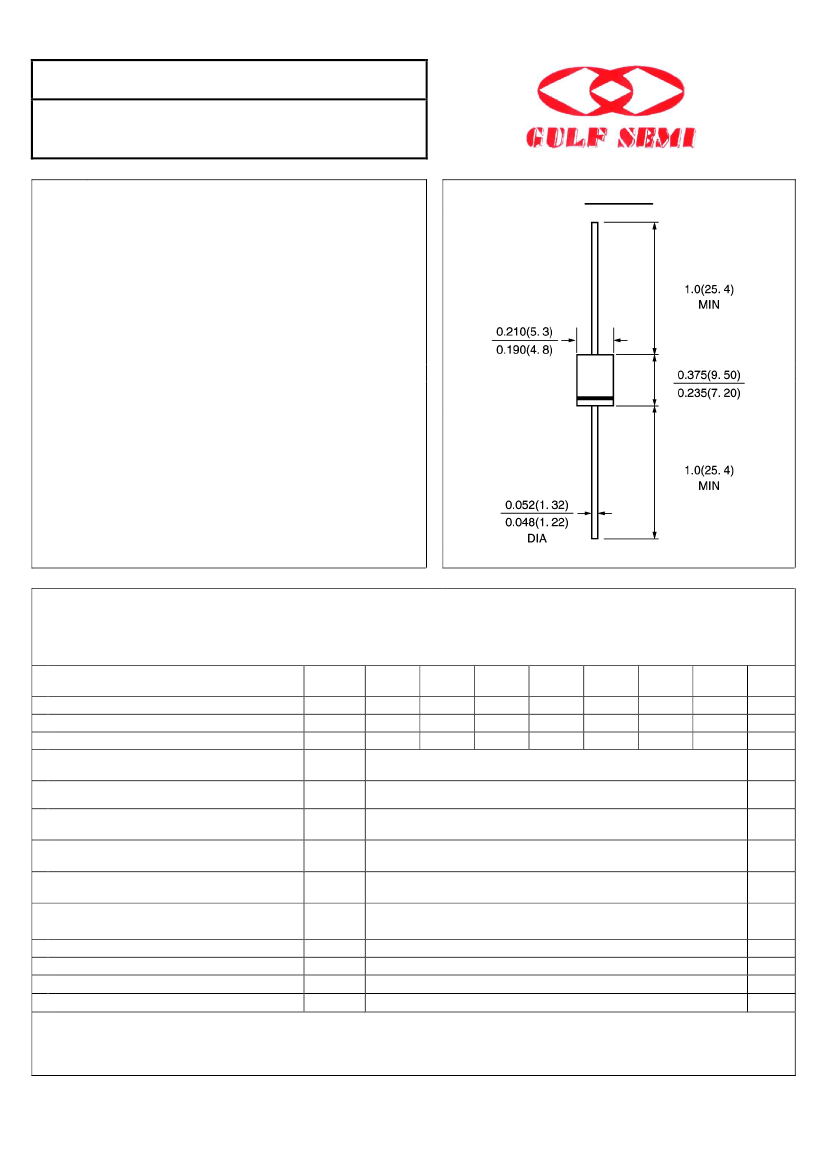

BYT56AGP THRU BYT56MGP

SINTERED GLASS JUNCTION

FAST SWITCHING PLASTIC RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT: 3.0A

FEATURE

High temperature metallurgically bonded construction

Sintered glass cavity free junction

Capability of meeting environmental standard of

MIL-S-19500

High temperature soldering guaranteed

350°C /10sec/0.375”lead length at 5 lbs tension

Operate at Ta

=55°C

with no thermal run away

Typical Ir<0.1µA

DO-201AD

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

BYT56

AGP

BYT56

BGP

100

BYT56

DGP

200

140

200

BYT56

GGP

400

280

400

3.0

125

1.4

BYT56

JGP

600

420

600

BYT56

KGP

800

560

800

BYT56

MGP

1000

700

1000

units

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta =55

°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at rated Forward

Current and 25

°C

Vrrm

Vrms

Vdc

If(av)

Ifsm

non-repetitive reverse avalanche energy

(BR)R

=0.4A)

Maximum full load reverse current full cycle

average at 55

°C

Ambient

Maximum DC Reverse Current

Ta =25

°C

at rated DC blocking voltage

Ta =150

°C

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance

(Note 3)

Storage and Operating Junction Temperature

Ir(av)

Trr

R(ja)

Tstg, Tj

100

5.0

100

-65 to +175

°C

Note: 1.Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2.Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3.Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

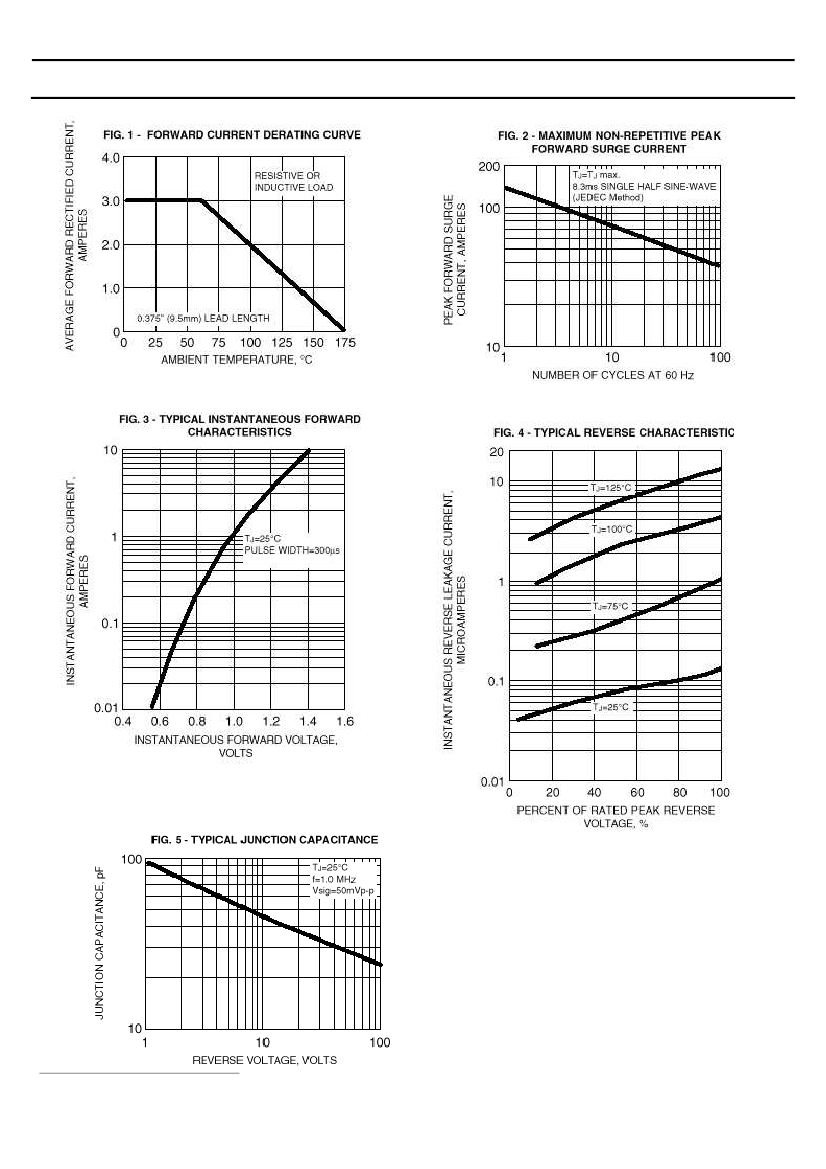

Rev.A1

www.gulfsemi.com
