SL1111M1D3: DescriptionSLIDE SWITCH, SPDT, LATCHED AND MOMENTARY, 5A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size276KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

SL1111M1D3 Overview

SLIDE SWITCH, SPDT, LATCHED AND MOMENTARY, 5A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

SL1111M1D3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OTTO
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Actuator type	RAISED BUTTON
body height	19.3 mm
Body length or diameter	11.33 mm
Contact (AC) maximum rated R load	5A@115VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	SL
Installation features	PANEL MOUNT-THREADED
Maximum operating force	9.45 N
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
seal	DUST PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	SPDT
Switch type	SLIDE SWITCH
Terminal surface	SILVER
Termination type	SOLDER

Preview

Download Datasheet

View All

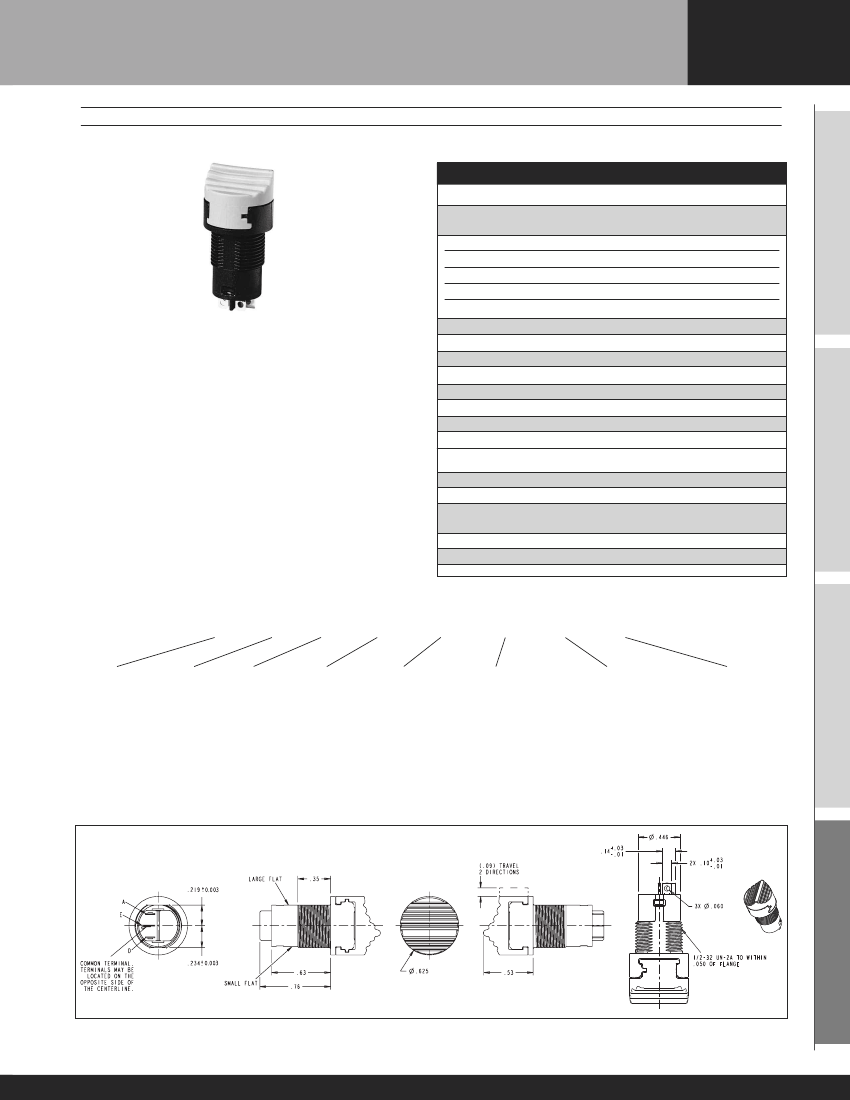

SLIDE SWITCH

COMMERCIAL & MILITARY GRADES

SLIDE

SWITCH

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

Lamp

DWV

Low Level

Electrical Life:

Sea Level @ 28VDC

or 115VAC, 60/400Hz

1050Vrms

10mA @ 30mV

100,000 cycles

Dusttight per MIL-PRF-8805 Design 2

24 oz +/- 10 oz

10 oz +8 oz/-3 oz to center from maintained position

0.120 inches max two directions

0.010 inches min

Features:

• Single & double pole, double throw

switch configuration

• Low level rating available with gold plate

contacts & terminals

• 3-position center OFF with momentary or

maintained switch action in any combination

• Dusttight to MIL-PRF-8805 Design 2

• Raised & flush button contours available

• Choice of button color

• FAA/PMA available (contact factory)

• RoHS & WEEE compliant

Mechanical Life:

Seal:

Operating Force:

Return Force:

Total Travel:

Overtravel:

Operating Temp Range:

-55°C to +85°C

MATERIALS:

Case:

Button:

Terminals:

Terminal Hardware:

Mounting Hardware:

Thermoplastic

Beryllium copper with silver plate, gold flash over

silver plate for low level

None provided

Hex nut and lockwasher

SL PART NUMBER CODE

–

Number of Poles

Single

Double

Button Style

Raised

Flush

Case Style

Front Mount

1/2-32 Thread

Front Mount

1/2-32 Thread

With 0.062” Spacer

Seal

Dusttight

MIL-PRF-8805

Design 2

Grade

Commercial

M.Military

Current Rating

Std.

Low Level

Switch Action/Circuit

Large Flat

Position

(ON)

Center Small Flat

Position Position

OFF

(ON)

OFF

(ON)

OFF

Button Color

Red

Black

Orange

Yellow

Green

Blue

Purple

Gray

White

NOTE: ( ) denotes momentary action.

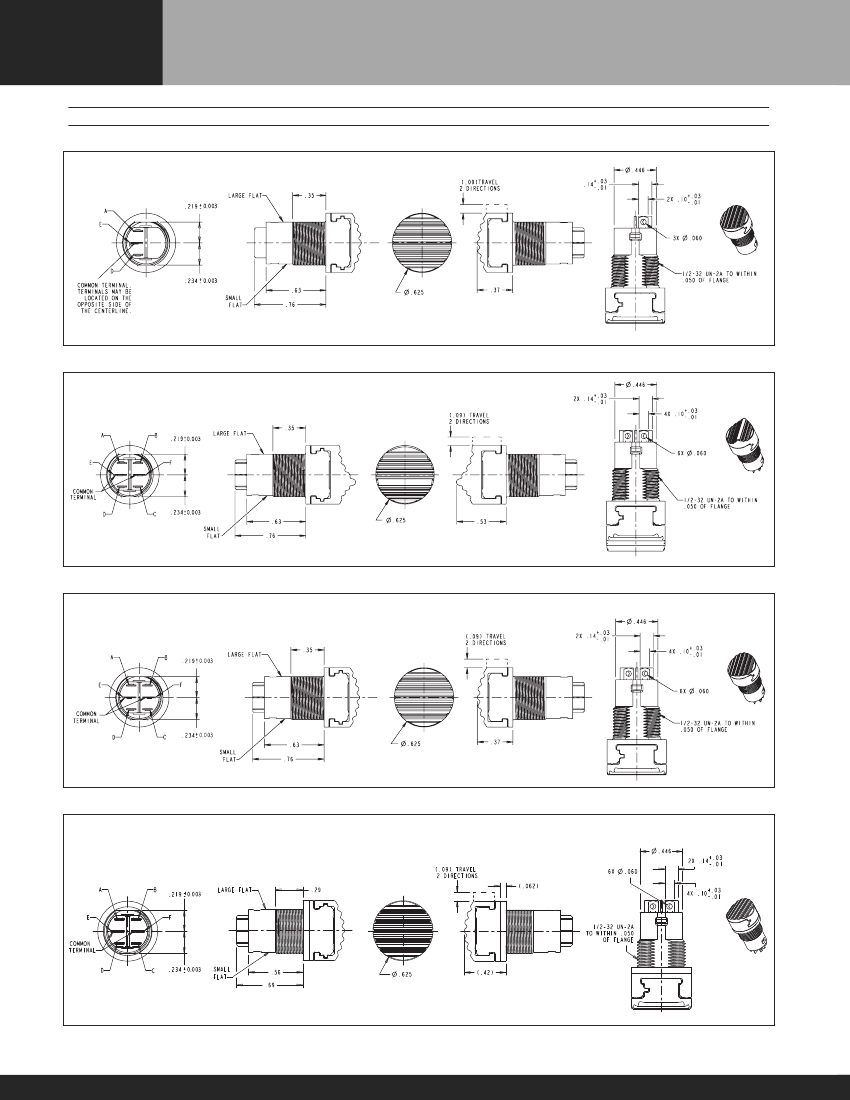

SL Slide Switch

3-Position, Center OFF

SL-1111 Series

SLIDE SWITCH

Specifications Subject To Change Without Notice

www.ottoexcellence.com

117
