75714-002: DescriptionConnector Accessory, Contact, Brass,; CategoryThe connector Connector bracket; File Size215KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

75714-002 Overview

Connector Accessory, Contact, Brass,

75714-002 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	CONTACT FINISH: TIN
Assembly name	CONTACT
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	LOOSE
Contact point gender	FEMALE
Contact style	COMPRESSION
DIN compliance	NO
Finished thickness	50
IEC compliance	NO
MIL compliance	NO
Material	BRASS
Installation method	STRAIGHT
Terminal length	0.28 inch
Terminal type	CRIMP
Maximum wire diameter	14 AWG
Minimum wire diameter	16 AWG

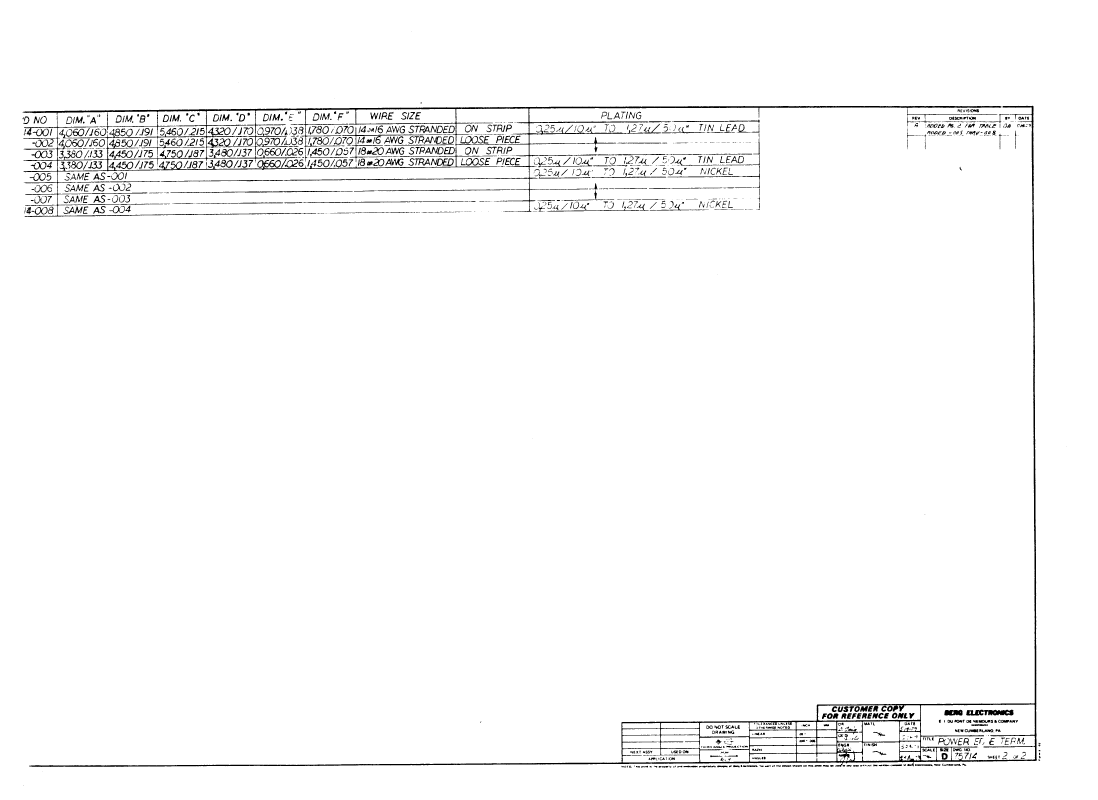

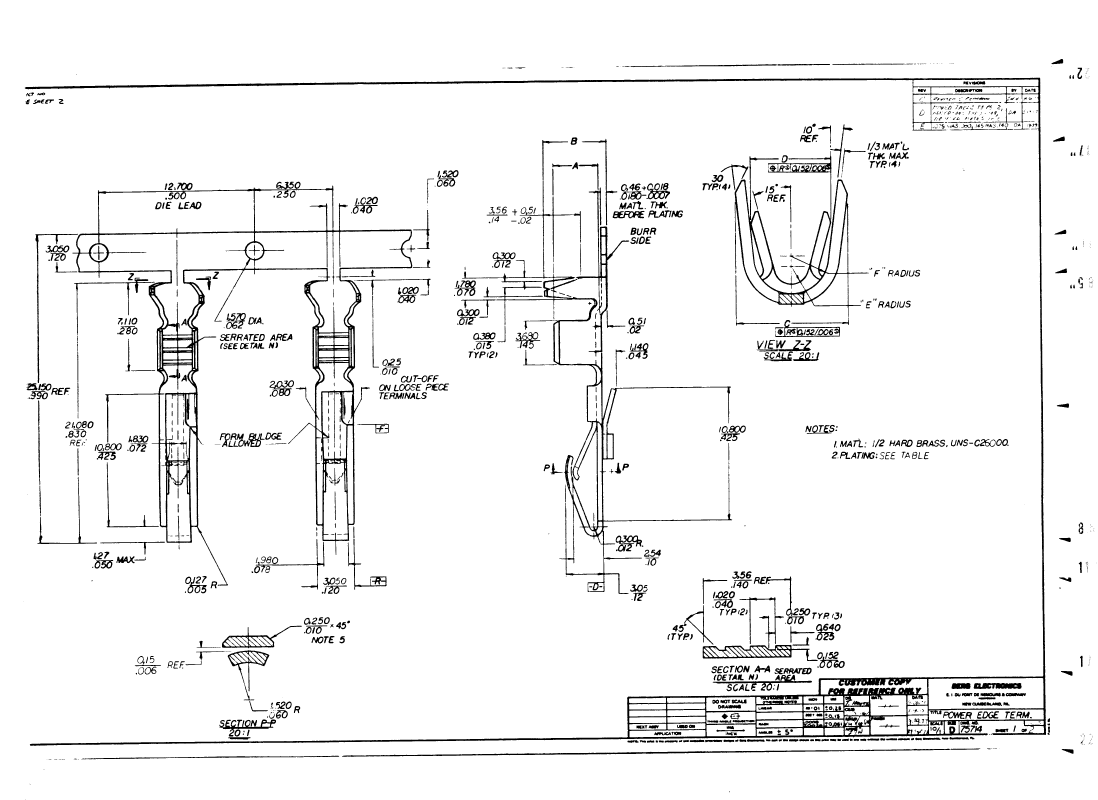

Preview

Download Datasheet

View All

75714-002 Related Products

	75714-002	75714-008	75714-005	75714-004	75714-007	75714-001	75714-006	75714-003
Description	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,	Connector Accessory, Contact, Brass,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	CONTACT FINISH: TIN	CONTACT FINISH: NICKEL	CONTACT FINISH: NICKEL	CONTACT FINISH: TIN	CONTACT FINISH: NICKEL	CONTACT FINISH: TIN	CONTACT FINISH: NICKEL	CONTACT FINISH: TIN
Assembly name	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT	CONTACT
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION	COMPRESSION
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Finished thickness	50	50	50	50	50	50	50	50
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Terminal length	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch
Terminal type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Maximum wire diameter	14 AWG	18 AWG	14 AWG	18 AWG	18 AWG	14 AWG	14 AWG	18 AWG
Minimum wire diameter	16 AWG	20 AWG	16 AWG	20 AWG	20 AWG	16 AWG	16 AWG	20 AWG
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol	Amphenol
Base Number Matches	-	1	1	1	1	1	1	-
