Datasheet> All Categories > Wireless rf/communication> Telecom circuit> IDT77101L25TF9

Preview

IDT77101L25TF9: DescriptionATM Network Interface, 1-Func, CMOS, PQFP64, 10 X 10 MM, STQFP-64; CategoryWireless rf/communication Telecom circuit; File Size808KB，24 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

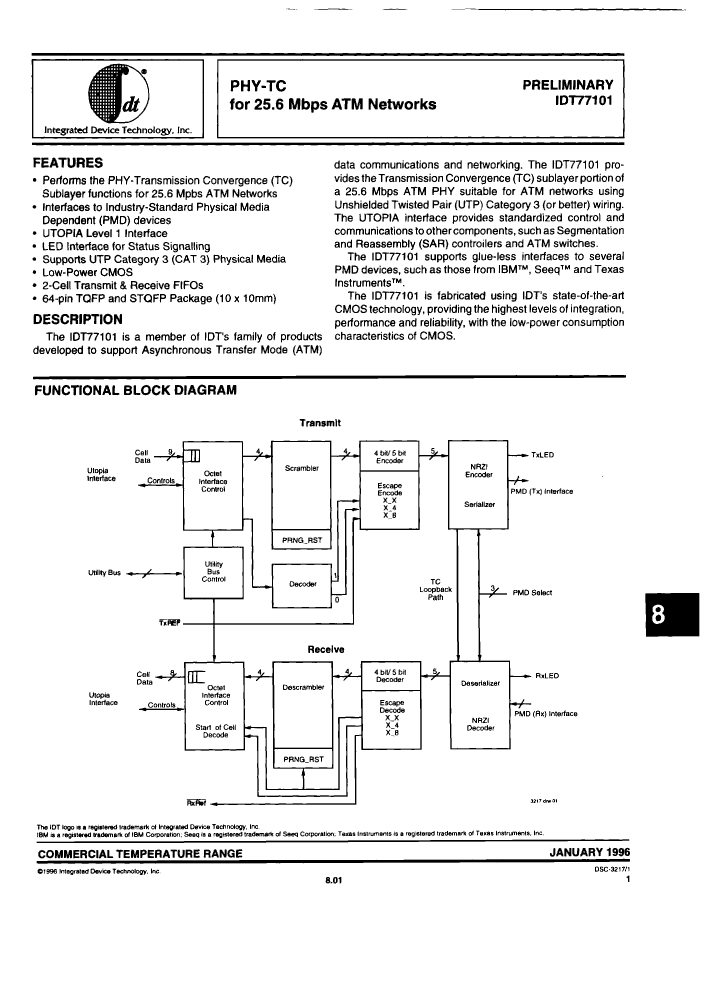

IDT77101L25TF9 Overview

ATM Network Interface, 1-Func, CMOS, PQFP64, 10 X 10 MM, STQFP-64

IDT77101L25TF9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	LFQFP,

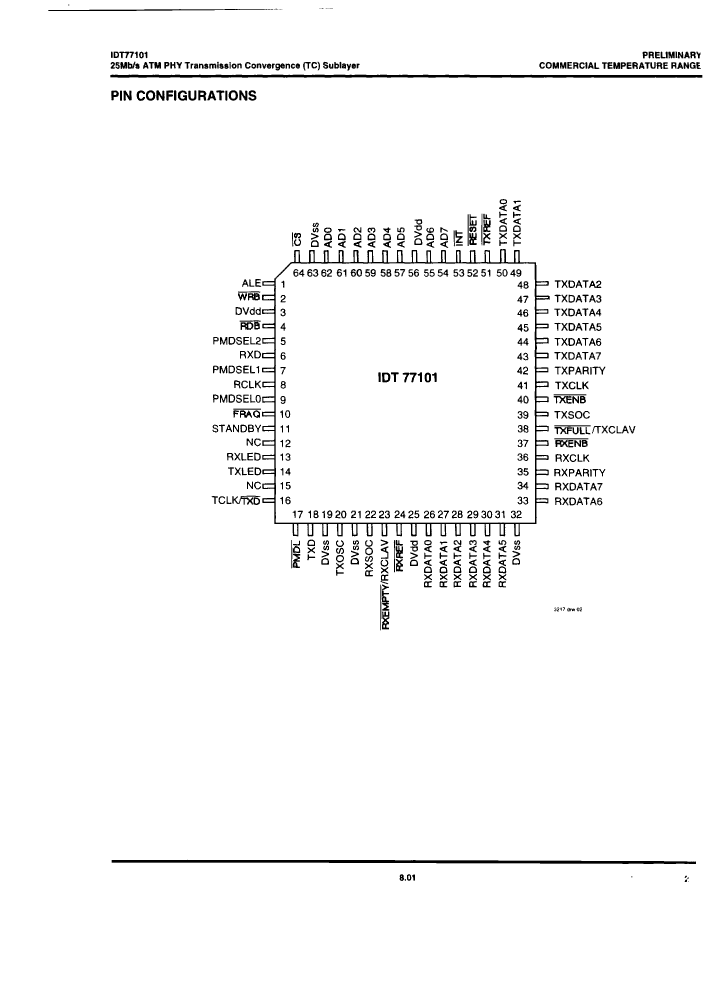

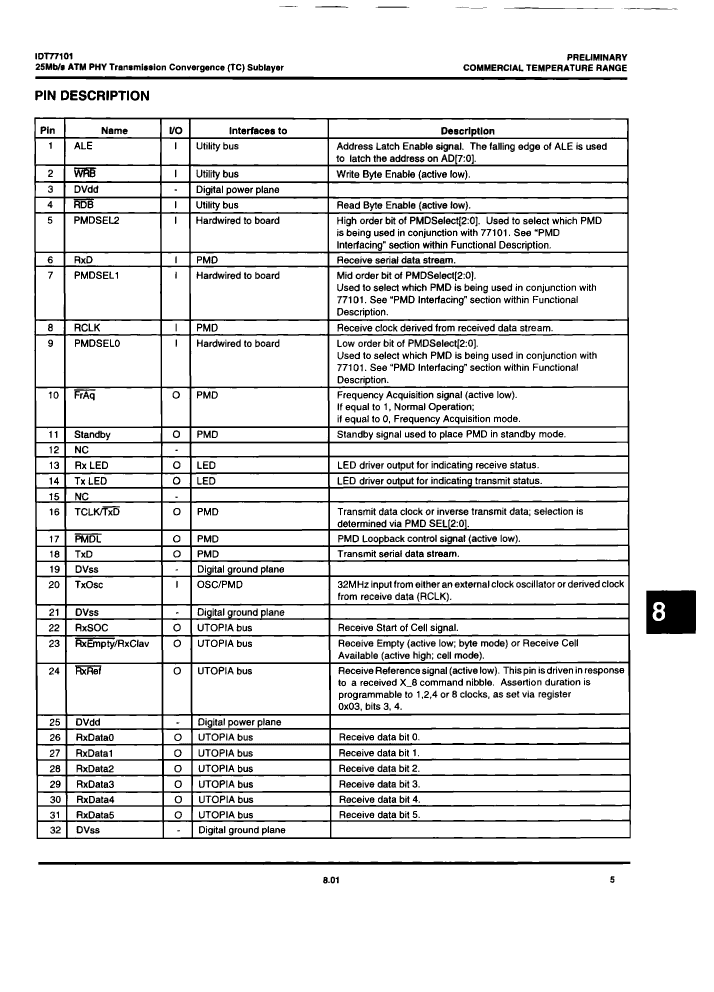

Contacts	64
Reach Compliance Code	compliant
JESD-30 code	S-PQFP-G64
JESD-609 code	e0

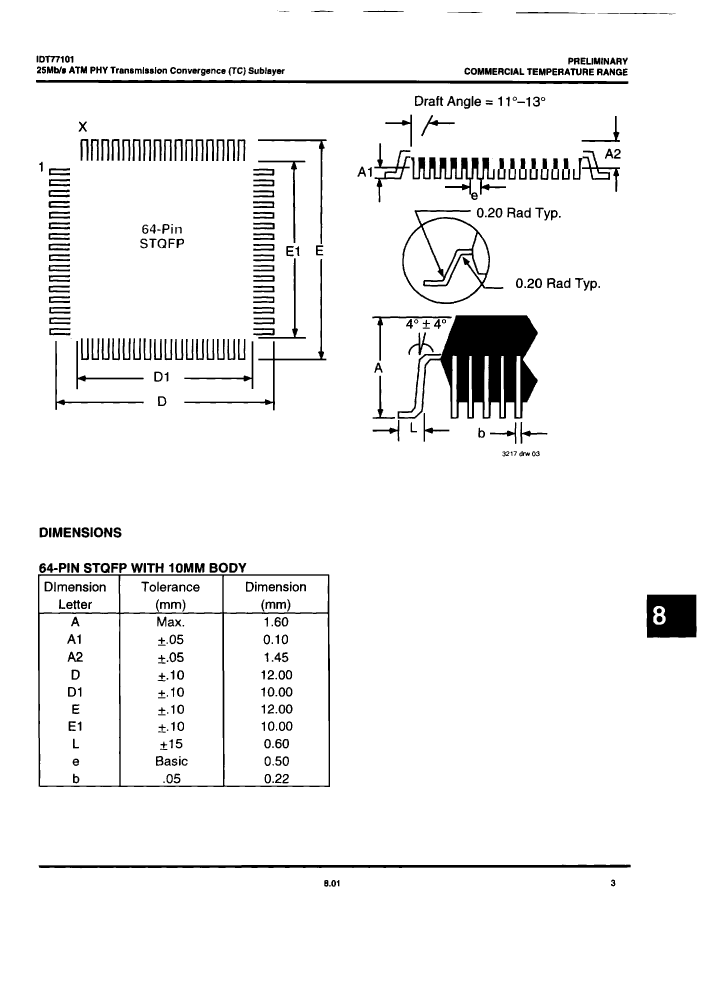

length	10 mm
Humidity sensitivity level	3
Number of functions	1
Number of terminals	64

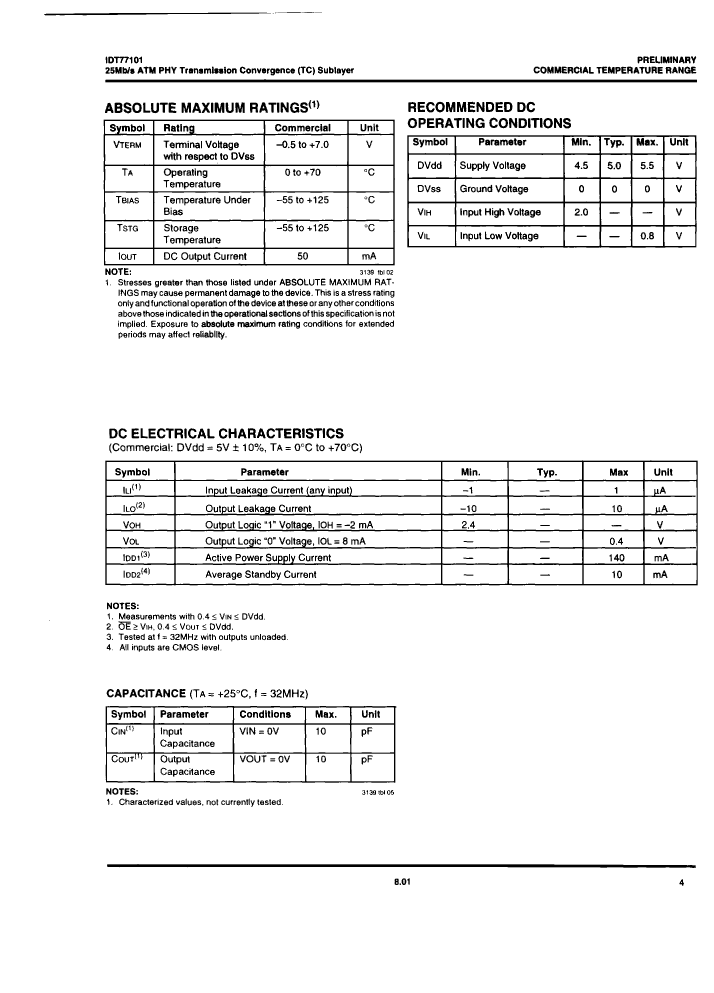

Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.6 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	ATM/SONET/SDH NETWORK INTERFACE
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
width	10 mm

Preview

Download Datasheet

View All

IDT77101L25TF9 Related Products

	IDT77101L25TF9	IDT77101L25STQFP	IDT77101L25TF	IDT77101L25TF8
Description	ATM Network Interface, 1-Func, CMOS, PQFP64, 10 X 10 MM, STQFP-64	ATM Network Interface, 1-Func, CMOS, PQFP64, 10 X 10 MM, STQFP-64	ATM Network Interface, 1-Func, CMOS, PQFP64, 10 X 10 MM, STQFP-64	ATM Network Interface, 1-Func, CMOS, PQFP64, 10 X 10 MM, STQFP-64
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	QFP	QFP	QFP	QFP
package instruction	LFQFP,	LFQFP,	LFQFP, QFP64,.47SQ,20	LFQFP,
Contacts	64	64	64	64
Reach Compliance Code	compliant	compliant	not_compliant	compliant
JESD-30 code	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0	e0	e0
length	10 mm	10 mm	10 mm	10 mm
Number of functions	1	1	1	1
Number of terminals	64	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	225	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	ATM/SONET/SDH NETWORK INTERFACE	ATM/SONET/SDH NETWORK INTERFACE	ATM/SONET/SDH NETWORK INTERFACE	ATM/SONET/SDH NETWORK INTERFACE
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn85Pb15)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	20	NOT SPECIFIED	30	20
width	10 mm	10 mm	10 mm	10 mm
Humidity sensitivity level	3	-	3	3
