MA-406HFREQF03S-G0 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> MA-406HFREQF03S-G0

MA-406HFREQF03S-G0: DescriptionQUARTZ CRYSTAL RESONATOR, 9.6 MHz - 27 MHz; CategoryPassive components Crystal/resonator; File Size201KB，2 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric View All

MA-406HFREQF03S-G0 Overview

QUARTZ CRYSTAL RESONATOR, 9.6 MHz - 27 MHz

MA-406HFREQF03S-G0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Seiko Epson Corporation
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency tolerance	10 ppm
load capacitance	20 pF
Manufacturer's serial number	MA-406H
Installation features	SURFACE MOUNT
Maximum operating frequency	27 MHz
Minimum operating frequency	9.6 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
physical size	L11.7XB4XH3.5 (mm)
surface mount	YES

Preview

Download Datasheet

View All

Crystal unit

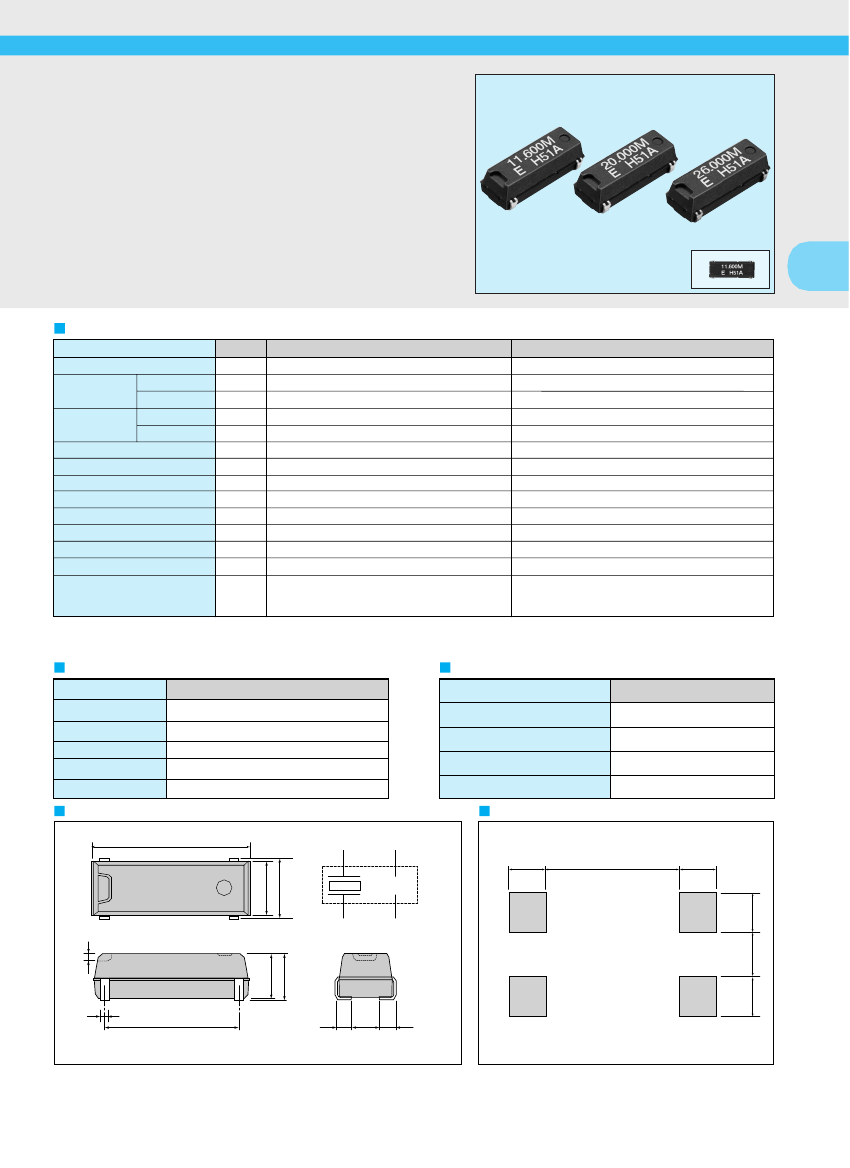

SMD HIGH-STABILITY CRYSTAL UNIT

MA-406H

• High-density mounting-type SMD.

• Excellent heat-resistance and environment capability.

• 9.6 MHz to 27.0 MHz available.

Actual size

Specifications (characteristics)

Item

Symbol

STG

OPR

SOL

∆

f/f

S. R.

Specifications

9.600 MHz to 27.000 MHz

-55 °C to +125 °C

-40 °C to +85 °C

2 mW Max.

10 µW to 100 µW

Only crystal oscillation is guaranteed

Remarks

Fundamental mode

Stored as bare product after unpacking

Nominal frequency range

Storage temperature

Temperature

range

Operable temperature

Drive level

Maximum drive level

Recommended drive level

Soldering condition (reflow)

Frequency tolerance (standard)

Frequency temperature characteristics

Load capacitance

Series resistance

Shunt capacitance

Insulation resistance

Aging

Shock resistance

+240

°C Max.

within 10 s and under +200

°C

within 40 s

±10 x 10

-6

As per below table

10 pF to

∞

As per below table

3.0 pF Max.

500 MΩ Min.

±1 x 10

-6

/year Max.

±1 x 10

-6

Max.

Ta=+25 °

±1 °

, DL=100

µW

Please specify

Operable temperature range, DL=100

µW

Ta=+25 °

±3 °

,DL=100

µW

Three drops on a hard wooden board from 750 mm or

excitation test with 29400 m/s

x 0.3 ms x 1/2 sine

wave x 3 directions

Measured values for frequency tolerance and temperature characteristics need to be brought into mutual correlation prior to the start of production.

Metal may be exposed on the top of this product. This won't affect any quality, reliability or electrical spec.

Frequency temperature characteristics

Temperature range

0 °C to +50 °C

-10 °C to +60 °C

-20 °C to +70 °C

-30 °C to +80 °C

-40 °C to +85 °C

Series resistance

Frequency (MHz)

9.6

≤

f < 10.0

10.0

≤

f < 12.0

12.0

≤

f < 16.0

16.0

≤

27.0

(Unit: mm)

Frequency tolerance

± 3 x 10

-6

Min.

± 5 x 10 Min.

-6

Series resistance (Ω)

Ω

Max.

Ω

Max.

Ω

Max.

Ω

Max.

(Unit: mm)

± 7 x 10

-6

Min.

±10 x 10

-6

Min.

±15 x 10

-6

Min.

External dimensions

11.7 Max.

Recommended soldering pattern

Internal connection

4.8 Max.

1.8

7.8

1.8

0.5

3.7 Max.

3.5

0.7

9.6

(1.2)

2.1

(1.2)

Do not connect #2 and #3 external device.

1.9

1.7

1.9

20.000M

E H51A

4.0
