UF4003: DescriptionRECTIFIER DIODE, DO-41; CategoryDiscrete semiconductor diode; File Size122KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric Compare View All

UF4003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UF4003	-	-	View	Buy Now

UF4003 Overview

RECTIFIER DIODE, DO-41

UF4003 Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

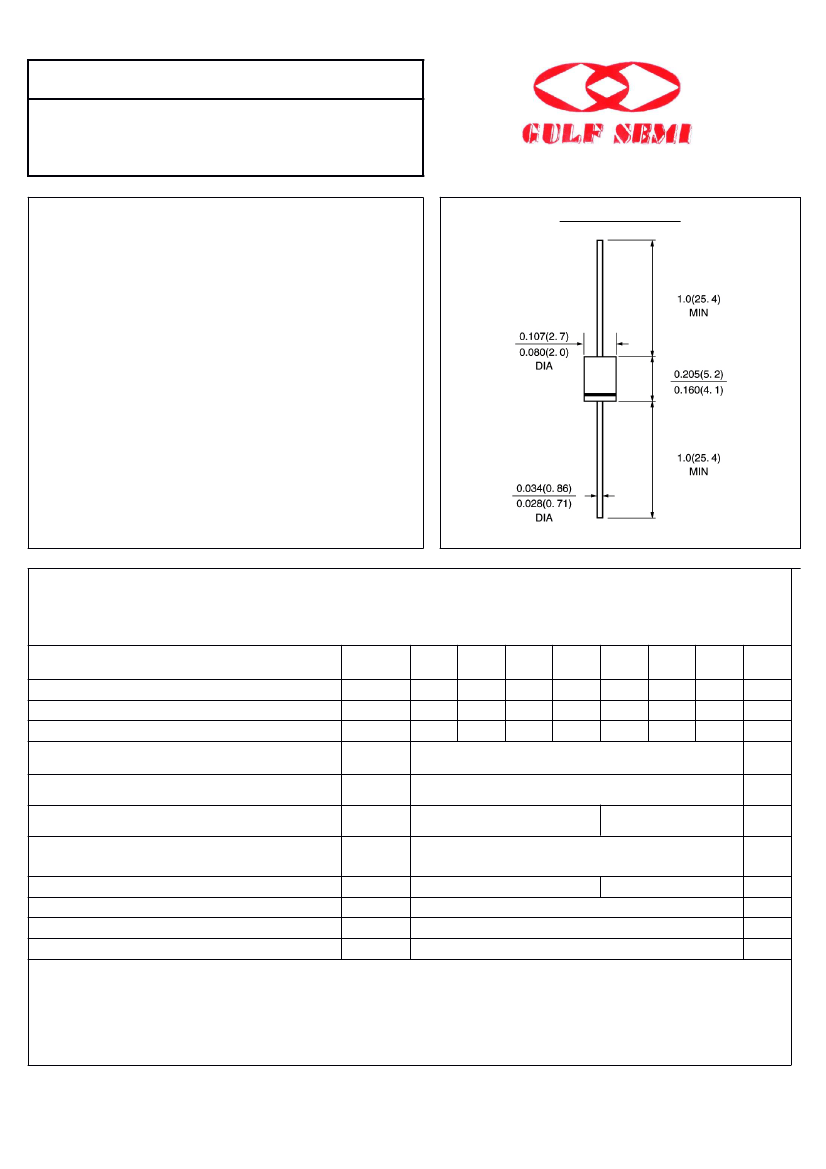

UF4001 THRU UF4007

ULTRAFAST EFFICIENT

PLASTIC SILICON RECTIFIER

VOLTAGE：50 TO 1000V

：

CURRENT： 1.0A

：

FEATURE

Low power loss

High surge capability

Glass passivated chip junction

Ultra-fast recovery time for high efficiency

High temperature soldering guaranteed

250℃/10sec/0.375″lead length at 5 lbs tension

DO –41\DO-204AL

-

MECHANICAL DATA

Terminal：Plated axial leads solderable per

MIL-STD 202E, method 208C

Case：Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity：color band denotes cathode

Mounting position：any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25℃, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8″lead length at Ta =55℃

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at Forward current

1A Peak

Maximum DC Reverse Current

Ta =25℃

at rated DC blocking voltage

Ta =125℃

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance

(Note 3)

Storage and Operating Junction Temperature

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Trr

Cj

R(ja)

Tstg,Tj

UF

4001

50

35

50

UF

4002

100

70

100

UF

4003

200

140

200

UF

4004

400

280

400

1.0

30.0

UF

4005

600

420

600

UF

4006

800

560

800

UF

4007

1000

700

1000

units

V

A

1.0

10.0

100.0

50

17.0

60.0

-55 to +150

1.7

V

μA

75

nS

pF

℃/W

℃

Note：

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 3/8″lead length, P.C. Board Mounted

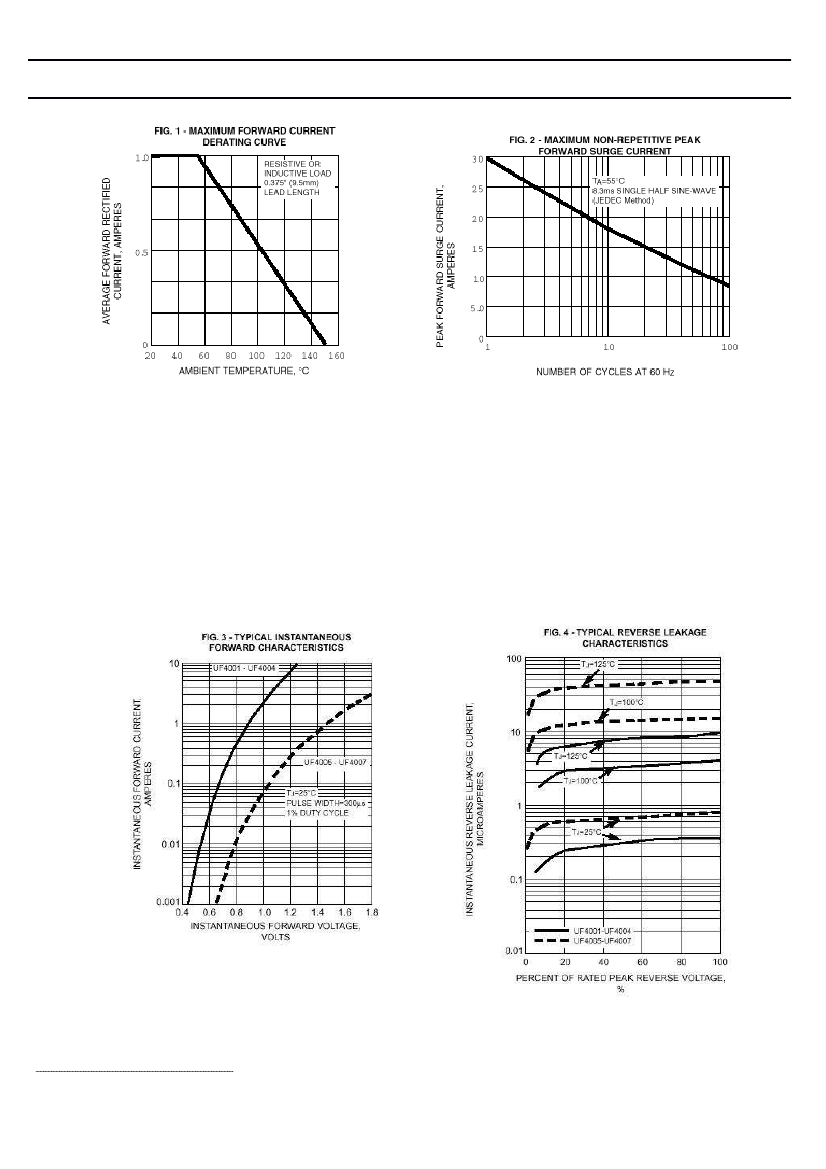

Rev.4

www.gulfsemi.com

UF4003 Related Products

	UF4003	UF4001	UF4004	UF4007
Description	RECTIFIER DIODE, DO-41	1 A, 50 V, SILICON, SIGNAL DIODE, DO-204AL	SIGNAL DIODE	1 A, 1000 V, SILICON, SIGNAL DIODE, DO-41
Maker	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	DO-41, 2 PIN
Reach Compliance Code	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-204AL	DO-204AL	DO-204AL	DO-204AL
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	200 V	50 V	400 V	1000 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.075 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Maximum forward voltage (VF)	1 V	1 V	-	1.7 V
