LG3341-N Overview

T-1 SINGLE COLOR LED, GREEN, 3 mm

LG3341-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Osram Opto Semiconductor
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
Maximum forward current	0.04 A
JESD-609 code	e3
Lens type	CLEAR NONDIFFUSED
Nominal luminous intensity	36.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.85 mm
method of packing	BULK
peak wavelength	572 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin (Sn)
Terminal pitch	2.54 mm
perspective	40 deg

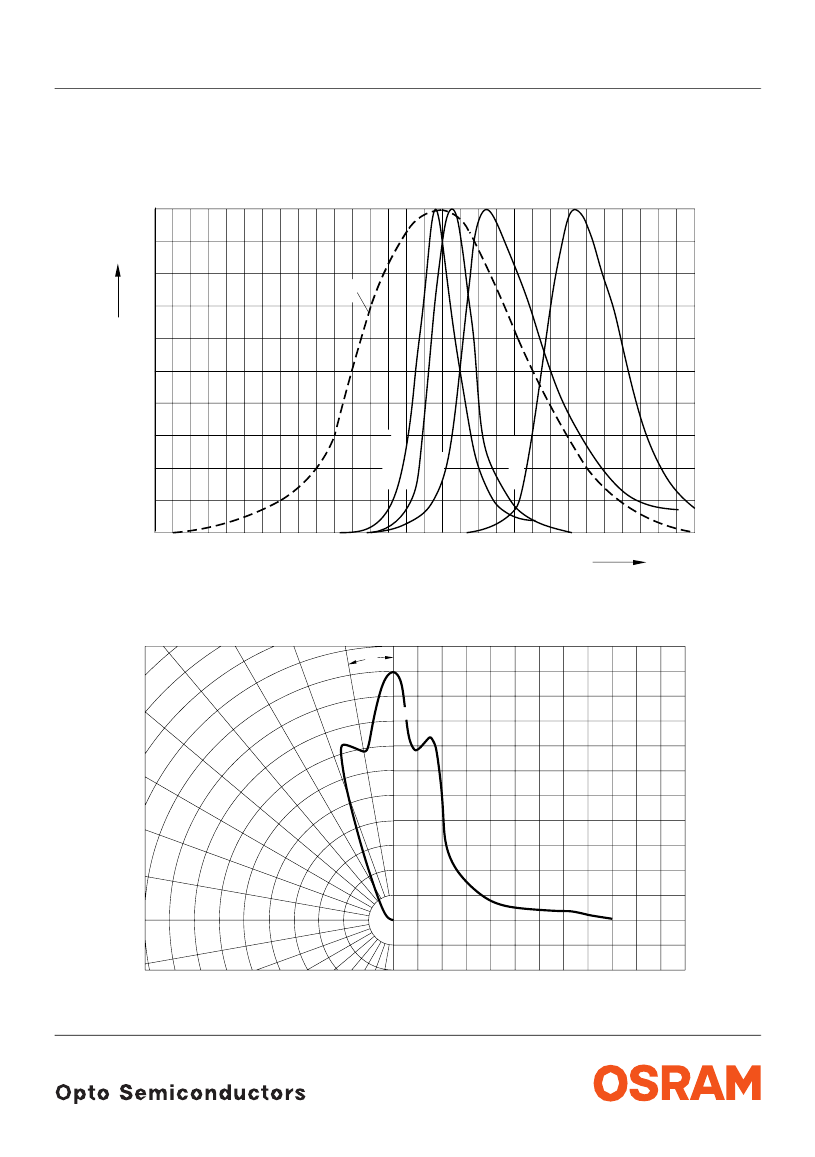

Preview

Download Datasheet

View All

3 mm (T1) LED, Non Diffused

Super-Bright LED

LS 3341, LY 3341, LG 3341, LP 3341

Besondere Merkmale

•

Gehäusetyp:

eingefärbtes, klares 3 mm (T1)

Gehäuse

•

Besonderheit des Bauteils:

Lötspieße mit

Aufsetzebene

•

Wellenlänge:

628 nm (super-rot),

587 nm (gelb), 570 nm (grün),

560 nm (pure green)

•

Abstrahlwinkel:

40°

•

Technologie:

GaAlP (super-rot, gelb, grün),

GaP (pure green)

•

optischer Wirkungsgrad:

1,5 lm/W (super-rot, gelb), 2,5 lm/W (grün),

0,6 lm/W (pure green)

•

Gruppierungsparameter:

Lichtstärke

•

Lötmethode:

Wellenlöten (TTW)

•

Verpackung:

Schüttgut, gegurtet lieferbar

Anwendungen

• optischer Indikator

• Einkopplung in Lichtleiter

• Hinterleuchtung (LCD, Schalter, Tasten,

Displays)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u.ä.)

Features

•

package:

colored, clear 3 mm (T1) package

•

feature of the device:

solder leads with

stand-off

•

wavelength:

628 nm (super-red),

587 nm (yellow), 570 nm (green),

560 nm (pure green)

•

viewing angle:

40°

•

technology:

GaAlP (super-red, yellow, green),

GaP (pure green)

•

optical efficiency:

1.5 lm/W (super-red,

yellow), 2.5 lm/W (green),

0.6 lm/W (pure green)

•

grouping parameter:

luminous intensity

•

soldering methods:

TTW soldering

•

packing:

bulk, available taped on reel

Applications

•

optical indicators

coupling into light guides

backlighting (LCD, switches, keys, displays)

interior automotive lighting (e.g. dashboard

backlighting, etc.)

2002-03-29

LG3341-N Related Products

	LG3341-N	LG3341-P	LP3341-KN	LP3341-M	LG3341-KN	LP3341-JM	LP3341-L
Description	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, PURE GREEN, 3 mm	T-1 SINGLE COLOR LED, PURE GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, PURE GREEN, 3 mm	Single Color LED, Pure Green, Clear Nondiffused Green, T-1, 3mm
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
color	GREEN	GREEN	PURE GREEN	PURE GREEN	GREEN	PURE GREEN	PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.03 A	0.03 A	0.04 A	0.03 A	0.03 A
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Lens type	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED GREEN	CLEAR NONDIFFUSED GREEN	CLEAR NONDIFFUSED	CLEAR NONDIFFUSED GREEN	CLEAR NONDIFFUSED GREEN
Nominal luminous intensity	36.5 mcd	58.0 mcd	26.05 mcd	23.0 mcd	26.05 mcd	16.25 mcd	14.6 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	572 nm	572 nm	557 nm	557 nm	572 nm	557 nm	557 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	40 deg	40 deg	40 deg	40 deg	40 deg	40 deg	40 deg
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
