PSC-6-1-75

Description
Combiner, 1MHz Min, 300MHz Max, 1.3dB Insertion Loss-Max, CASE C07, 16 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size77KB,2 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

PSC-6-1-75 Overview

Combiner, 1MHz Min, 300MHz Max, 1.3dB Insertion Loss-Max, CASE C07, 16 PIN

PSC-6-1-75 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresISOLATION-MIN (DB):18
Characteristic impedance75 Ω
structureCOMPONENT
Maximum input power (CW)30 dBm
Maximum insertion loss1.3 dB
JESD-609 codee0
Maximum operating frequency300 MHz
Minimum operating frequency1 MHz
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesCOMBINER
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio1.44

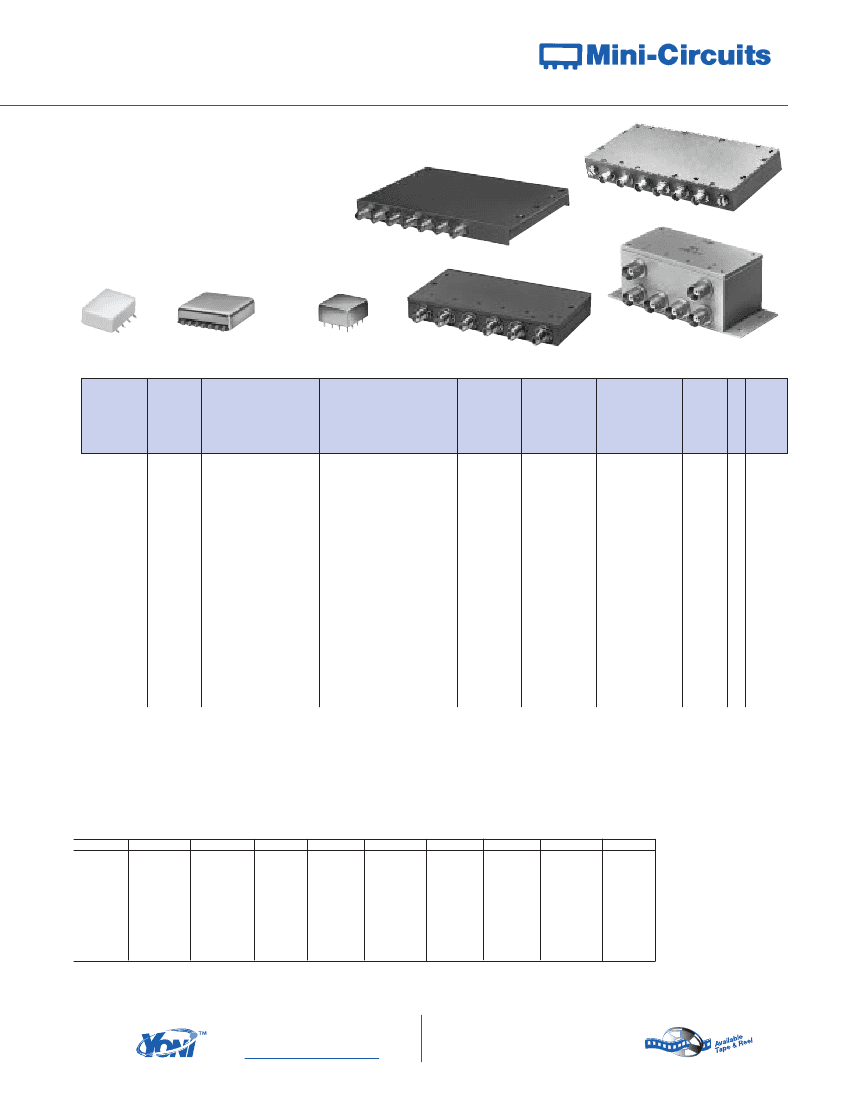

P
OWER
S
PLITTERS
/C
OMBINERS
5 W
AY
-0°
1 MHz to 750 MHz
50&75Ω
SURFACE MOUNT
PSC-5
SCP-5
AD5PS
ZBSC-5
ZFSC-5
MODEL
NO.
u
AD5PS-1
PSC-5-1
PSC-5-2
n
PSC-5-1-75
SCP-5-1
ZBSC-5-1
ZFSC-5-1
FREQ.
RANGE
MHz
f
L
-f
U
1-400
1-300
250-750
1-300
2-200
120-520
1-300
ISOLATION
dB
L
M
J
Typ. Min. Typ. Min.
35
25
35
30
18
20
20
20
25
23
22
30
29
25
23
20
18
17
18
20
18
18
U
Typ. Min.
27
20
25
30
20
17
17
20
INSERTION LOSS, dB
Above 7.0dB
L
M
J
Typ. Max. Typ. Max.
0.15 0.5
0.2
0.4
0.2
0.5
0.6
0.5
0.3
0.6
1.1
0.6
0.3
1.0
0.6
1.0
1.0
2.5
0.9
0.75
2.0
1.0
U
Typ. Max.
0.8
1.5
0.9
0.6
1.8
2.0
1.3
1.5
PHASE
UNBALANCE
Degrees
L
M
J
U
Max. Max. Max.
1
2
2
1
6
4
14
4
3
8
4
9
8
8
5
AMPLITUDE
UNBALANCE
dB
L
M
J
U
Max. Max. Max.
0.3
0.2
0.2
0.2
0.4
0.3
0.7
0.3
0.3
0.9
0.3
0.6
0.6
0.6
0.6
CASE
STYLE
Note B
CJ725
C07
C07
C07
YY161
UU102
G15
C
O
N
N
E
C
T
I
O
N
PRICE
$
Qty.
(1-9)
19.95***
64.45
67.95
64.45
26.95
mb
bj
gq
bj
md
25
20
20
17
0.2
0.5
1.5
2.0
2
8
0.2
0.6
bm 119.95
bm 99.95
L = low range [f
L
to 10 f
L
]
M = mid range [10 f
L
to f
U
/2]
U = upper range [f
U
/2 to f
U
]
NOTES:
u
o
n
Aqueous washable.
Non-hermetic
Denotes 75 Ohm model, for coax connector models 75 Ohm BNC
connectors are standard.
J
When only specification for M range given, specification applies
to entire frequency range.
*** Price for quantities 10-49.
A. General Quality Control Procedures, Environmental Specifica-
tions, Hi-Rel and MIL description are given in section 0, see “Mini-
Circuits Guarantees Quality” article.
B. Connector types and case mounted options, case finishes are
given in section 0, see “Case styles & Outline Drawings”.
C. Prices and specifications subject to change without notice.
1. Absolute maximum power, voltage and current ratings:
1a. Matched power rating:
Models ZB6PD, ZC6PD .................................. 10 Watt
Model PSC-5-2 .............................................. 2 Watt
Models AD5PS-1, AD6PS-1 ........................... 0.5 Watt
Model JCPS-6-3 ............................................. 0.25 Watt
All other models ............................................ 1 Watt
1b. Internal load dissipation:
Models ZB6PD, ZC6PD ................................. 0.875 Watt
Model ZB6PD-1700 ........................................ 0.750 Watt
Models PSC-5-2, SCP-5-1, ZBSC-5-1 ............. 0.625 Watt
Model AD5PS-1 ............................................. 0.40 Watt
All other models ............................................ 0.5 Watt
NSN GUIDE
MCL NO.
PSC-5-1
ZFSC-6-1(BNC)
ZFSC-6-1(SMA)
PSC-6-1
ZBSC-615
NSN
6625-01-255-3143
6625-01-225-6965
6625-01-263-9871
6625-01-249-8012
6625-01-391-5026
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Distribution Centers
NORTH AMERICA 800-654-7949 • 417 335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
114
ISO 9001
CERTIFIED
011001

PSC-6-1-75 Related Products

PSC-6-1-75 ZBSC-5-1 ZFSC-5-1 PSC-5-1 PSC-5-1-75 PSC-6-1 ZC6PD-1900W ZC6PD-960W
Description Combiner, 1MHz Min, 300MHz Max, 1.3dB Insertion Loss-Max, CASE C07, 16 PIN Combiner, 120MHz Min, 520MHz Max, 2dB Insertion Loss-Max, CASE UU102 Combiner, 1MHz Min, 300MHz Max, 2dB Insertion Loss-Max, CASE G1170 Combiner, 1MHz Min, 300MHz Max, 2dB Insertion Loss-Max, CASE C07, 16 PIN Combiner, 1MHz Min, 300MHz Max, 1.3dB Insertion Loss-Max, CASE C07, 16 PIN Combiner, 1MHz Min, 175MHz Max, 1.3dB Insertion Loss-Max, CASE C07, 16 PIN Combiner, 1500MHz Min, 2000MHz Max, 1dB Insertion Loss-Max, CASE AB185 Combiner, 700MHz Min, 1000MHz Max, 1dB Insertion Loss-Max, CASE AB185
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits Mini-Circuits
Reach Compliance Code unknown unknown not_compliant unknown unknown unknown unknown unknow
Other features ISOLATION-MIN (DB):18 ISOLATION-MIN (DB):18 BNC, ISOLATION-MIN (DB):17 ISOLATION-MIN (DB):17 ISOLATION-MIN (DB):17 ISOLATION-MIN (DB):18 ISOLATION-MIN (DB):15 ISOLATION-MIN (DB):15
Characteristic impedance 75 Ω 50 Ω 50 Ω 50 Ω 75 Ω 50 Ω 50 Ω 50 Ω
structure COMPONENT COAXIAL COAXIAL COMPONENT COMPONENT COMPONENT COAXIAL COAXIAL
Maximum input power (CW) 30 dBm 30 dBm 30 dBm 30 dBm 30 dBm 30 dBm 40 dBm 40 dBm
Maximum insertion loss 1.3 dB 2 dB 2 dB 2 dB 1.3 dB 1.3 dB 1 dB 1 dB
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0
Maximum operating frequency 300 MHz 520 MHz 300 MHz 300 MHz 300 MHz 175 MHz 2000 MHz 1000 MHz
Minimum operating frequency 1 MHz 120 MHz 1 MHz 1 MHz 1 MHz 1 MHz 1500 MHz 700 MHz
Maximum operating temperature 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
RF/Microwave Device Types COMBINER COMBINER COMBINER COMBINER COMBINER COMBINER COMBINER COMBINER
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio 1.44 1.57 1.31 1.7 1.23 1.3 1.5 1.5
