DBMY-5W5S-A197 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DBMY-5W5S-A197

Preview

DBMY-5W5S-A197: Description5 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

DBMY-5W5S-A197 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DBMY-5W5S-A197	-	-	View	Buy Now

DBMY-5W5S-A197 Overview

5 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER

DBMY-5W5S-A197 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Factory Lead Time	17 weeks
Other features	EMI/RFI SHIELDED
body width	0.494 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Cable type	RG-179
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0C5
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	55 mΩ
Contact style	COAX
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	FLOAT BUSHING
Installation type	PANEL
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG

Preview

Download Datasheet

View All

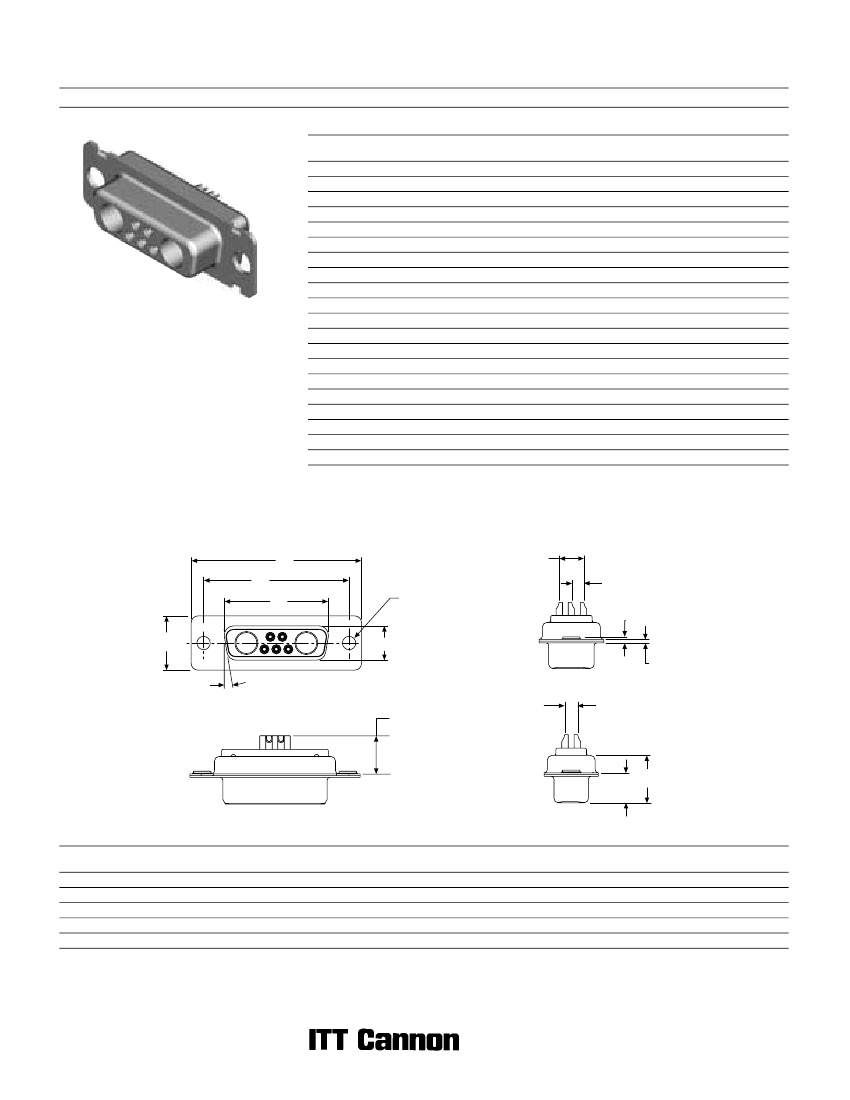

D Subminiature

Solder Cup (Sizes DE-DD)

Receptacle

Part Numbers

Shell Size

DE

DA

DB

DC

DD

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

24W7

36W4

43W2

47W1

Through Hole

DEM5W1SA197

DAM7W2SA197

DAM11W1SA197

DAM3W3SA197

DAM3WK3SA197

DBM5W5SA197

DBM9W4SA197

DBM13W3SA197

DBM17W2SA197

DBM21W1SA197

DCM8W8SA197

DCM13W6SA197

DCM17W5SA197

DCM21WA4SA197

DCM25W3SA197

DCM27W2SA197

DDM24W7SA197

DDM36W4SA197

DDM43W2SA197

DDM47W1SA197

Dual

Float Mount

DEMY5W1SA197

DAMY7W2SA197

DAMY11W1SA197

DAMY3W3SA197

DAMY3WK3SA197

DBMY5W5SA197

DBMY9W4SA197

DBMY13W3SA197

DBMY17W2SA197

DBMY21W1SA197

DCMY8W8SA197

DCMY13W6SA197

DCMY17W5SA197

DCMY21WA4SA197

DCMY25W3SA197

DCMY27W2SA197

DDMY24W7SA197

DDMY36W4SA197

DDMY43W2SA197

DDMY47W1SA197

Combo D



Reader’s Resource

For contact cavity arrangements,

see page 223.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Clinch Nut

#4-40 UNC

DEME5W1SA197

DAME7W2SA197

DAME11W1SA197

DAME3W3SA197

DAME3WK3SA197

DBME5W5SA197

DBME9W4SA197

DBME13W3SA197

DBME17W2SA197

DBME21W1SA197

DCME8W8SA197

DCME13W6SA197

DCME17W5SA197

DCME21WA4SA197

DCME25W3SA197

DCME27W2SA197

DDME24W7SA197

DDME36W4SA197

DDME43W2SA197

DDME47W1SA197

For contacts with 30 microinches gold substitute K126 for A197. Example: DEM5W1SK126

For M3 clinch nuts substitute X for E. Example: DEMX5W1SA197

Keyed.

Engaging Face

A

C

B

Ø 3,05

(.120)

DD Configuration

5,69

(.224)

2,84

(.112)

K

E

D

L

10°

9,91 (.390)

MAX

2,84 (.112)

F

W

Dimensions

Shell Size

DE

DA

DB

DC

DD

A

±0,38

(.015)

30,81 (1.123)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

B

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

52,42 (2.064)

C

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

D

±0,13

(.005)

7,90 (.311)

10,74 (.423)

E

±0,38

(.015)

12,55 (.494)

15,37 (.605)

F

±0,25

(.010)

10,90 (.429)

W

±0,38

(.015)

6,94 (.273)

K

±0,318

(.0125)

1,206 (.0475)

L

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change

79
