LT1188CT datasheet, PDF - EEWORLD Datasheet

LT1188CT: DescriptionBuffer/Inverter Based Peripheral Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size645KB，7 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

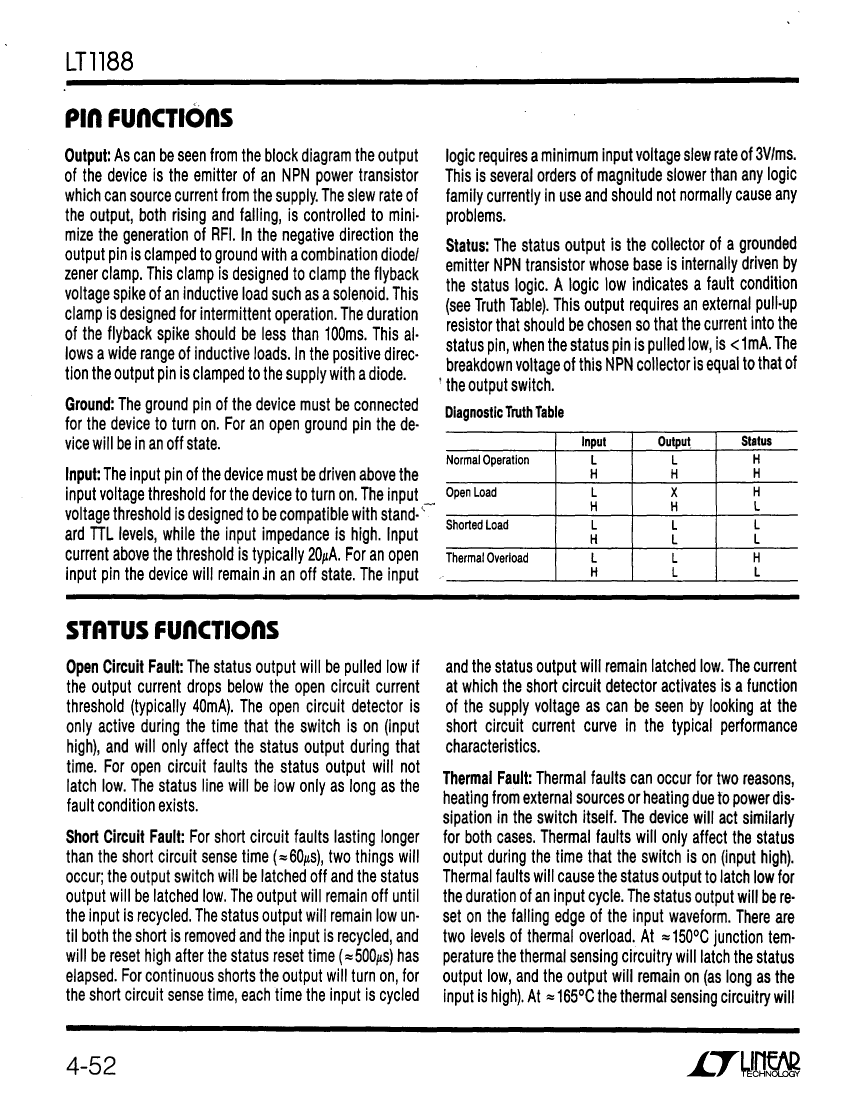

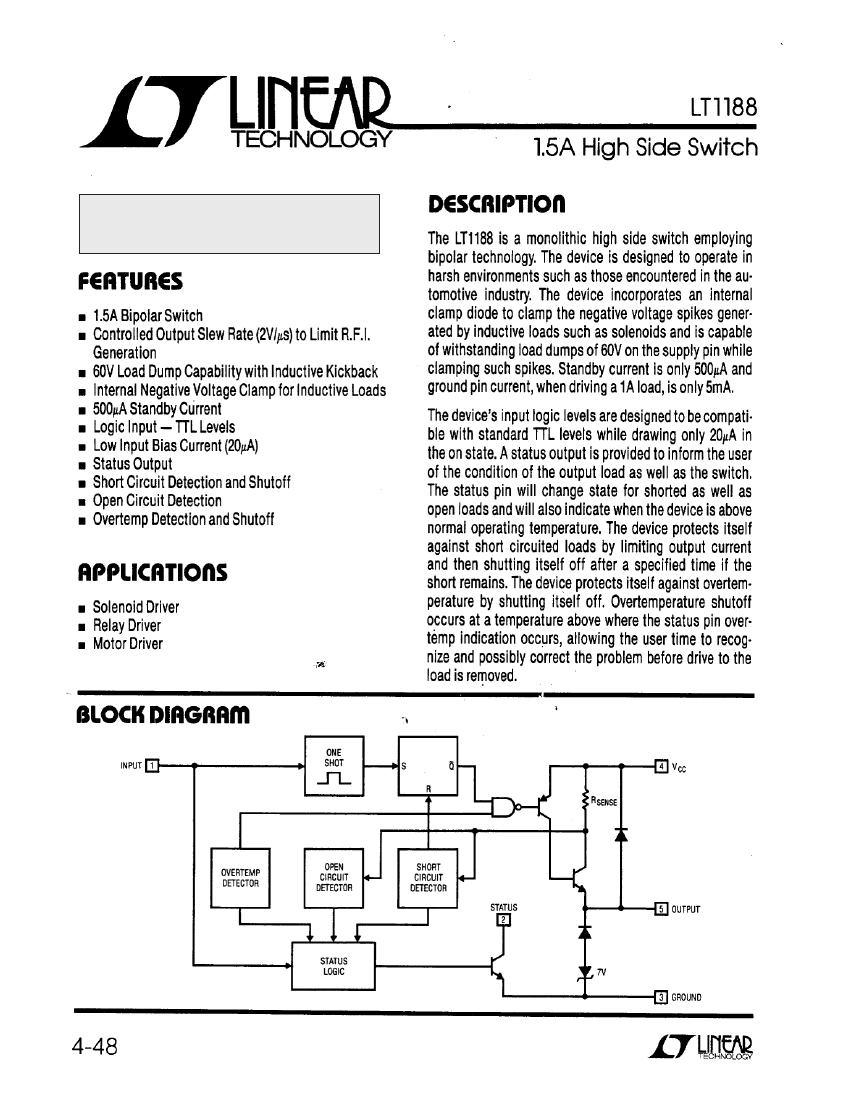

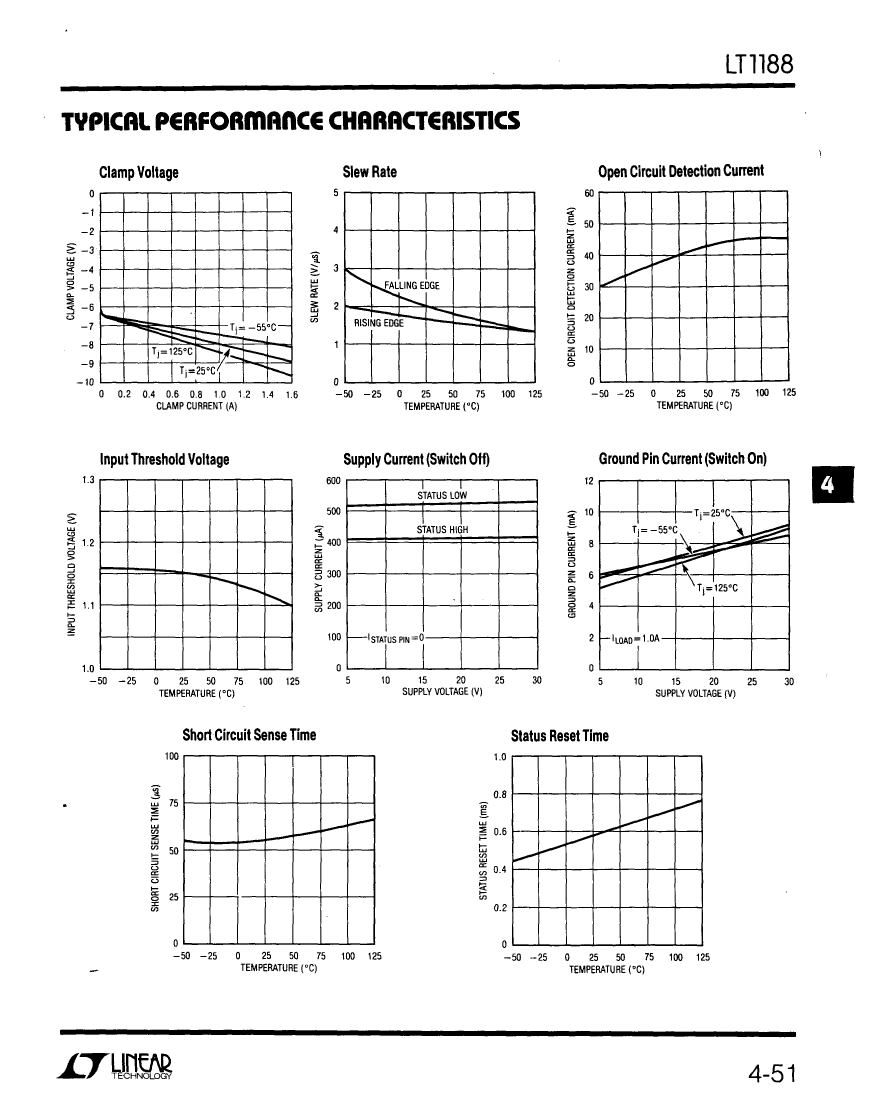

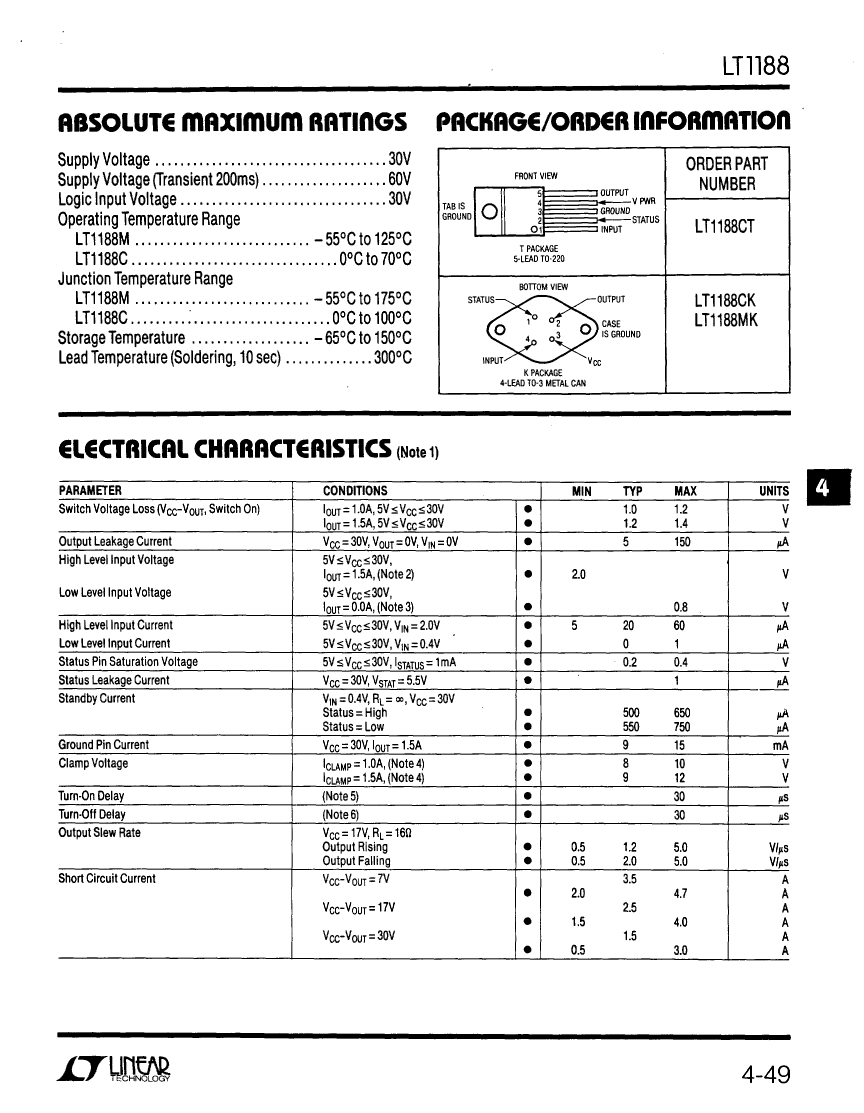

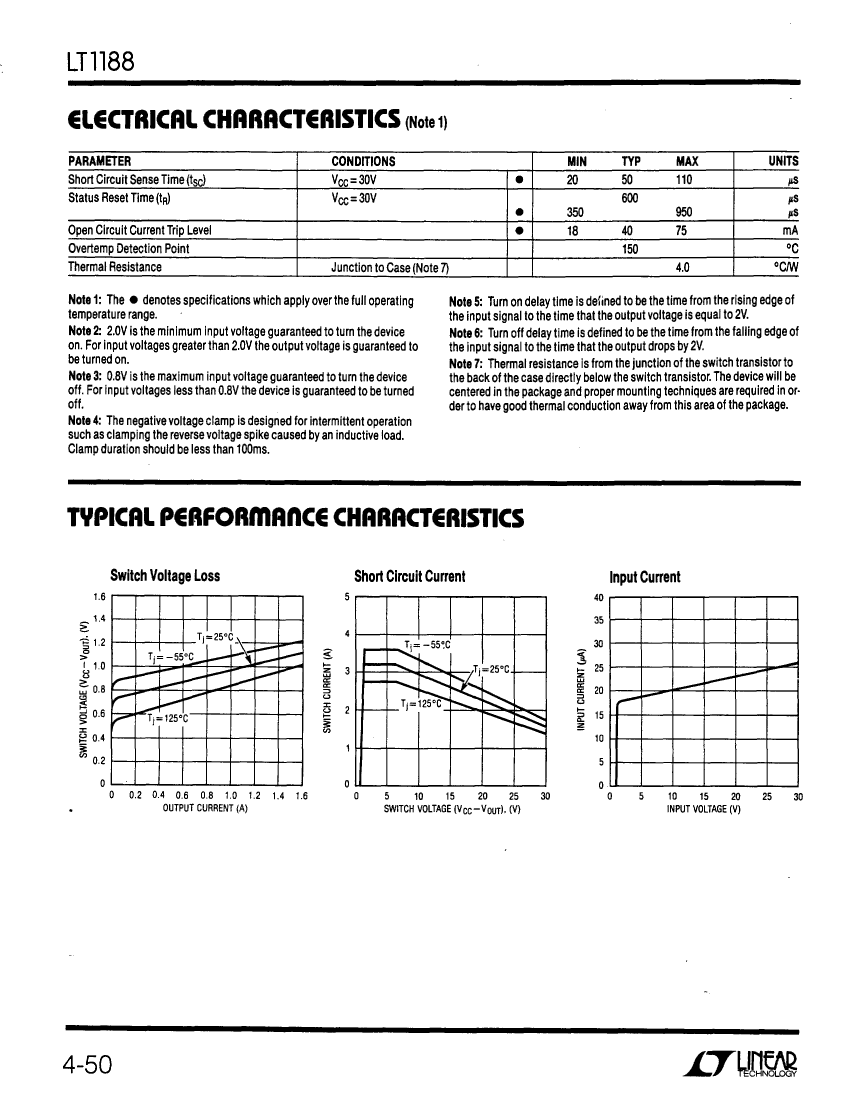

LT1188CT Overview

Buffer/Inverter Based Peripheral Driver

Parameter Name	Attribute value
Maker	ADI
package instruction	TO-3,
Reach Compliance Code	unknown
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-XSFM-T3
Number of functions	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
encapsulated code	TO-3
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum supply voltage	30 V
Minimum supply voltage	5 V
Nominal supply voltage	17 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	30 µs
connection time	30 µs

Contact Linear Technology for Potential Replacement

FOR INFORMATION PURPOSES ONLY

OBSOLETE:

	LT1188CT	LT1188MK	LT1188CK
Description	Buffer/Inverter Based Peripheral Driver	BUF OR INV BASED PRPHL DRVR	BUF OR INV BASED PRPHL DRVR
Maker	ADI	ADI	ADI
package instruction	TO-3,	TO-220,	TO-220,
Reach Compliance Code	unknown	unknown	unknown
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-XSFM-T3	O-MBFM-P4	O-MBFM-P4
Number of functions	1	1	1
Number of terminals	5	3	3
Maximum operating temperature	70 °C	125 °C	70 °C
Output polarity	TRUE	TRUE	TRUE
encapsulated code	TO-3	TO-220	TO-220
Package shape	RECTANGULAR	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum supply voltage	30 V	30 V	30 V
Minimum supply voltage	5 V	5 V	5 V
Nominal supply voltage	17 V	17 V	17 V
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	PIN/PEG	PIN/PEG
Terminal location	SINGLE	BOTTOM	BOTTOM
Disconnect time	30 µs	30 µs	30 µs
connection time	30 µs	30 µs	30 µs
Package body material	-	METAL	METAL
