IRFN054R4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRFN054R4

Preview

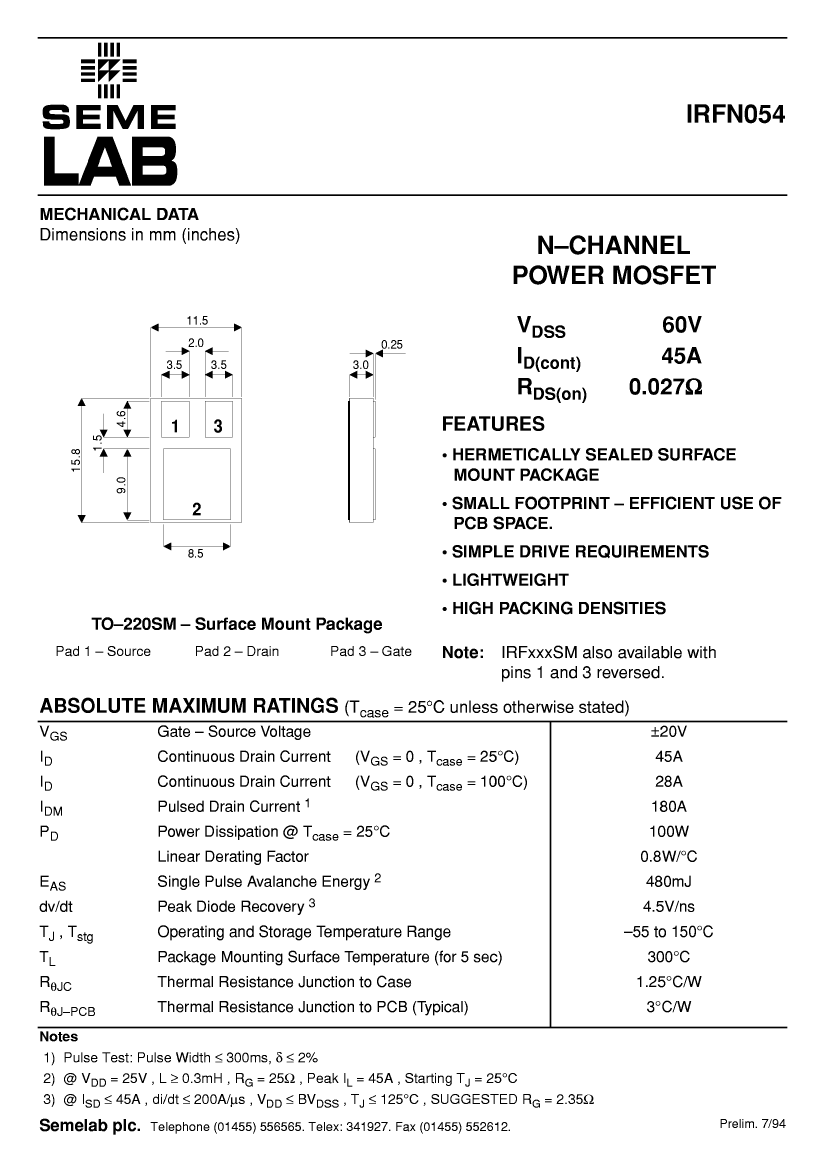

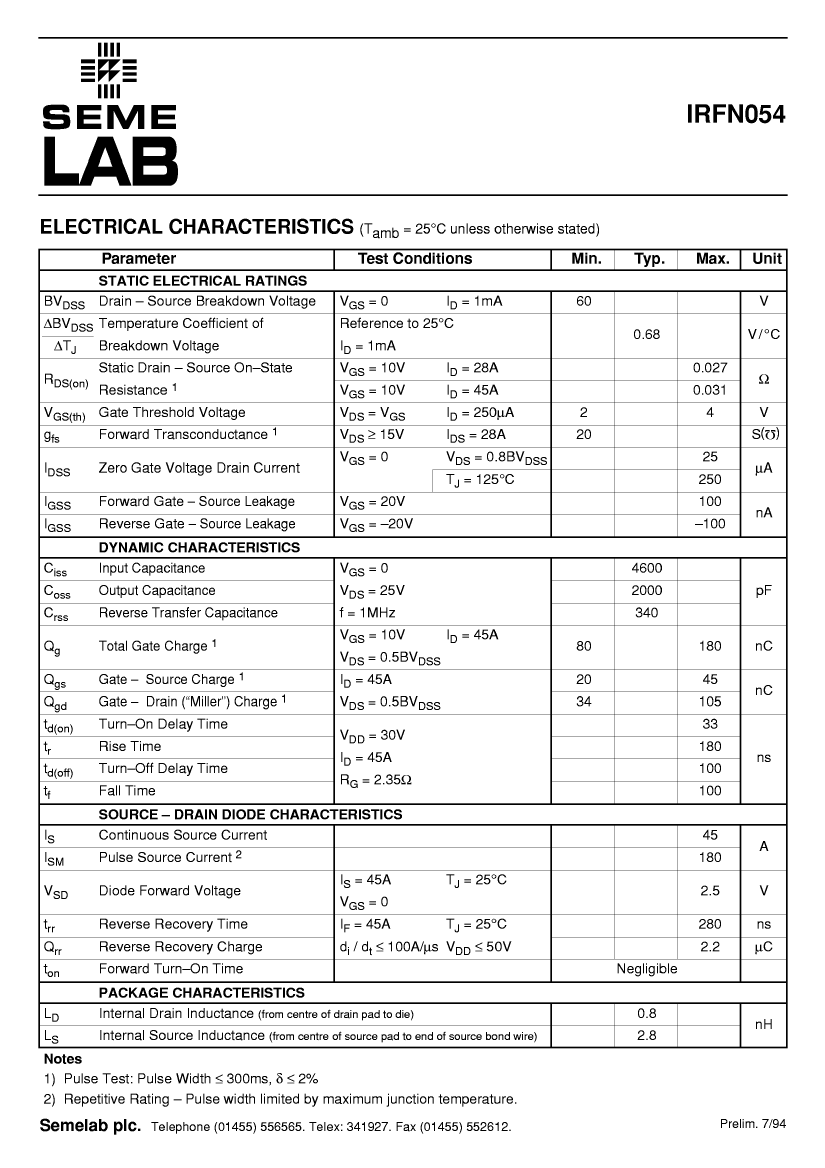

IRFN054R4: DescriptionPower Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HERMETIC SEALED, TO-220SM, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size71KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

IRFN054R4 Overview

Power Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HERMETIC SEALED, TO-220SM, 3 PIN

IRFN054R4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	CHIP CARRIER, R-XBCC-N3
Reach Compliance Code	compliant
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	480 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (ID)	45 A
Maximum drain-source on-resistance	0.031 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-XBCC-N3
JESD-609 code	e4
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	180 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	GOLD
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

IRFN054R4 Related Products

	IRFN054R4	IRFN054-JQR-BR4	IRFN054-JQR-B	IRFN054	IRFN054SM
Description	Power Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HERMETIC SEALED, TO-220SM, 3 PIN	Power Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET,	Power Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HERMETIC SEALED, TO-220SM, 3 PIN	Power Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HERMETIC SEALED, TO-220SM, 3 PIN	Power Field-Effect Transistor, 45A I(D), 60V, 0.031ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, HERMETIC SEALED, SMD1, 3 PIN
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
package instruction	CHIP CARRIER, R-XBCC-N3	UNCASED CHIP, R-XUUC-N3	CHIP CARRIER, R-XBCC-N3	CHIP CARRIER, R-XBCC-N3	CHIP CARRIER, R-CBCC-N3
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	480 mJ	480 mJ	480 mJ	480 mJ	480 mJ
Shell connection	DRAIN	DRAIN	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V	60 V	60 V	60 V	60 V
Maximum drain current (ID)	45 A	45 A	45 A	45 A	45 A
Maximum drain-source on-resistance	0.031 Ω	0.031 Ω	0.031 Ω	0.031 Ω	0.031 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-XBCC-N3	R-XUUC-N3	R-XBCC-N3	R-XBCC-N3	R-CBCC-N3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	UNCASED CHIP	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	180 A	180 A	180 A	180 A	180 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	BOTTOM	UPPER	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	-
Maximum operating temperature	150 °C	-	150 °C	150 °C	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
